Transmission Position Sensor/Switch, CVT
Transmission Position Sensor/Switch, CVT

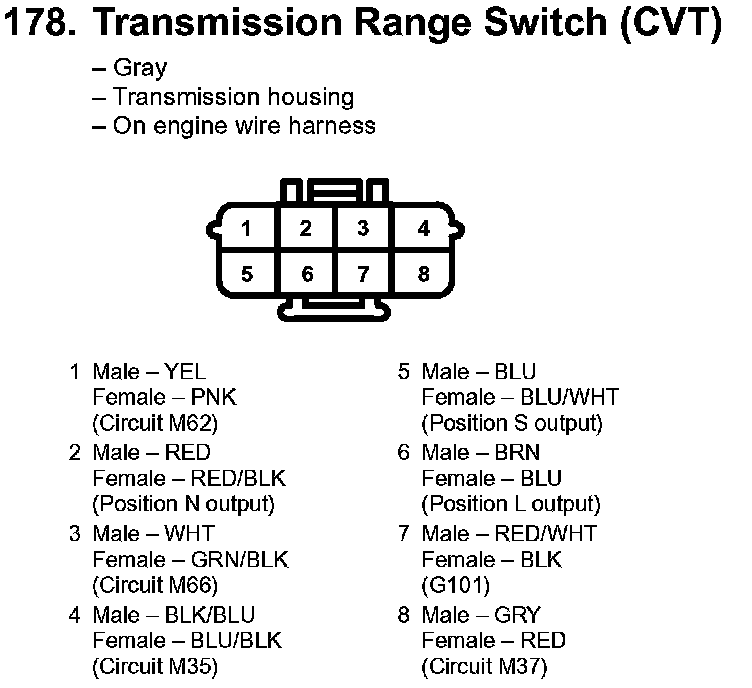

178. Transmission Range Switch (CVT):
