Wheel Speed Sensor
Wheel Speed Sensor

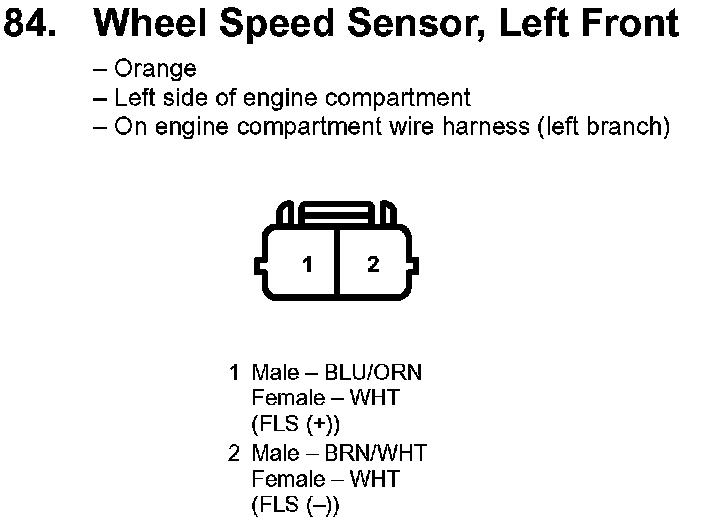

84. Wheel Speed Sensor, Left Front:

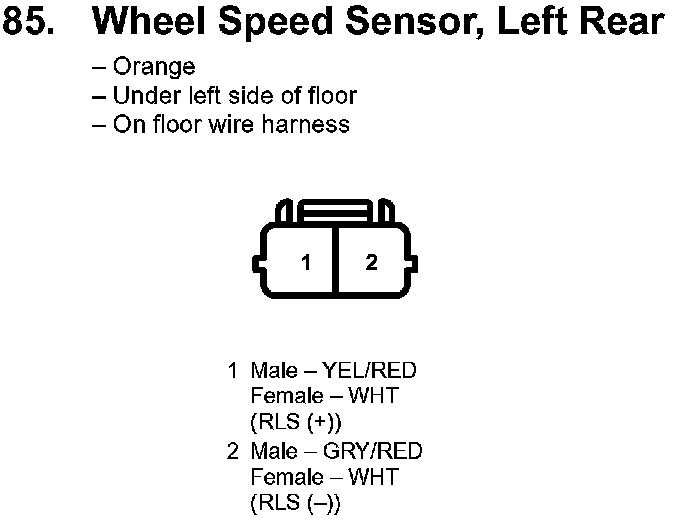

85. Wheel Speed Sensor, Left Rear:
86. Wheel Speed Sensor, Right Front:

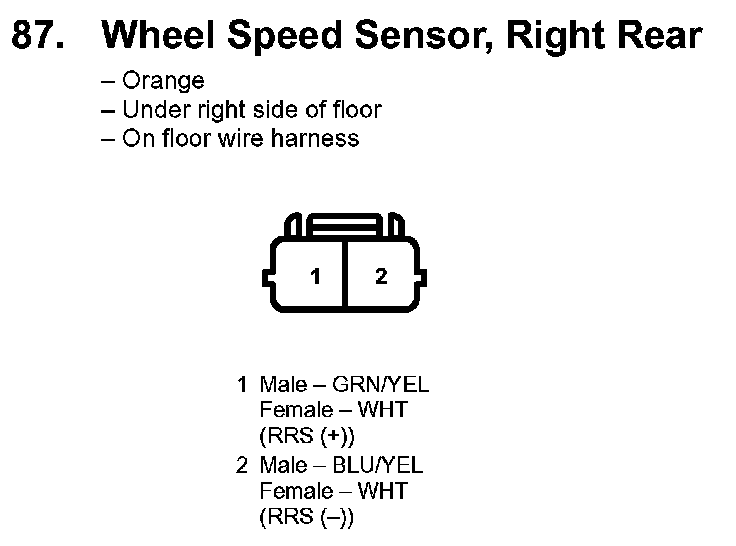

87. Wheel Speed Sensor, Right Rear:
