Home >> Honda >> 2003 >> Civic L4-1.3L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Wiper Motor

Wiper Motor

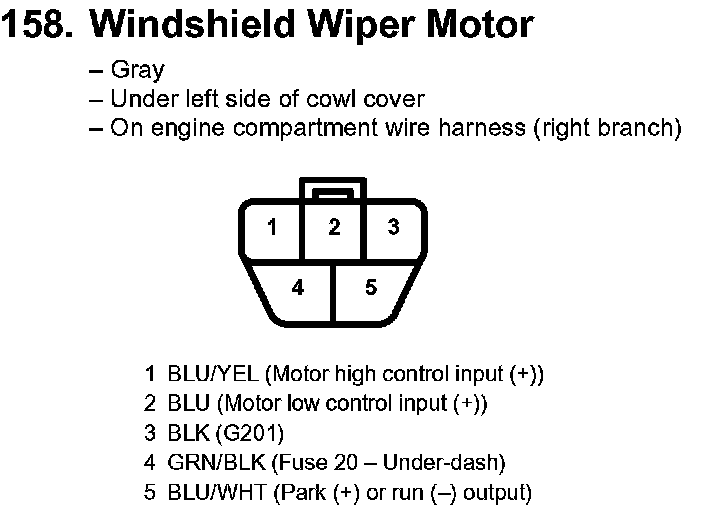

158. Windshield Wiper Motor:
