Dashboard Wire Harness A (Left Branch)

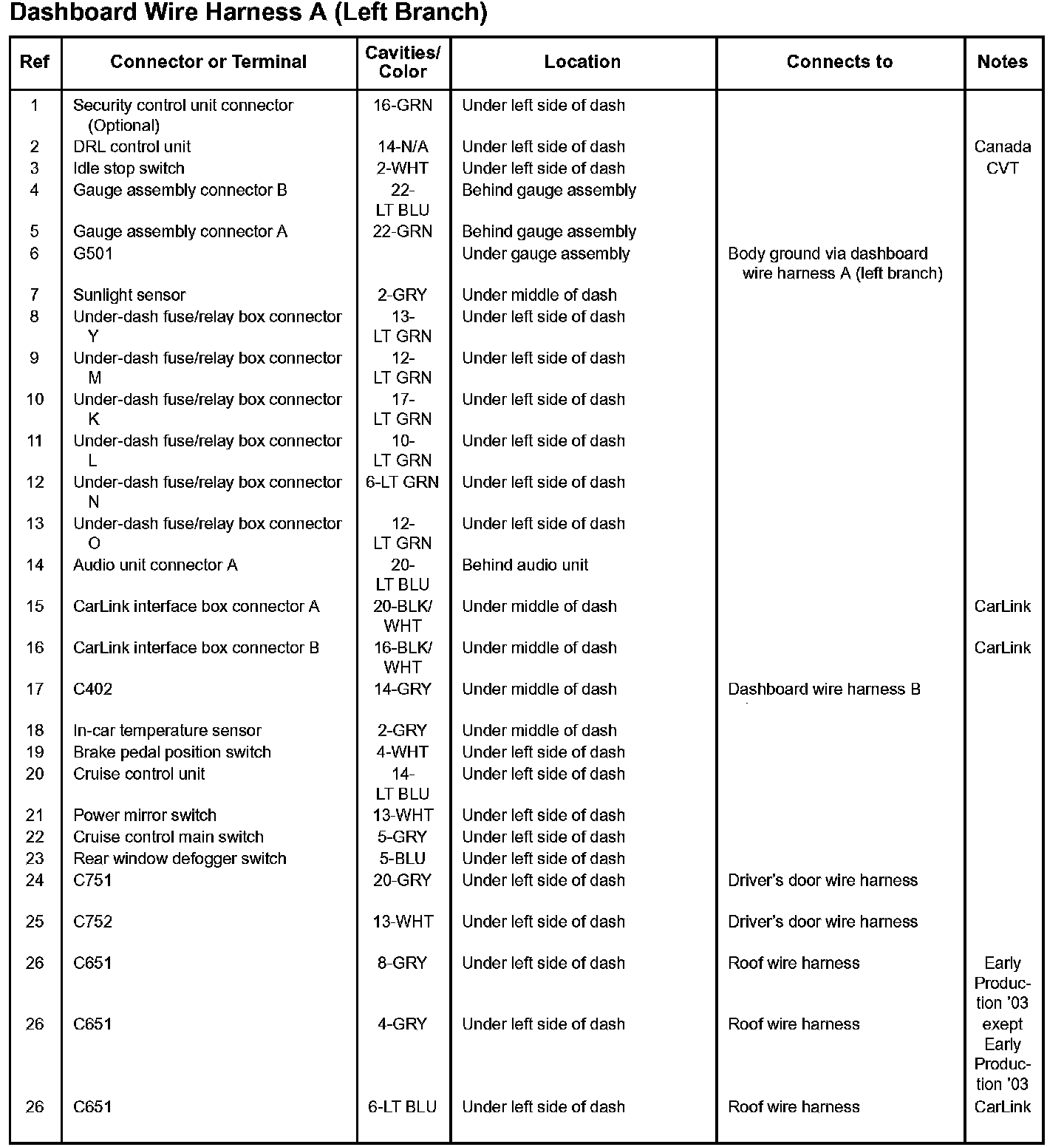

Dashboard Wire Harness A (Left Branch):

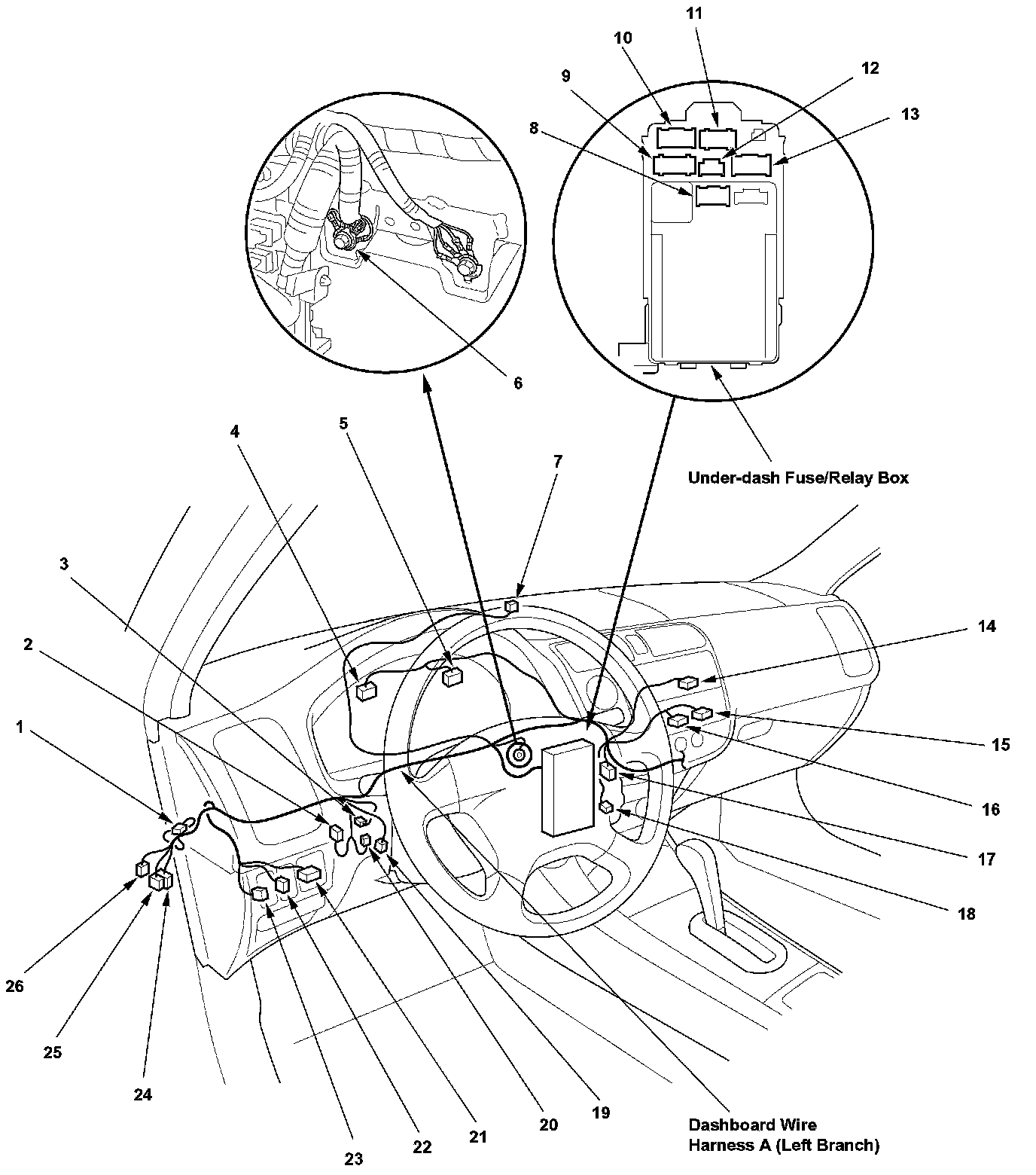

Harness Location View:
