Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
2003
>>
Civic L4-1.3L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
Connector ID By Location on harness
>>
Dashboard Wire Harness B
Dashboard Wire Harness B

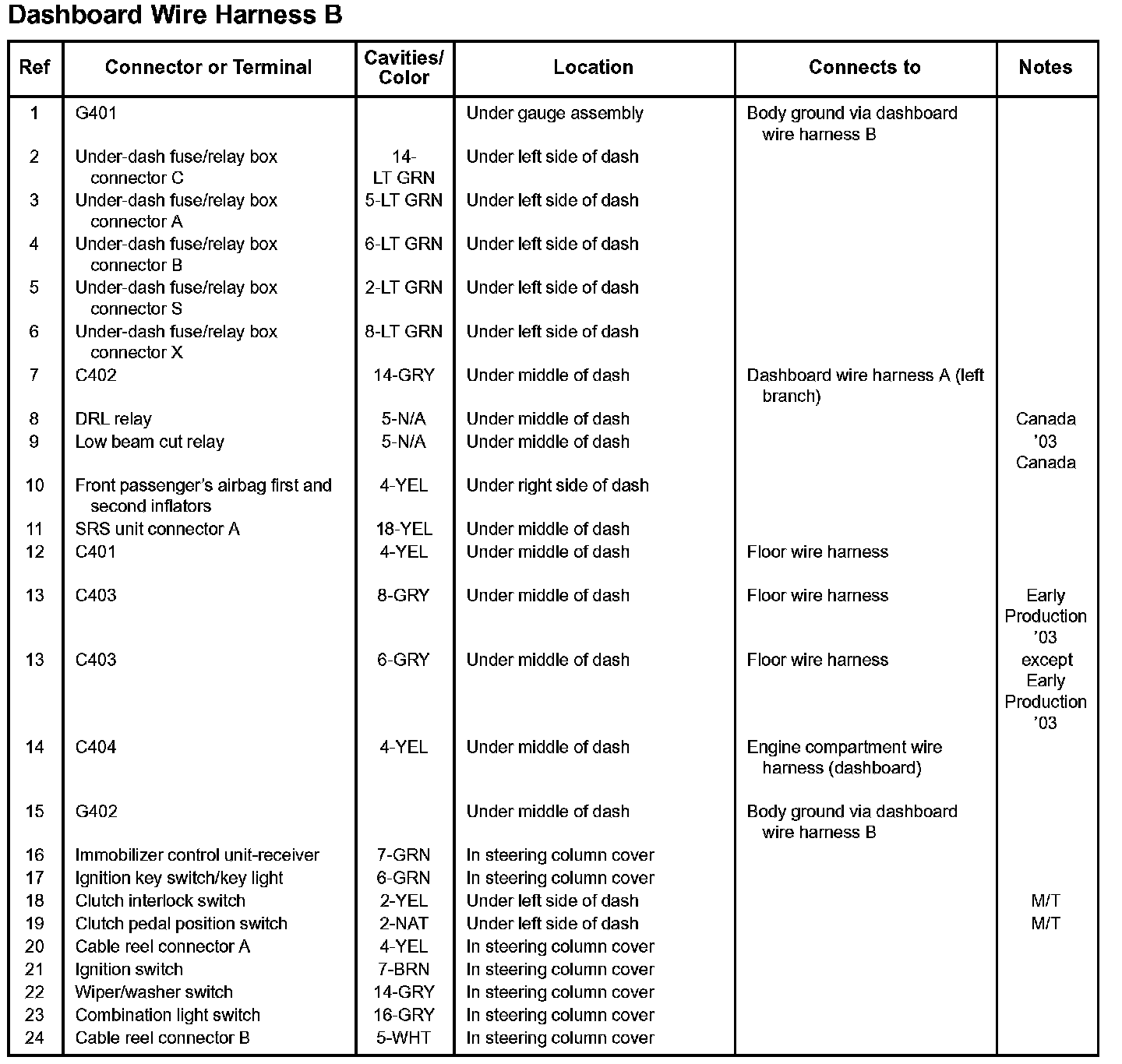

Dashboard Wire Harness B:

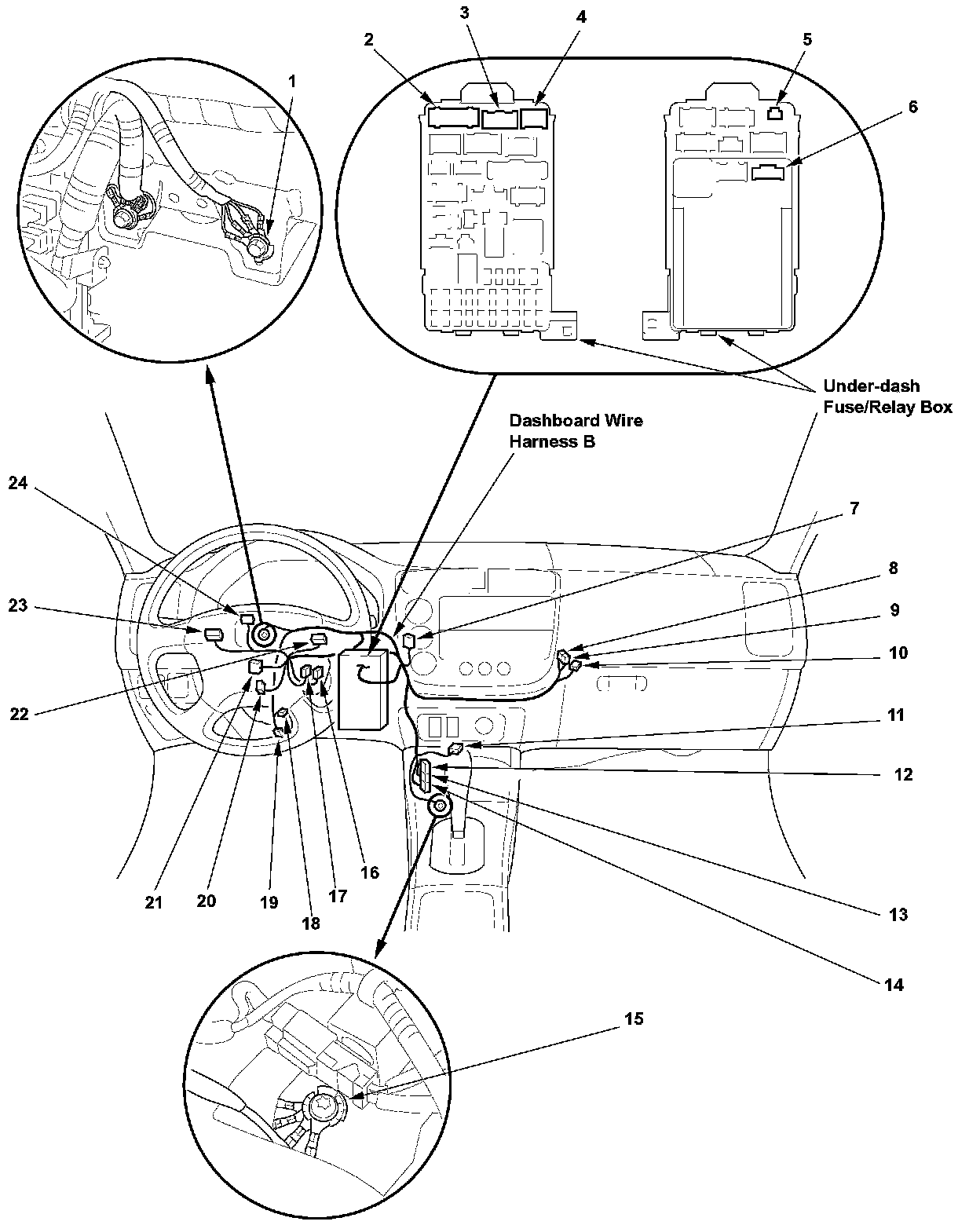

Harness Location View:
