Diagram Set 10 (Power Distribution)

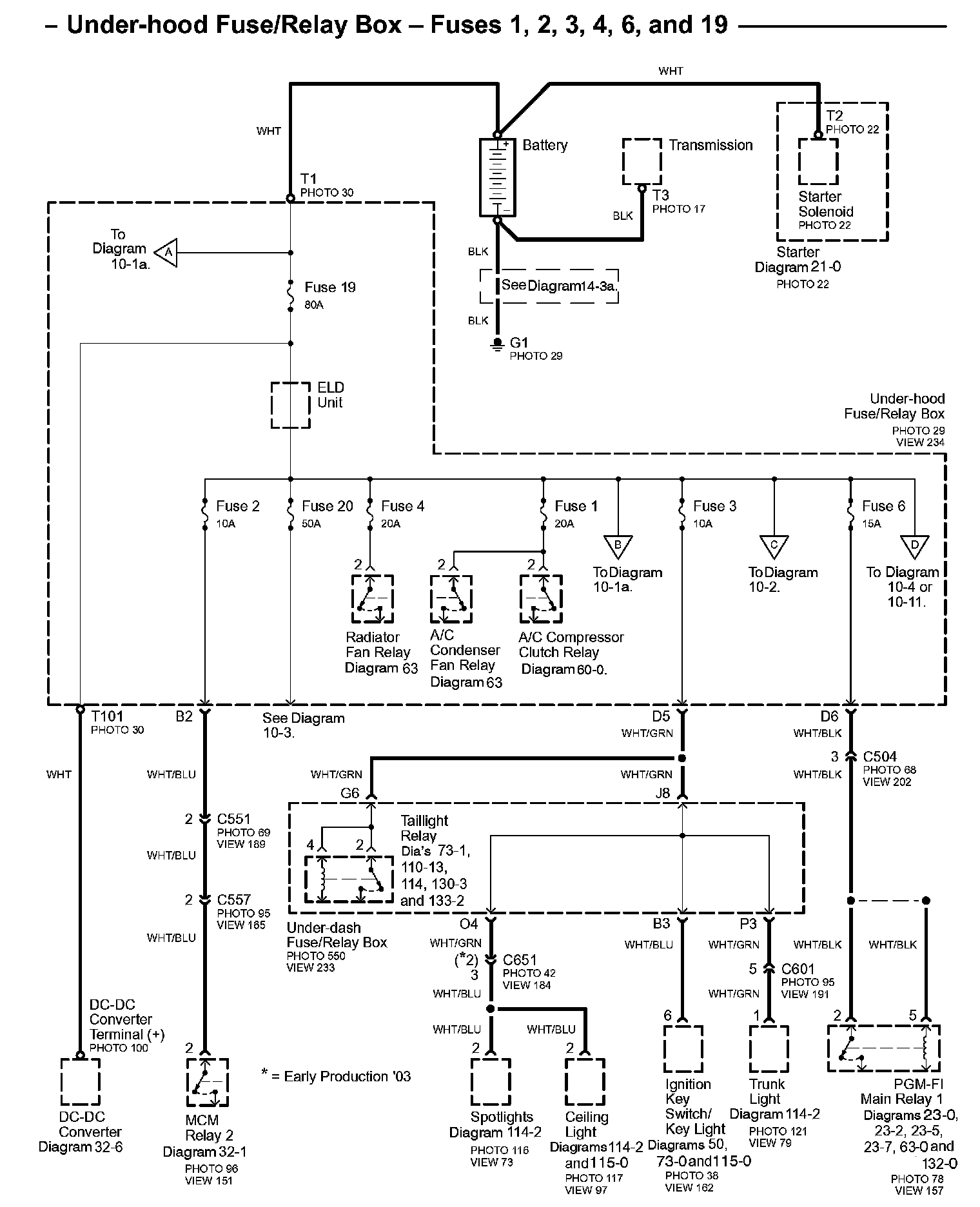

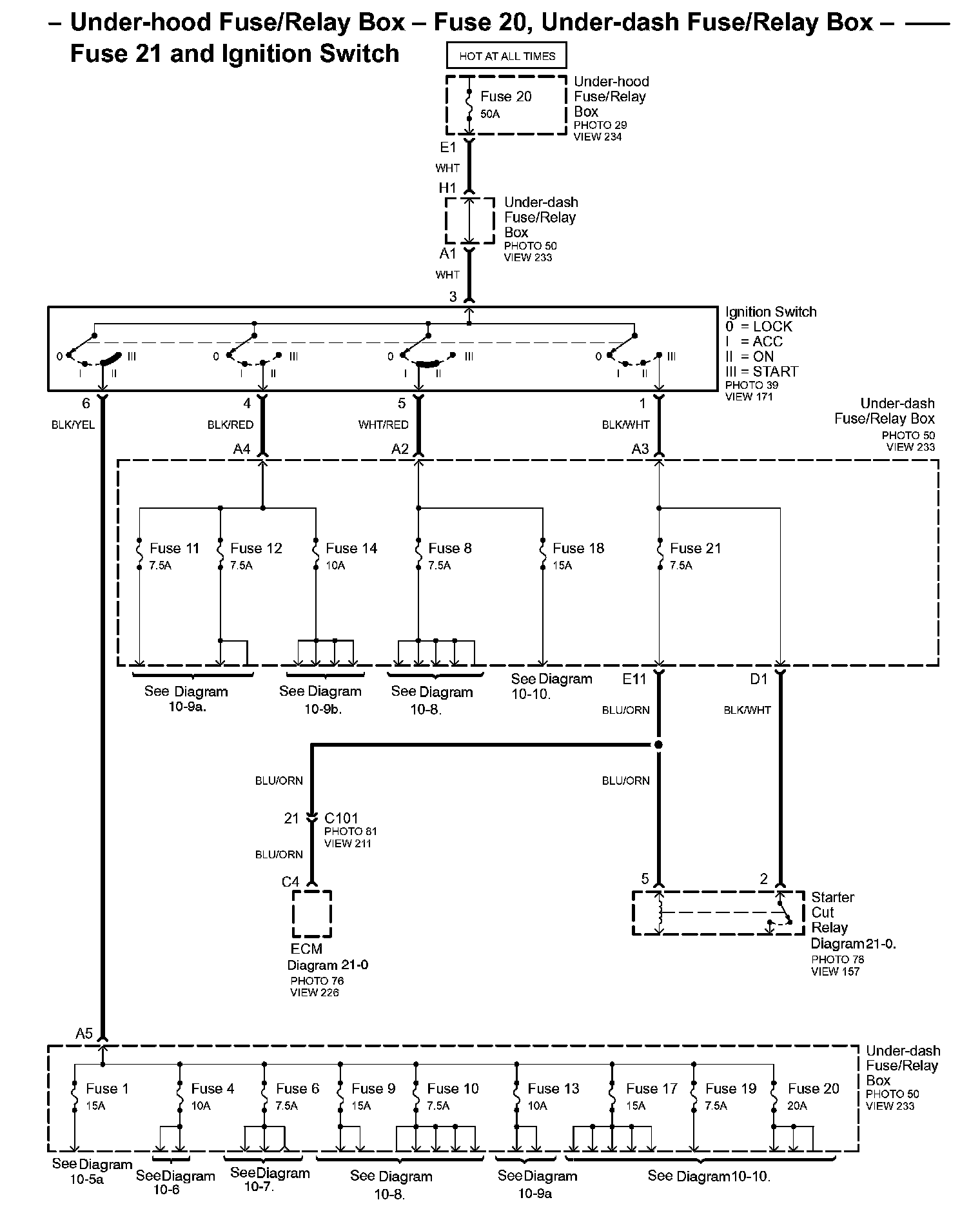

Diagram 10-0:

Diagram 10-1a (Fuses 5, 7, 8, 10 And 18):

Diagram 10-1b (Fuse 9):

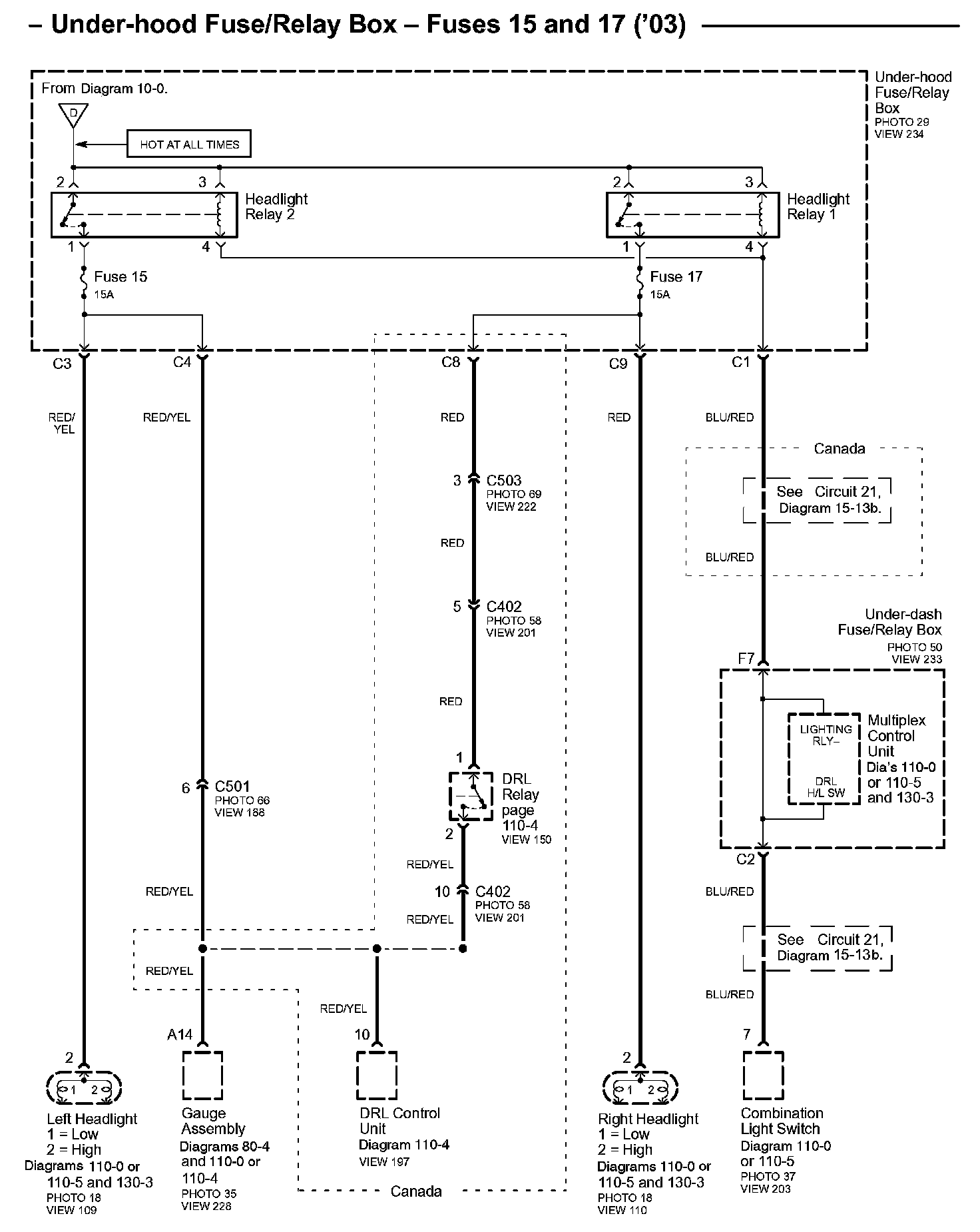

Diagram 10-2:

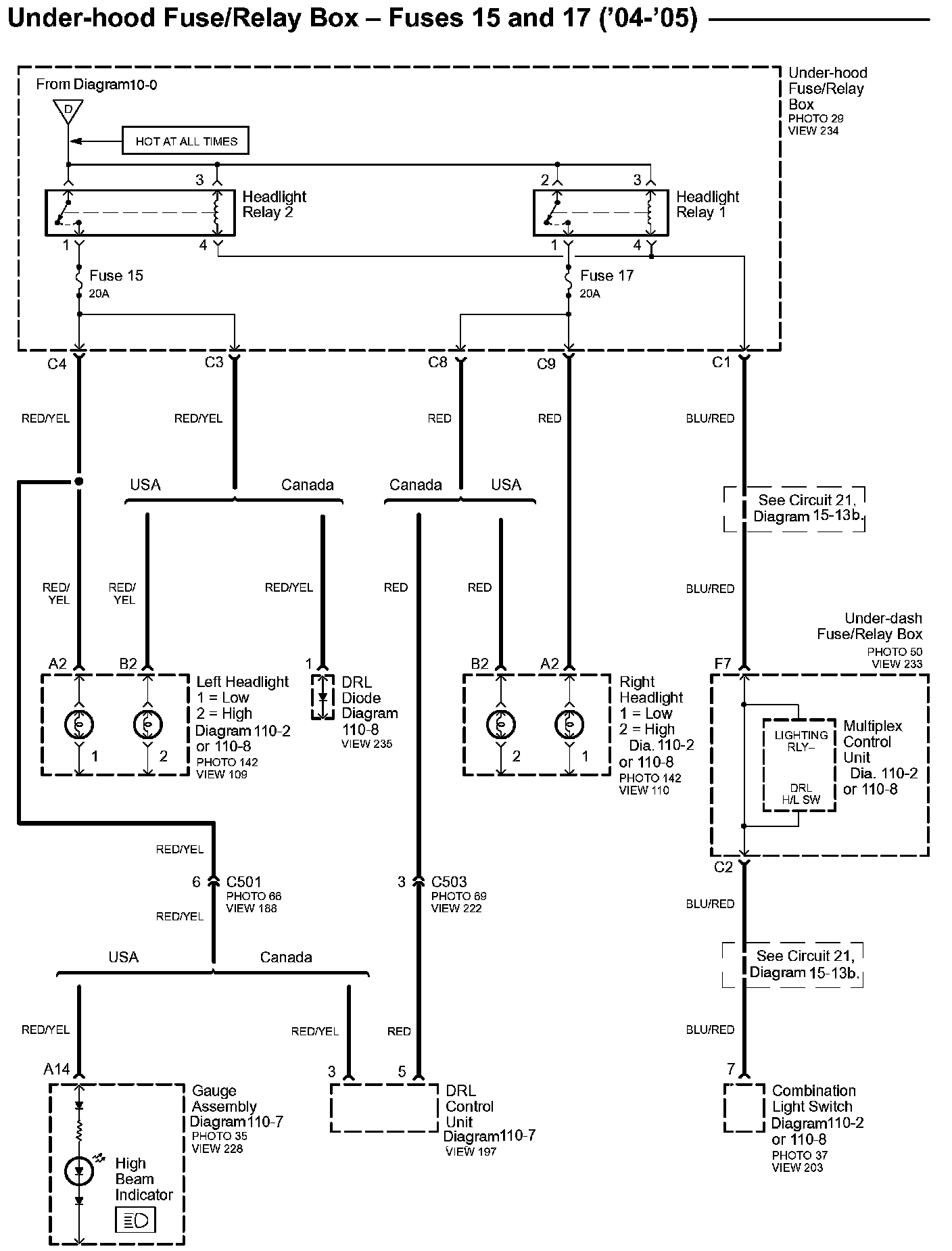

Diagram 10-3:

Diagram 10-4:

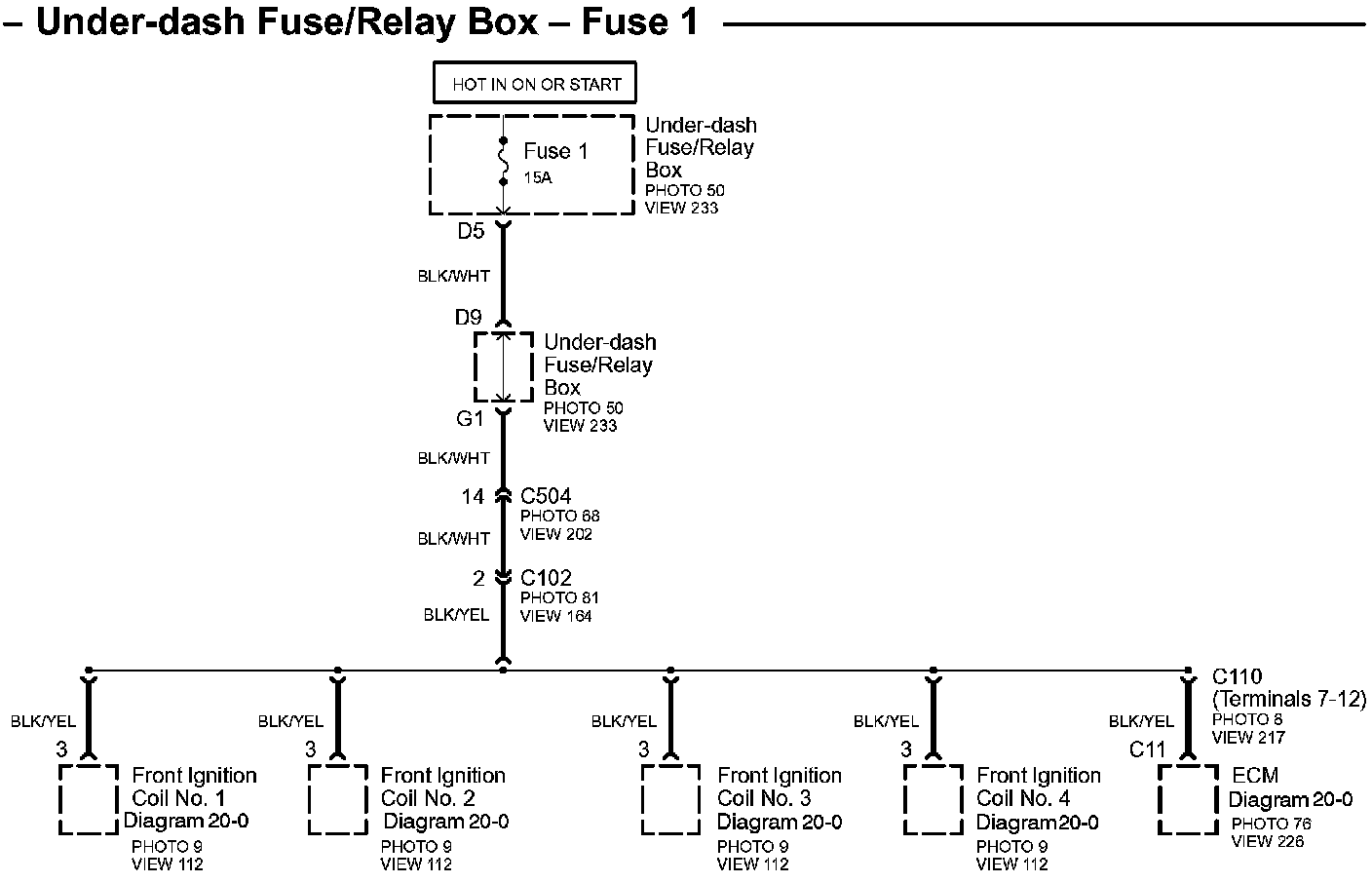

Diagram 10-5a (Fuse 1):

Diagram 10-5b (Fuses 2, 3, 15 And 16):

Diagram 10-6:

Diagram 10-7:

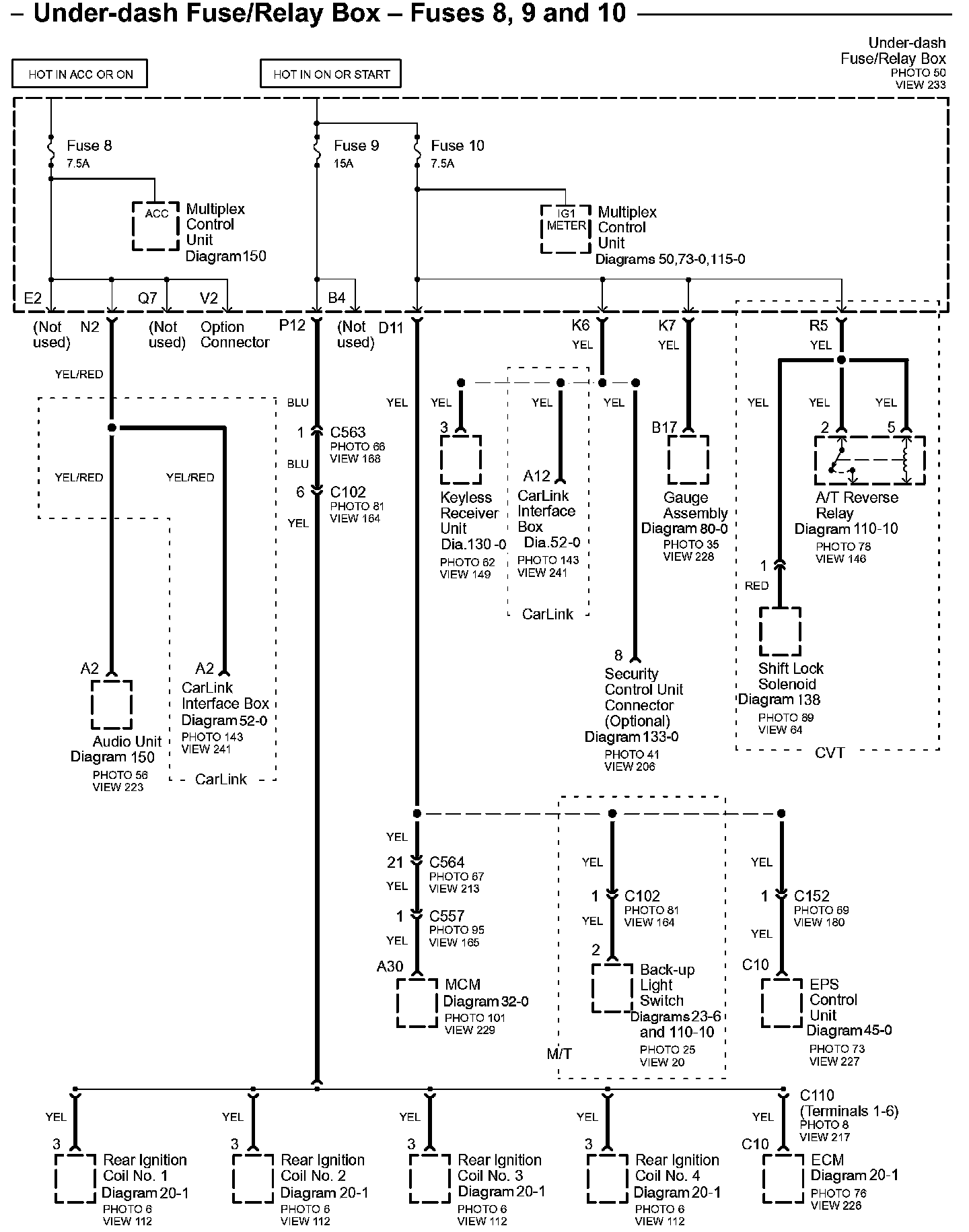

Diagram 10-8:

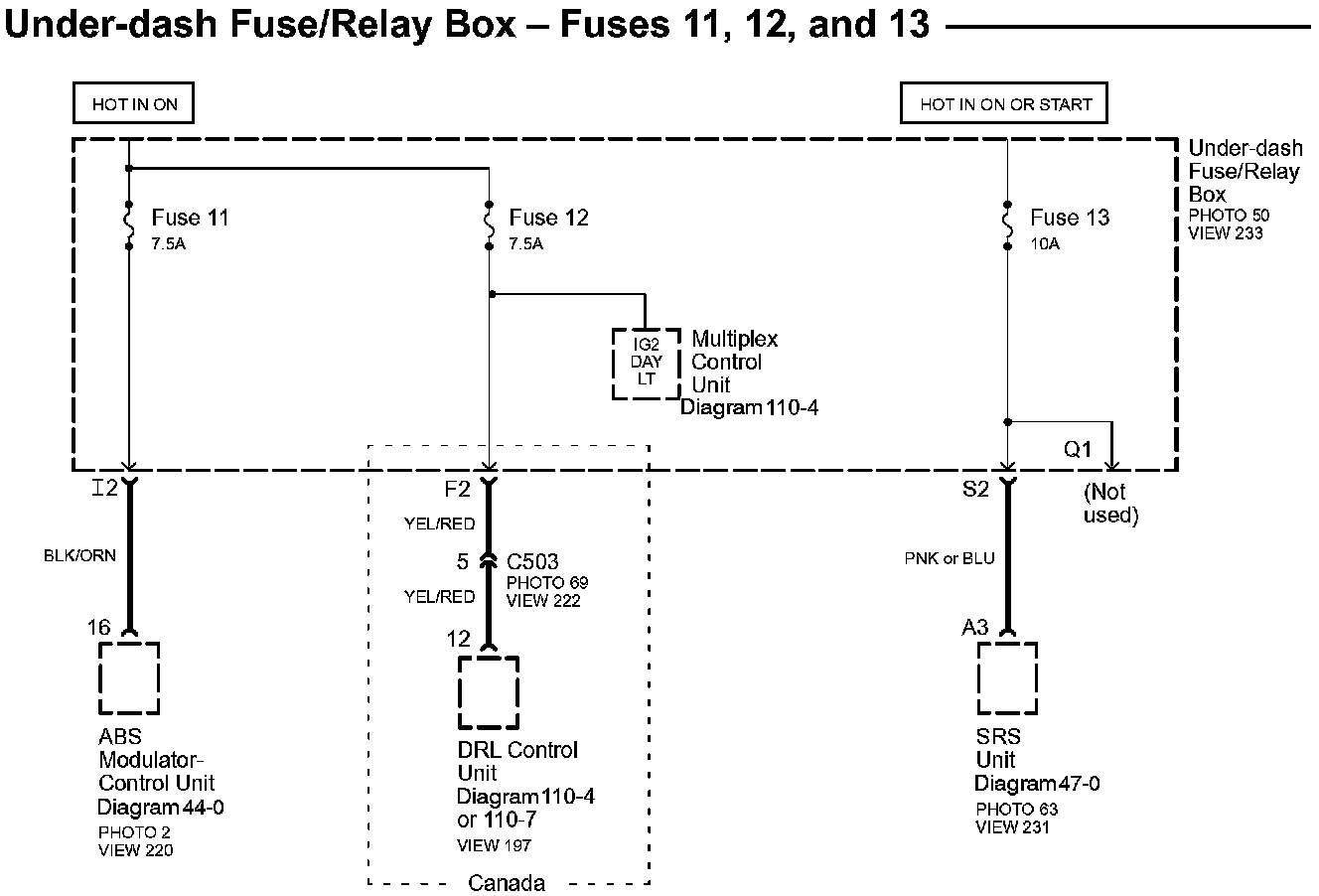

Diagram 10-9a (Fuses 11, 12 And 13):

Diagram 10-9b (Fuse 14):

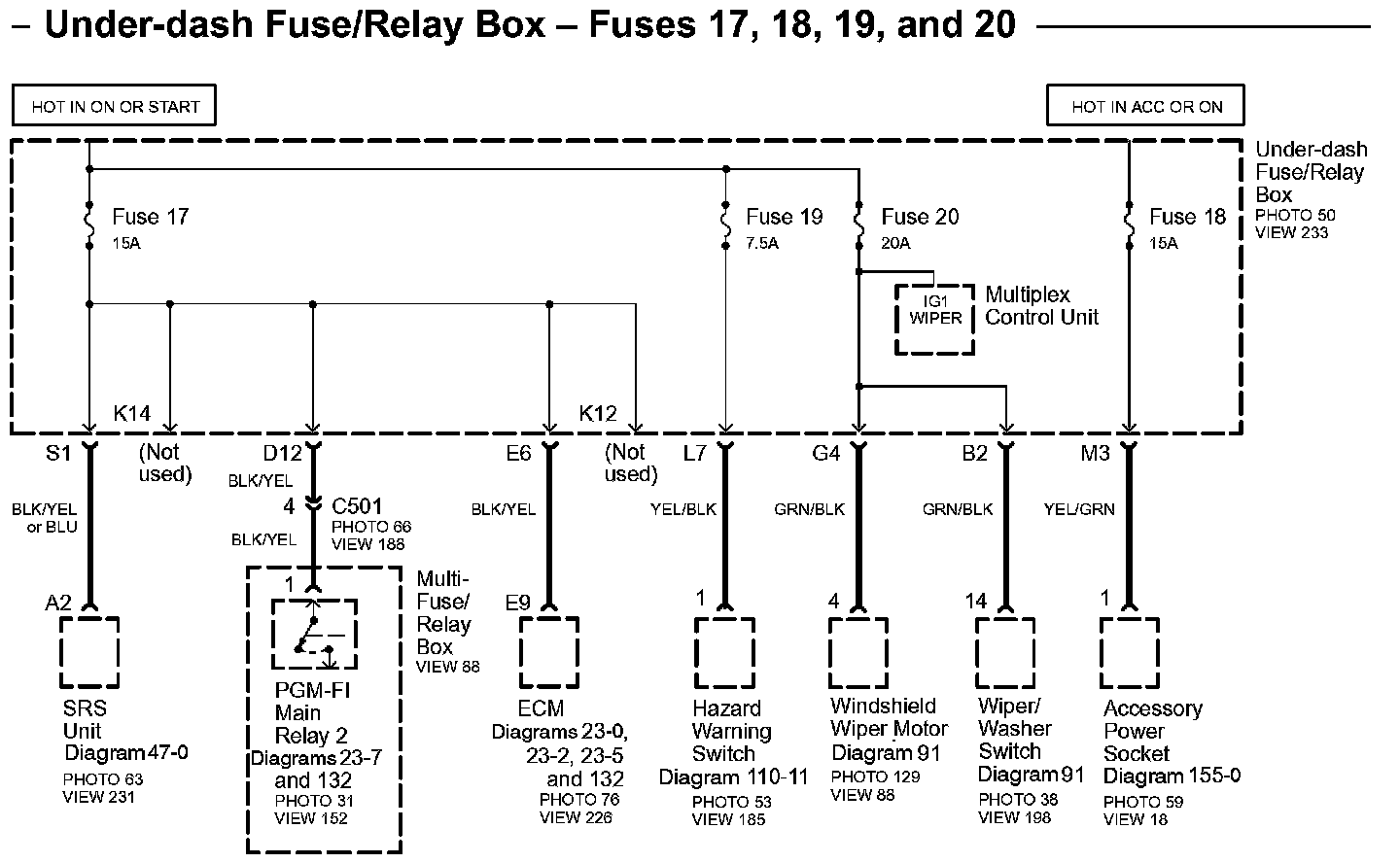

Diagram 10-10:

Diagram 10-11:
