Diagram Set 110 (Exterior Lights)
Diagram Set 110 (Exterior Lights)

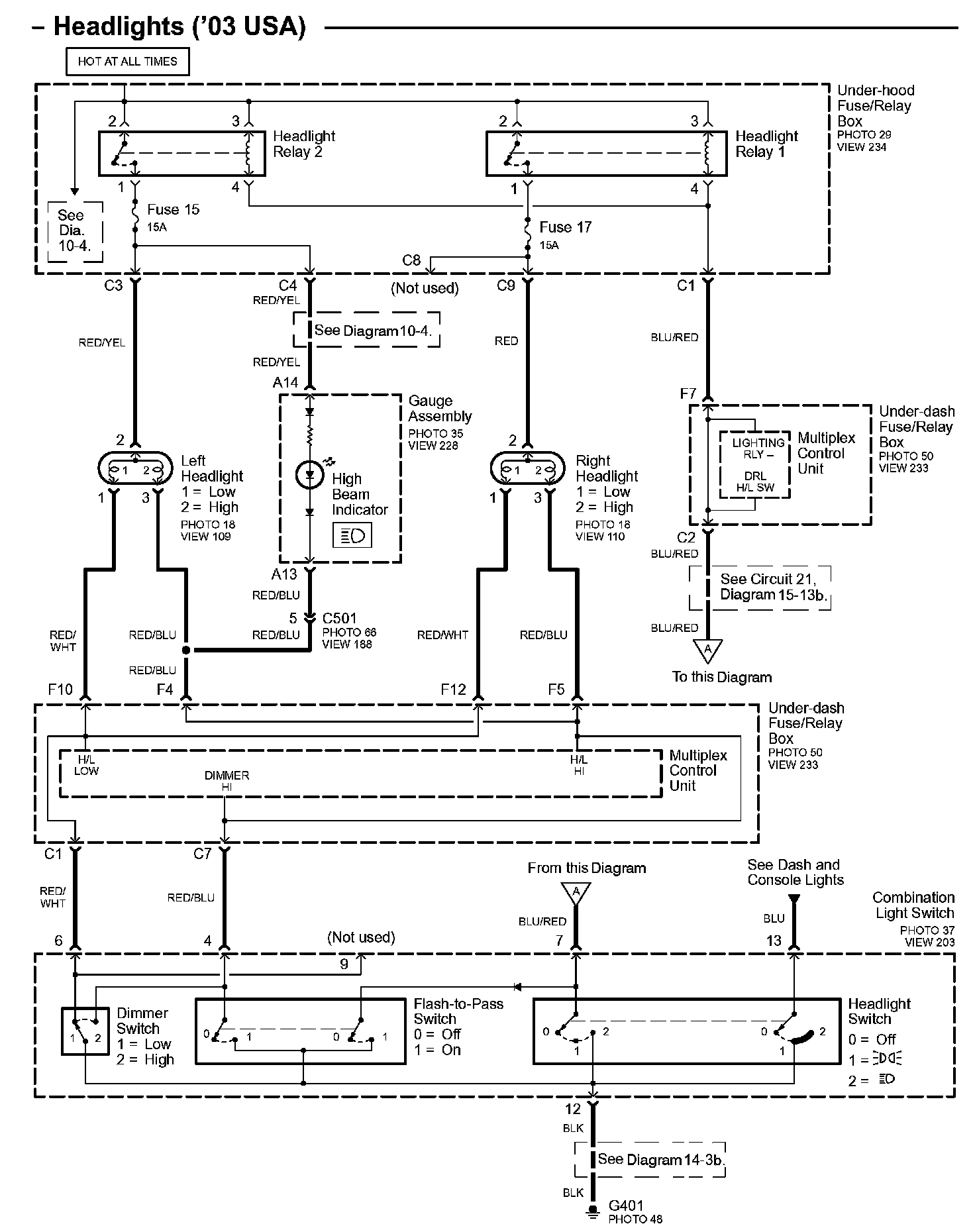

Diagram 110-0 ('03 USA):

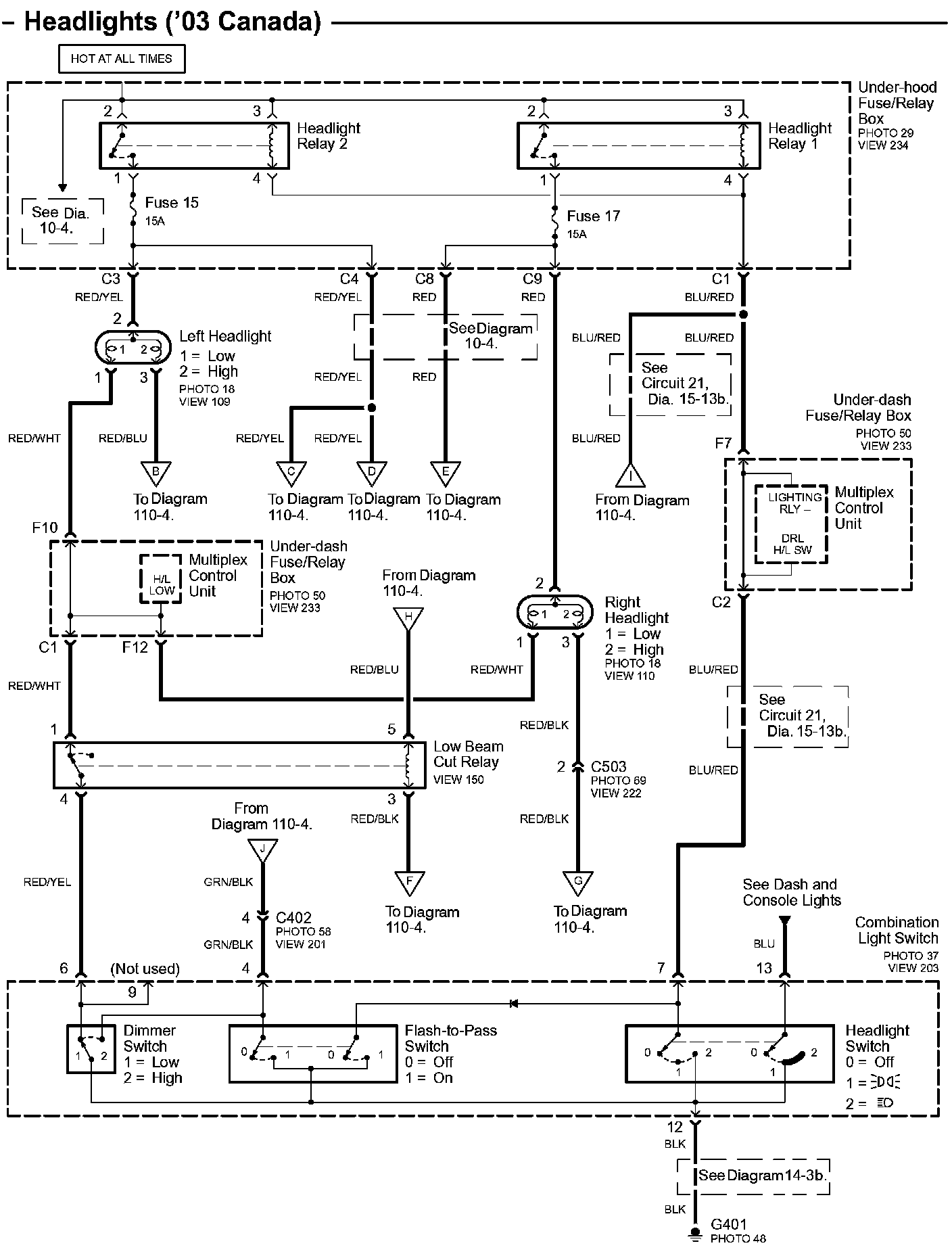

Diagram 110-4 ('03 Canada):
Diagram 110-5 ('03 Canada):
Diagram 110-10:
Diagram 110-11:
Diagram 110-12:
Diagram 110-13:
Diagram 110-14:
