Diagram Set 32 (IMA System)

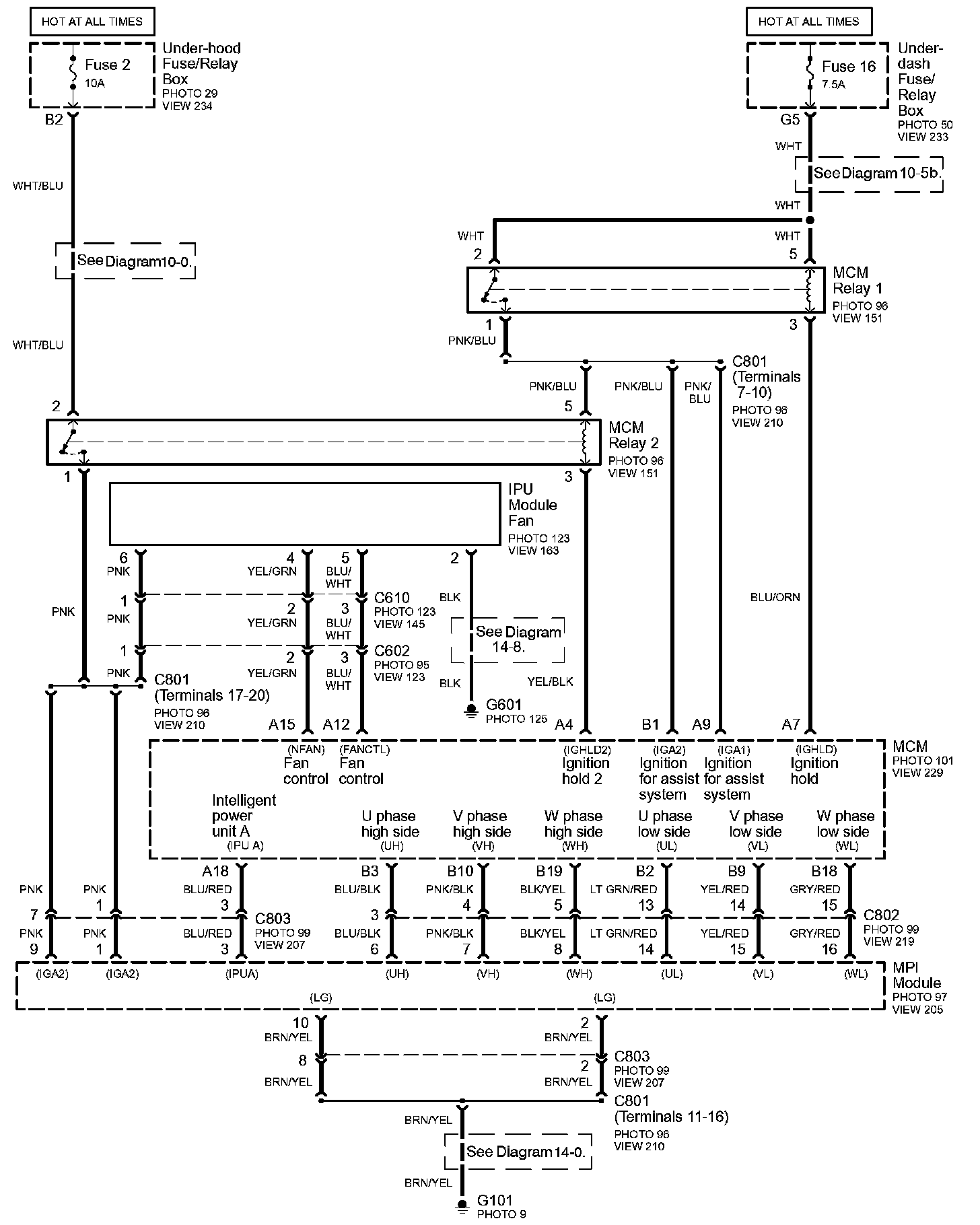

Diagram 32-0:

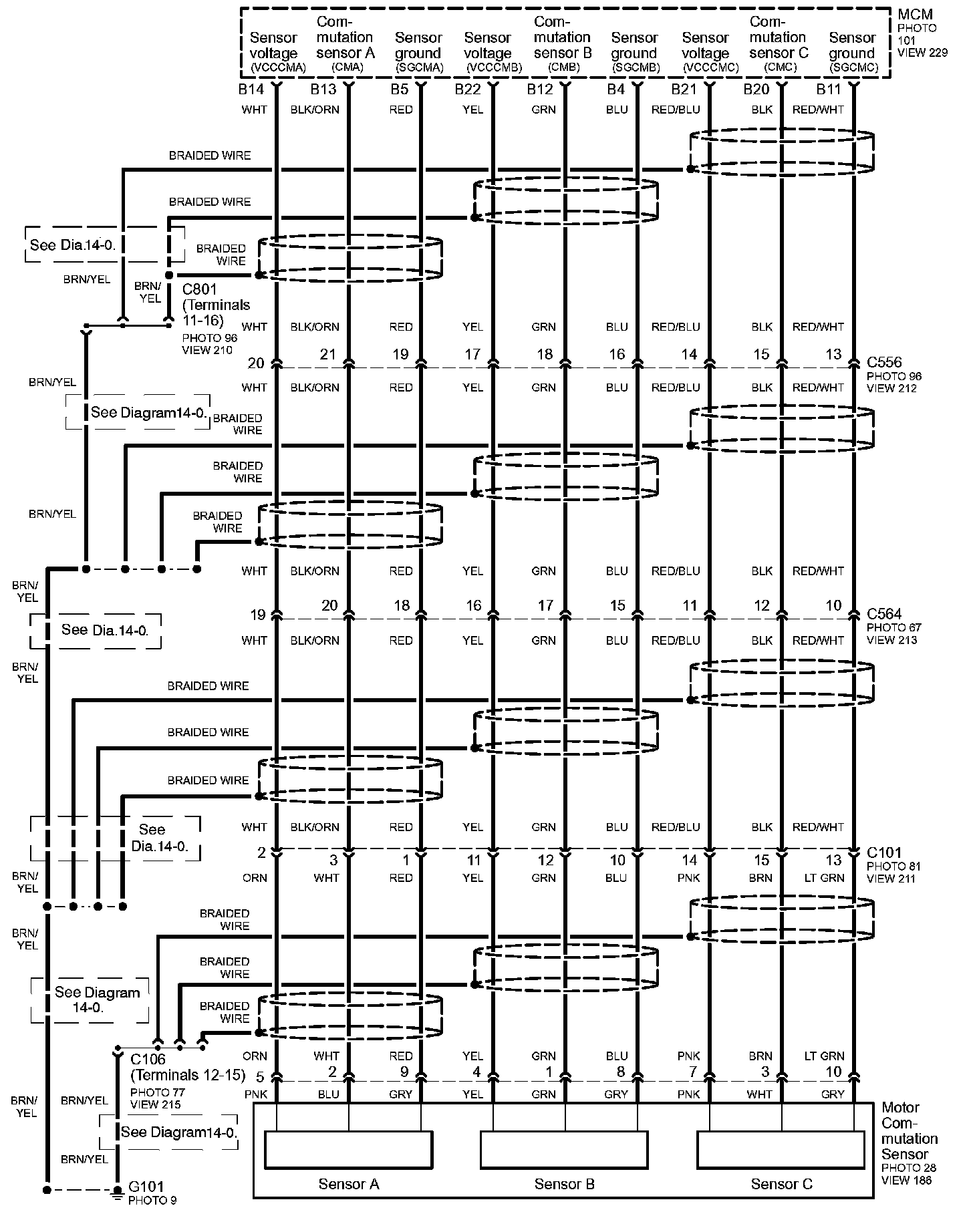

Diagram 32-1:

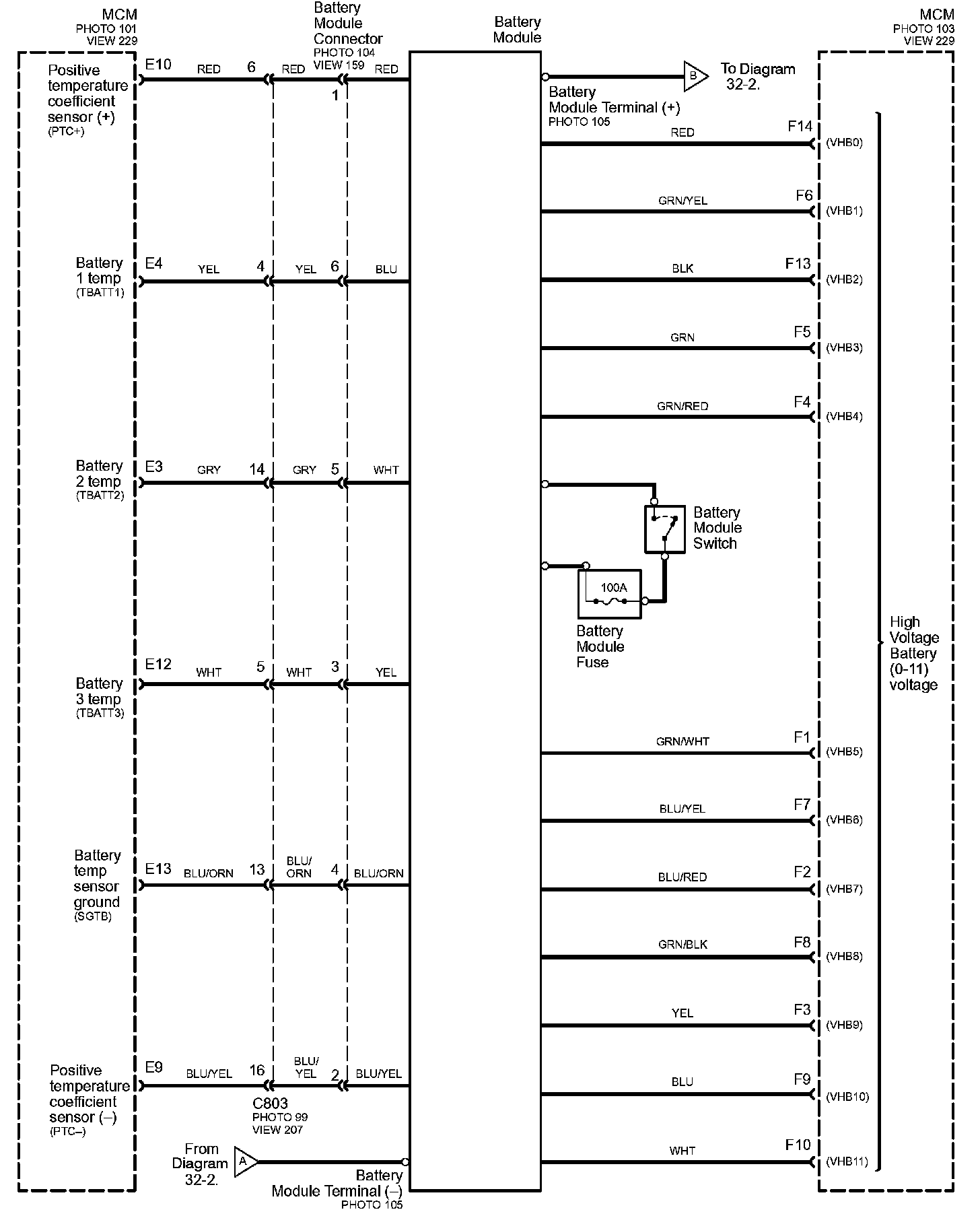

Diagram 32-2:



Diagram 32-3:



Diagram 32-4:



Diagram 32-5:



Diagram 32-6:
