Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
2003
>>
Civic L4-1.3L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>

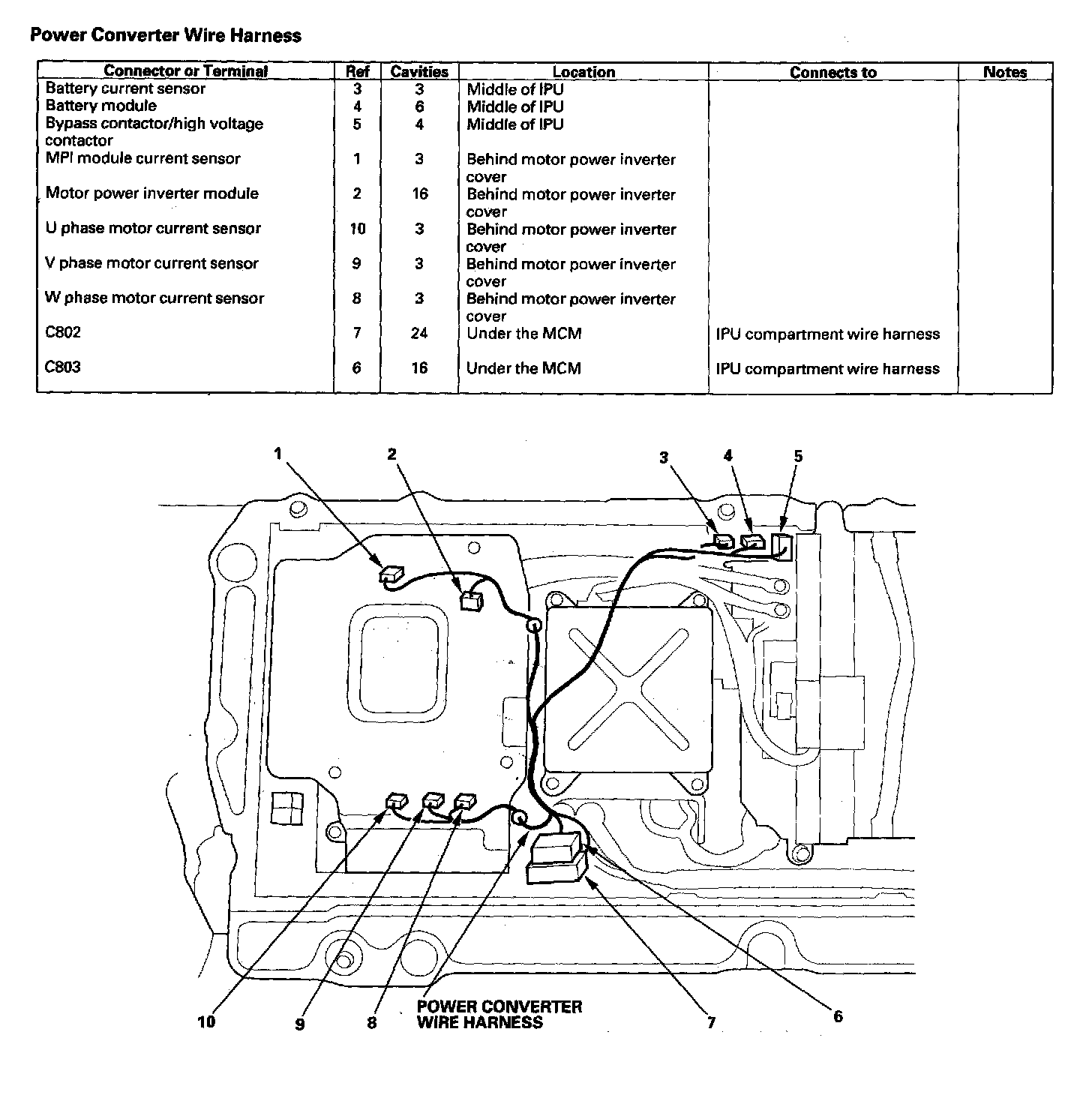

Power Converter Wire Harness
Power Converter Wire Harness
Power Converter Wire Harness:
Power Converter Wire Harness:
