Cabin Temperature Sensor / Switch: Service and Repair

In-car Temperature Sensor Replacement

1. Let the steering column hang down by removing the attaching nuts and bolts.

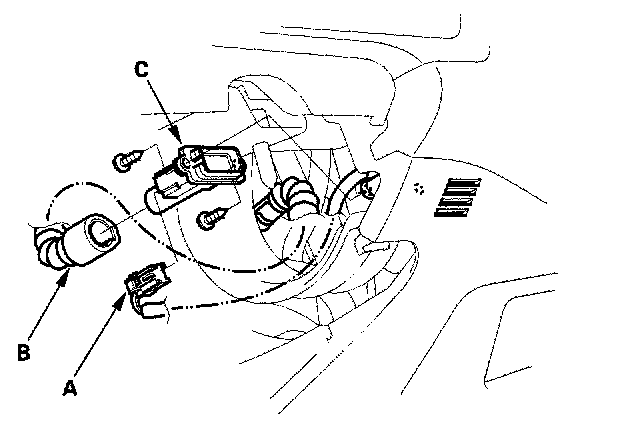

2. Disconnect the 2P connector (A) and the air hose (B), then remove the self-tapping screws and the in-car temperature sensor (C) from the dashboard.
3. Install the sensor in the reverse order of removal. Be sure to connect the air hose securely.
