Model Specific Information

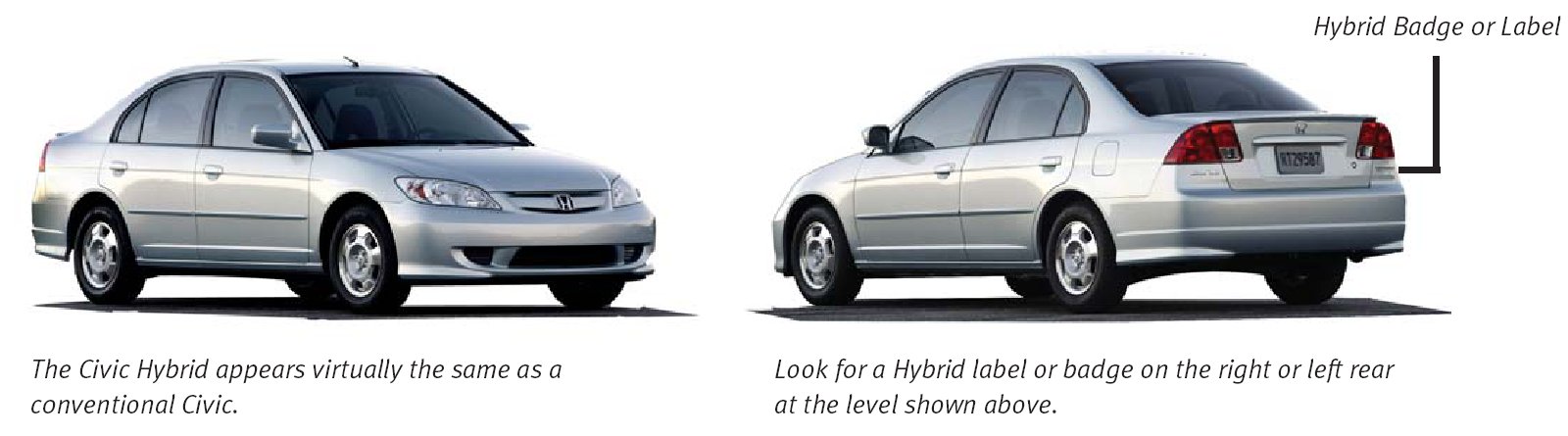

IDENTIFYING THE CIVIC HYBRID

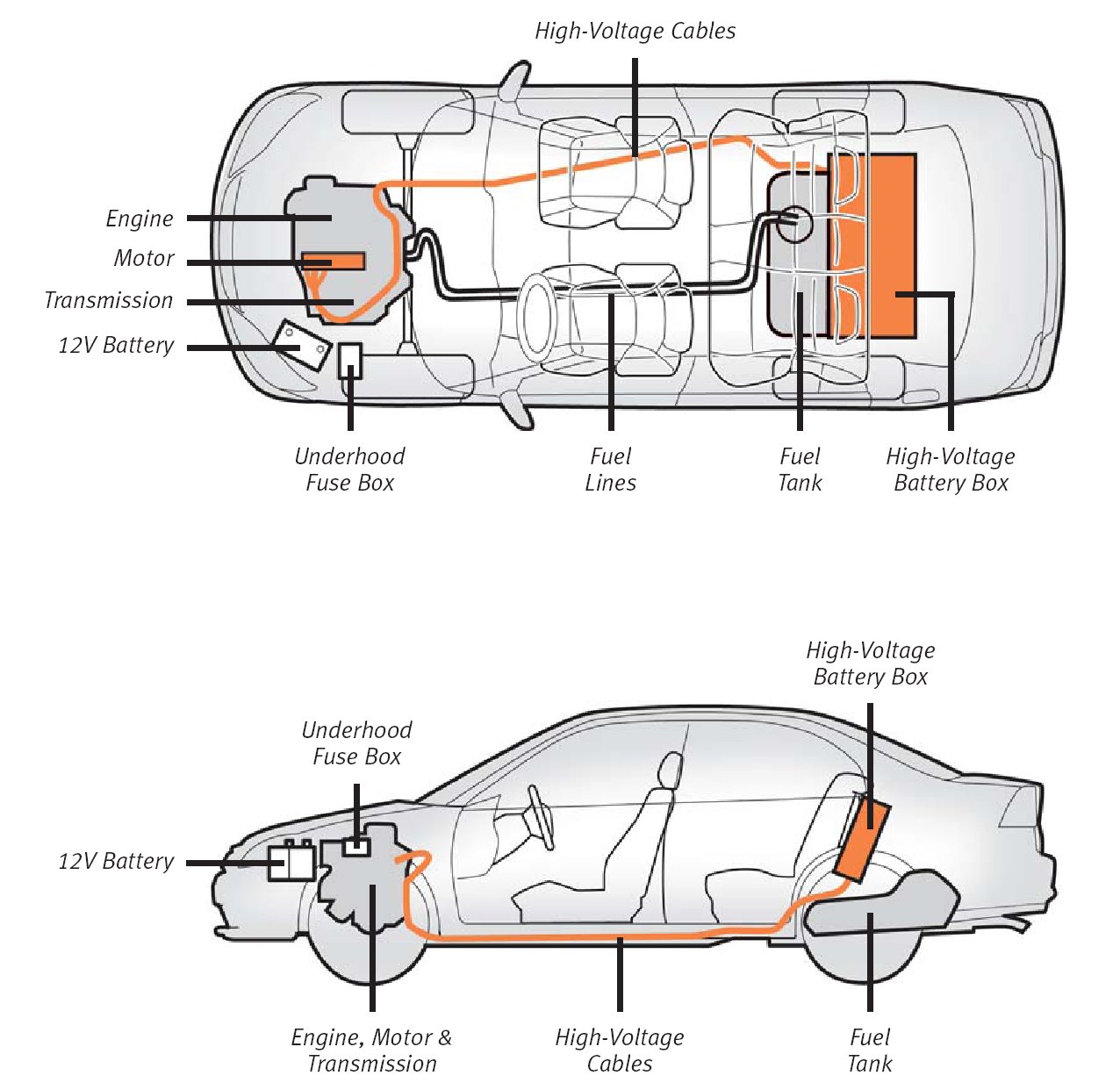

KEY COMPONENTS

FLAMMABLE FUELS
Gasoline: 13.2 gallons (50 liters)
Engine Oil: 3.2 quarts (3.0 liters)
Transmission Fluid:
CVT: 3.4 quarts (3.2 liters)
Manual: 1.6 quarts (1.5 liters)

AIRBAGS AND TENSIONERS
Front Airbags: Driver & front passenger
Side Airbags: Driver & front passenger
Tensioners: Driver & front passenger




UNDERHOOD COMPONENTS




MAIN FUSE LOCATION

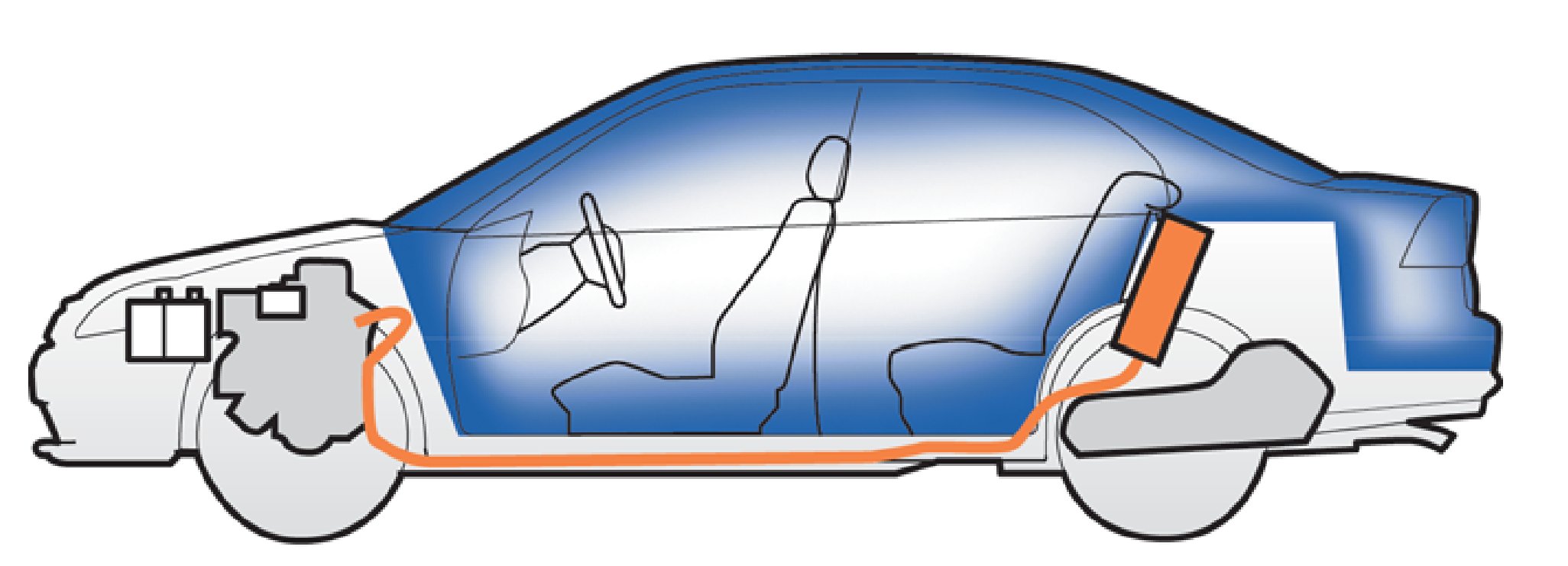

CUT ZONE
