Pinout Values and Diagnostic Parameters

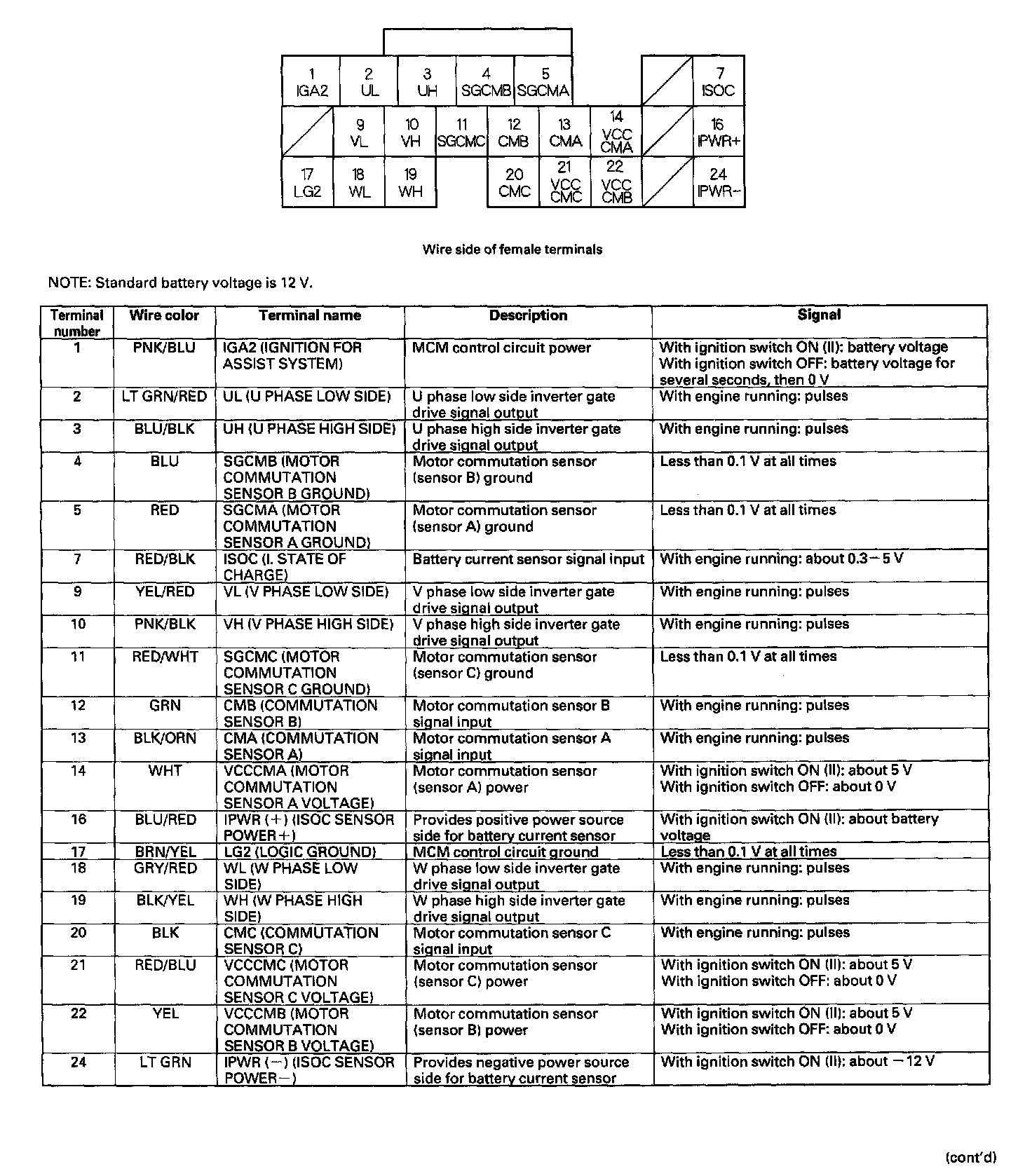

MCM Inputs and Outputs at Connector A (31P)
MCM Inputs and Outputs at Connector B (24P)
MCM Inputs and Outputs at Connector C (17P)
MCM Inputs and Outputs at Connector E (22P)
MCM Inputs and Outputs at Connector F (14P)
