Dashboard Center Lower Cover

Dashboard Center Lower Cover Removal/Installation

Special Tools Required
KTC trim tool set SOJATP2014

'03 Model

NOTE:
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
- Take care not to scratch the dashboard and related parts.




1. Remove the center console.

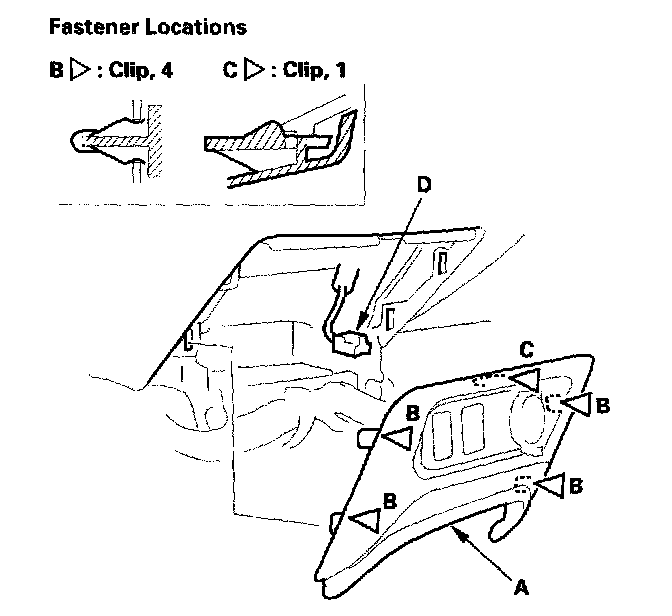

2. Remove the dashboard center lower cover (A).
-1 Gently pull out the cover to release the clips (B,C).
-2 Disconnect the accessory power socket connector (D).

3. Install the cover in the reverse order of removal, and note these items:
- Make sure the accessory power socket connector is plugged in properly.
- Push the clips into place securely.

Special Tools Required
KTC trim tool set SOJATP2014

'04-05 Models

NOTE:
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
- Take care not to scratch the dashboard and related parts.
- Make sure the vehicle interior is at room temperature, about 70 °F (21 °C).

1. M/T model: Remove the shift knob.
2. Remove the gear position indicator panel trim (CVT model) and center console trim.

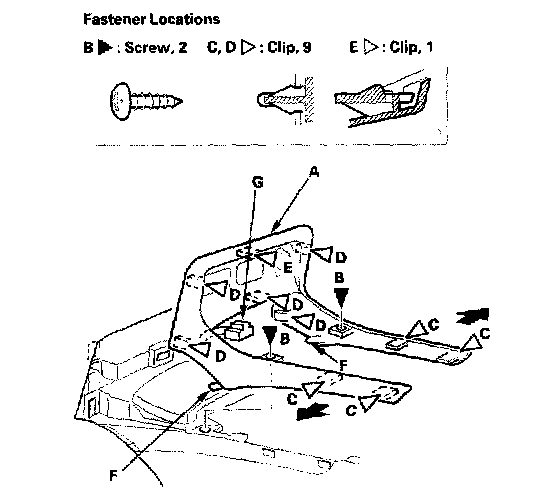

3. Remove the dashboard center lower cover (A).
-1 Remove the screws (B).
-2 Gently release the clips (C) by pushing from the inside.
-3 Grasp both sides of the dashboard center lower cover near the screw holes, and gently pull straight back to release the clips (D, E) and hooks (F).
-4 Disconnect the accessory power socket connector (G).

4. Install the cover in the reverse order of removal, and note these items:
- Make sure the accessory power socket connector is plugged in properly.
- Push the clip portions into place securely.
