Driver's Dashboard Lower Cover

Driver's Dashboard Lower Cover Removal/Installation

NOTE: Take care not to scratch the dashboard and related parts.

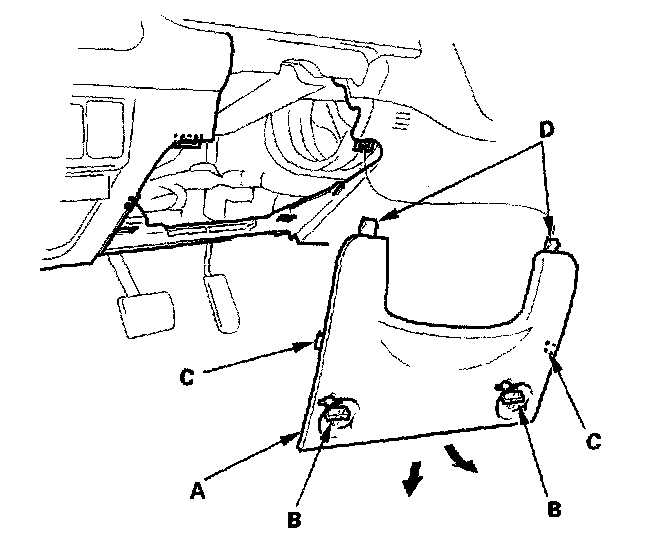

1. Remove the driver's dashboard lower cover (A).
-1 Adjust the steering column upward.
-2 Turn both lock knobs (B) 90°.
-3 Gently pull out the bottom to release the hooks (C).
-4 Pull down the panel to release the hooks (D).

2. Install the cover in the reverse order of removal, and push the hooks into place securely.
