Instrument Panel

Instrument Panel Removal/Installation

Special Tools Required
KTC trim tool set SOJATP2014

NOTE:
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
- Take care not to scratch the dashboard and related parts.

1. Tilt the steering column down.
2. Remove the steering column upper cover.

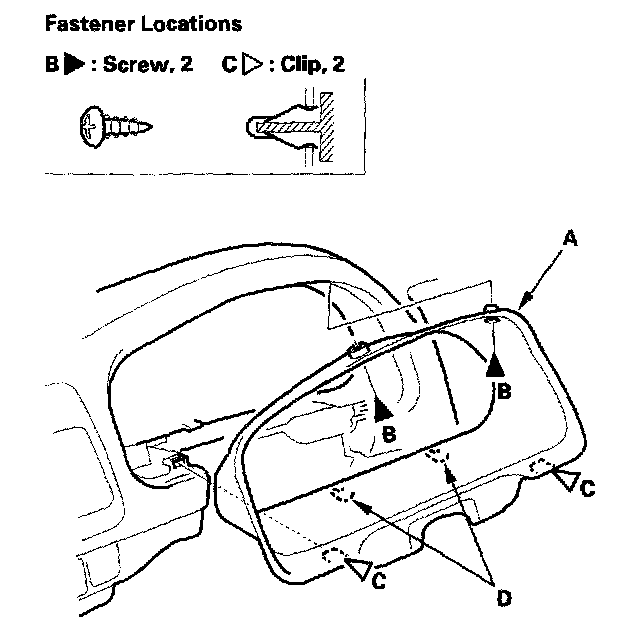

3. Remove the instrument panel (A).
-1 Remove the screws (B).
-2 Gently pull out along the bottom to release the clips (C) and hooks (D).
-3 Gently pull out the upper portion of the panel.

4. Install the panel in the reverse order of removal, and push the clips into place securely.
