Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
2003
>>
Civic L4-1.3L Hybrid
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Tail Lamp
>>
Diagrams
>>
Connector Views
Connector Views

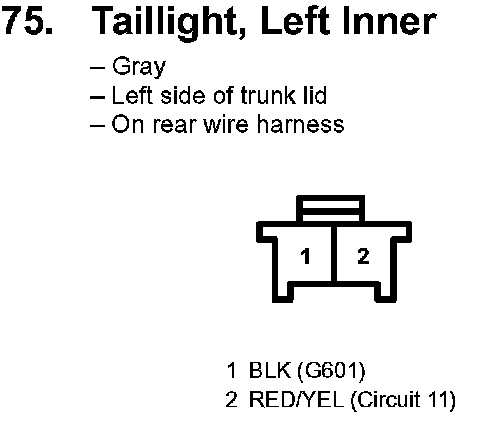

75. Taillight, Left Inner:

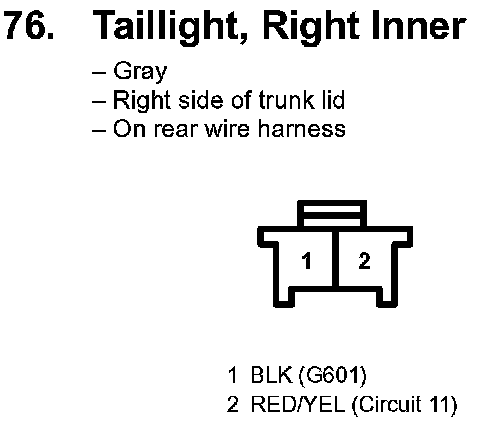

76. Taillight, Right Inner:

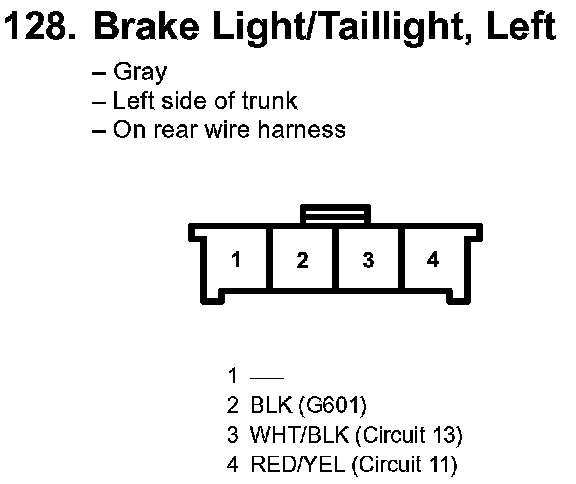

128. Brake Light/Taillight, Left:
129. Brake Light/Taillight, Right:
