Multiple Junction Connector: Diagrams

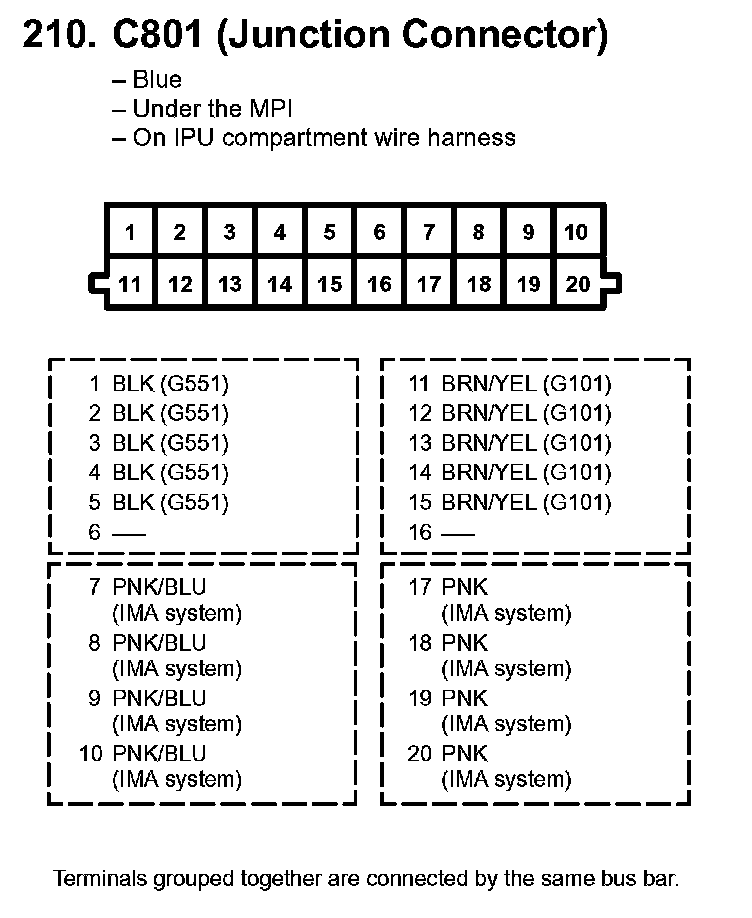

210. C801 (Junction Connector):

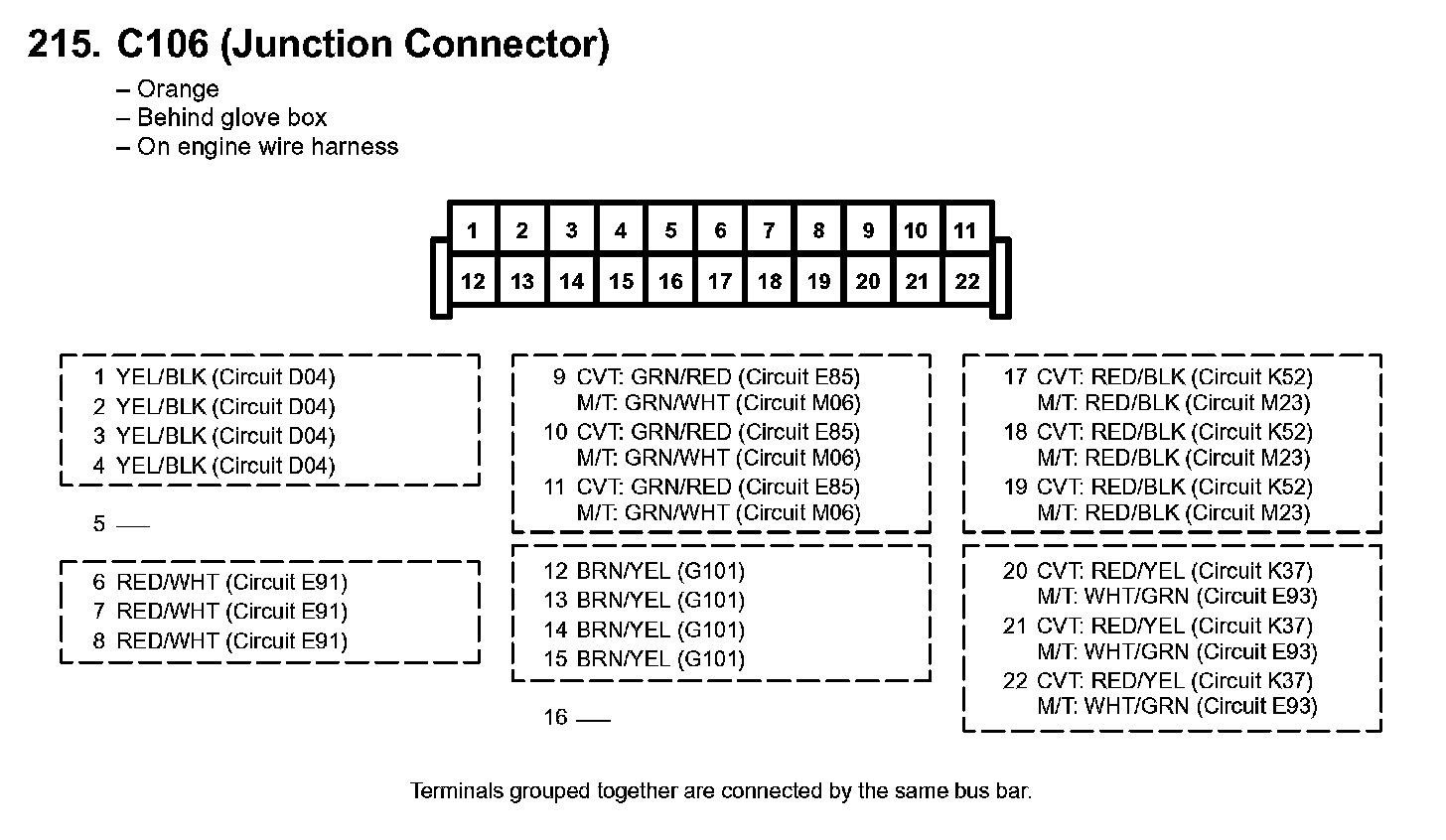

215. C106 (Junction Connector):
216. C109 (Junction Connector) (CVT):

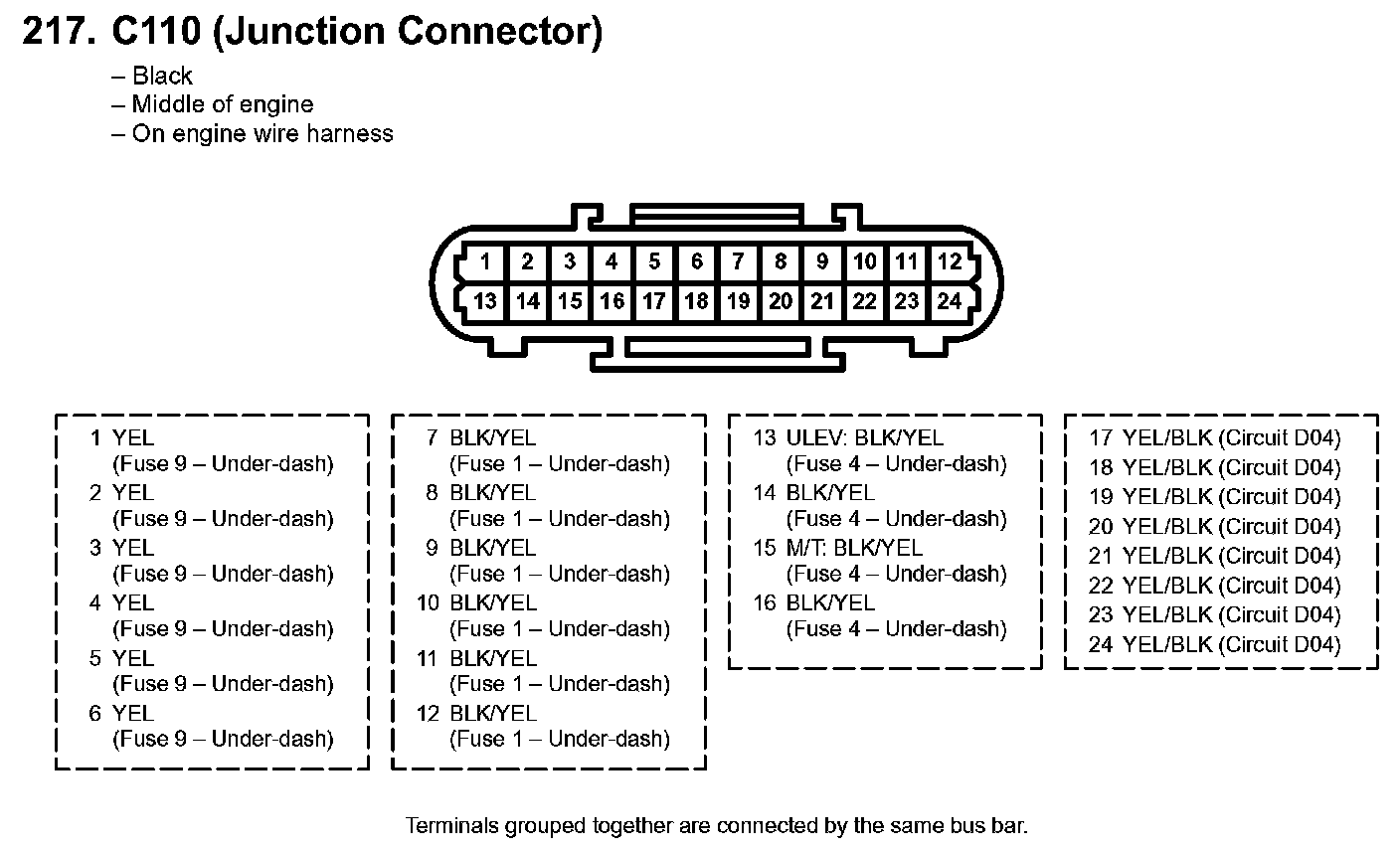

217. C110 (Junction Connector):
218. C111 (Junction Connector):
