Air Bag Control Module: Locations

86. In Front Passenger's Seat (Side Airbag) (USA):



Relay And Control Unit Locations - Door, Rear And Seat:

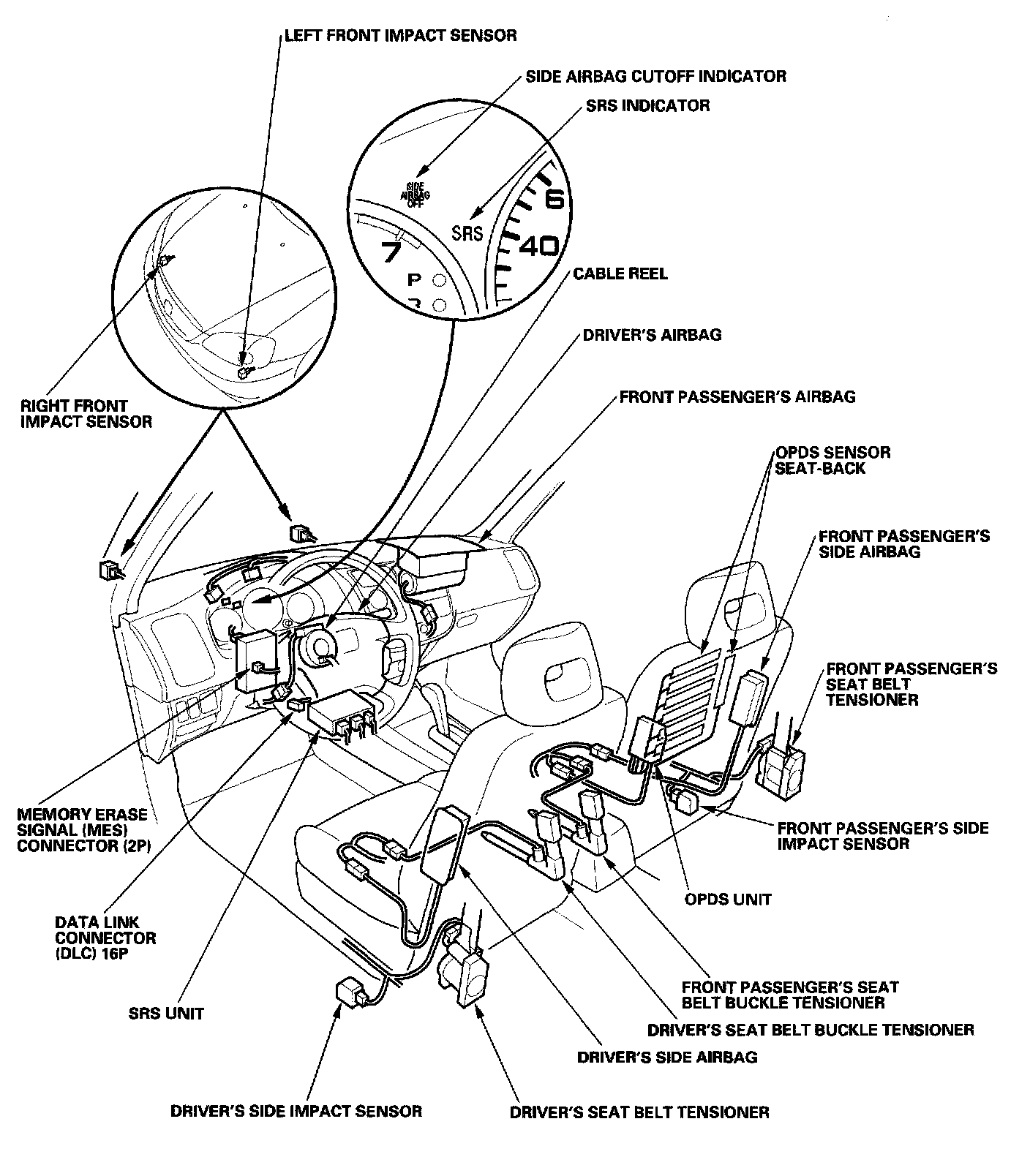

SRS - Component Location Index:



Relay And Control Unit Locations - Dashboard:
