ATF Level Check

ATF Level Check

NOTE: Keep all foreign particles out of the transmission.

1. Warm up the engine to normal operating temperature (the radiator fan comes on).
2. Park the vehicle on level ground, and turn the engine off.

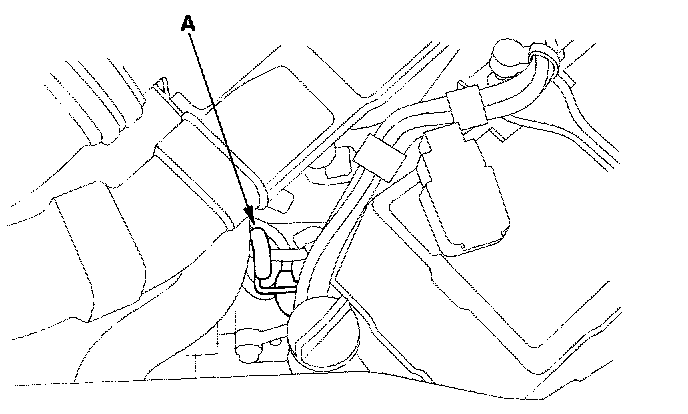

3. Remove the dipstick (yellow loop) (A) from the transmission, and wipe it with a clean cloth.
4. Insert the dipstick back into the transmission.





5. Remove the dipstick and check the fluid level in 60 - 90 seconds after the engine is turned off. It should be between the upper mark (A) and lower mark (B) on HOT level.
6. If the level is below the lower mark (B), check for fluid leaks at the transmission, hose and line joints, and cooler lines.
7. If the level exceeds the upper mark (A), drain the fluid for proper level.

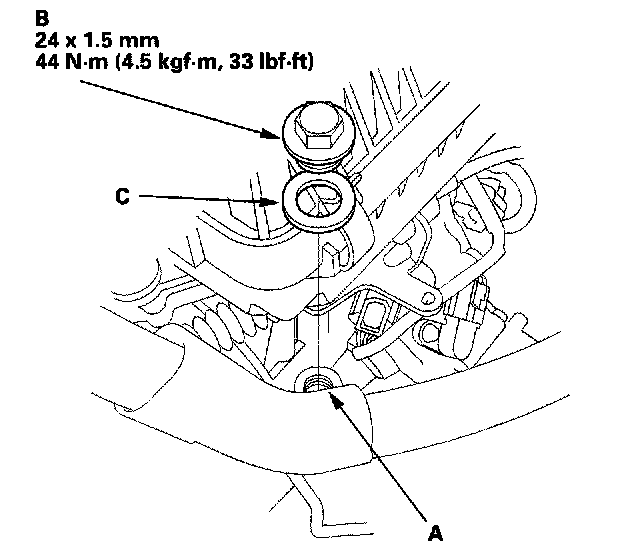

8. Pour the recommended fluid into the filler hole (A) to bring it to upper mark. Always use Honda ATF-Z1 Automatic Transmission Fluid (ATF). Using non-Honda ATF can affect shift quality.
9. Install the ATF filler bolt (B) with a new sealing washer (C).
10. Insert the dipstick back into the transmission.
