Front Mount Bracket Removal and Installation

Front Mount Bracket Removal and Installation
1. Raise the front of the vehicle, and make sure it is securely supported. Set the parking brake, and block rear wheels securely. Or lift up the vehicle.

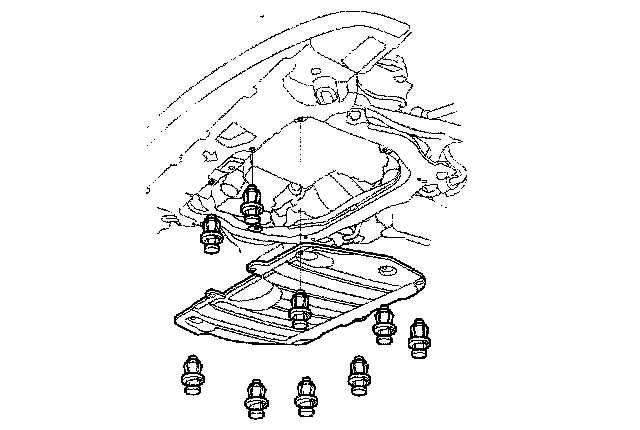

2. Remove the under-cover.
3. Remove the splash shield.

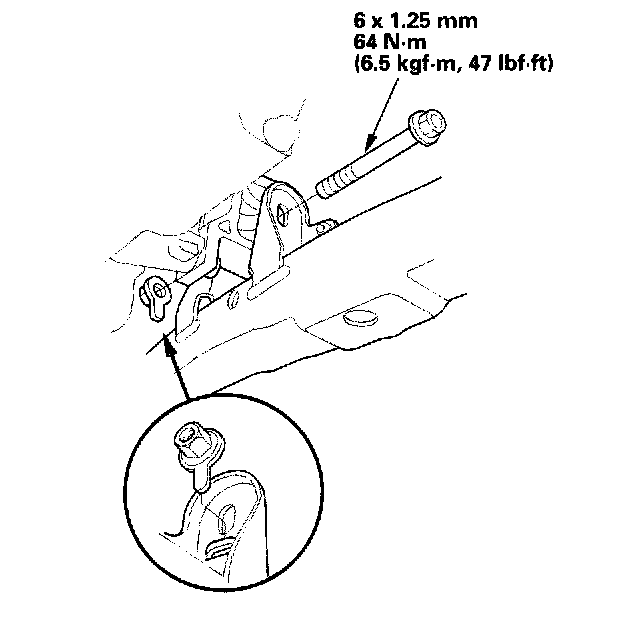

4. Remove the front mount bolt and nut.

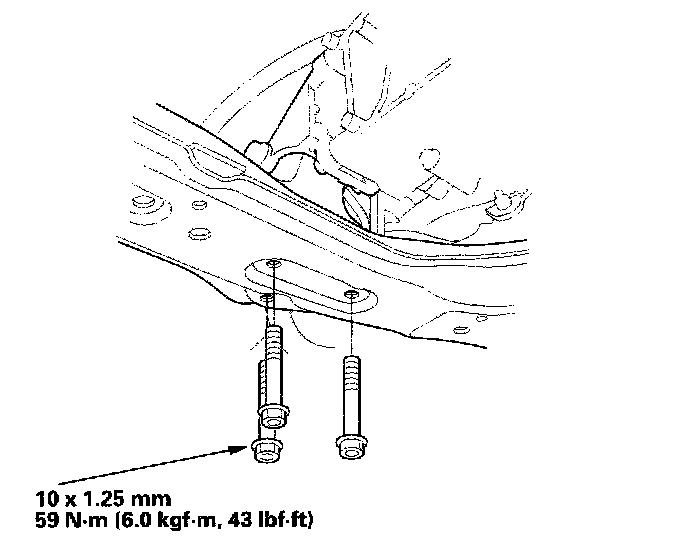

5. Remove the rear mount bolts.
6. Place the transmission jack under the transmission, and lift it up to create clearance between the transmission and front sub-frame.

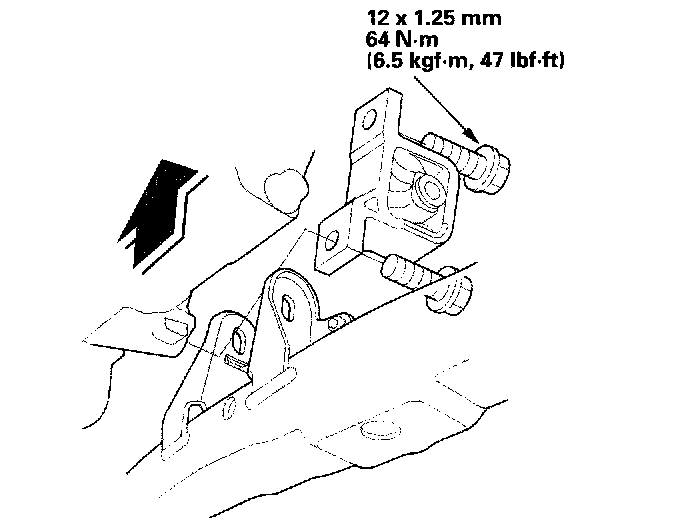

7. Remove the front mount bracket,
8. Install the front mount bracket reverse order of removal.
