Initial Inspection and Diagnostic Overview
Road TestSpecial Tools Required
Backprobe set 07SAZ-001000A (two required)
1. Warm up the engine to normal operating temperature (the radiator fan comes on).
2. Apply parking brake, and block rear wheels. Start the engine, then shift to the [D] position while pressing the brake pedal. Press the accelerator pedal, and release it suddenly. The engine should not stall 11.
3. Connect the Honda PGM Tester (A) to the DLC (B), and go to the PGM-FI Data List; then go to step 6. If you don't have a PGM Tester, go to step 4.

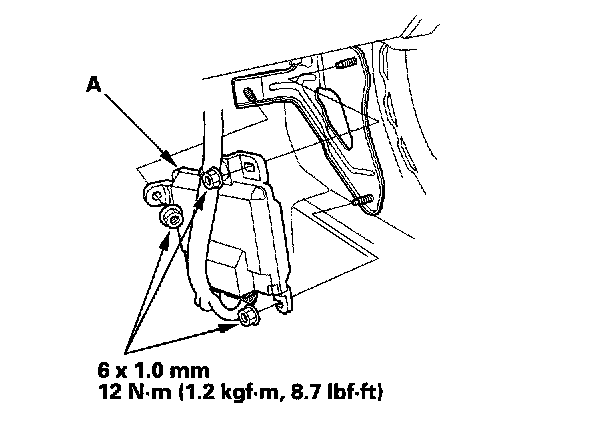

4. Remove the right kick panel, then remove the TCM (A).

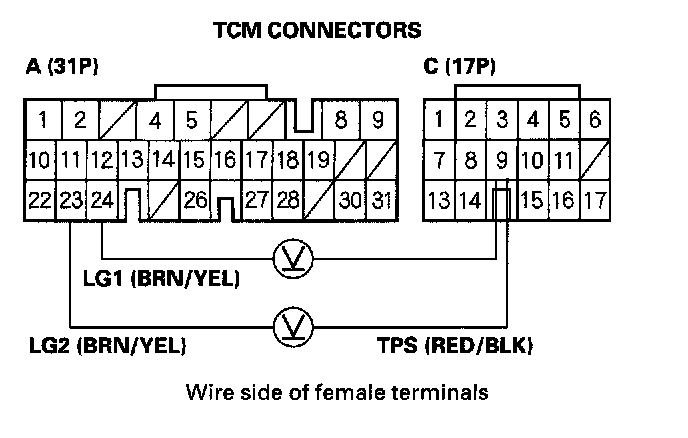

5. Connect a digital multimeter (A) and the special tools (B) to monitor TPS voltage between TCM connector terminals C9 and A23 or A24.
6. Test-drive the vehicle on a flat road in the position shown. While driving, check that the engine speeds meet the approximate vehicle speeds shown in the table.
[D] Position: Engine Speed rpm
[S] Position: Engine Speed rpm
[L] Position: Engine Speed rpm
