Symptom Related Diagnostic Procedures

Symptom Troubleshooting Index

Part 1 Of 17:

Part 2 Of 17:

Part 3 Of 17:

Part 4 Of 17:

Part 5 Of 17:

Part 6 Of 17:

Part 7 Of 17:

Part 8 Of 17:

Part 9 Of 17:

Part 10 Of 17:

Part 11 Of 17:

Part 12 Of 17:

Part 13 Of 17:

Part 14 Of 17:

Part 15 Of 17:

Part 16 Of 17:

Part 17 Of 17:

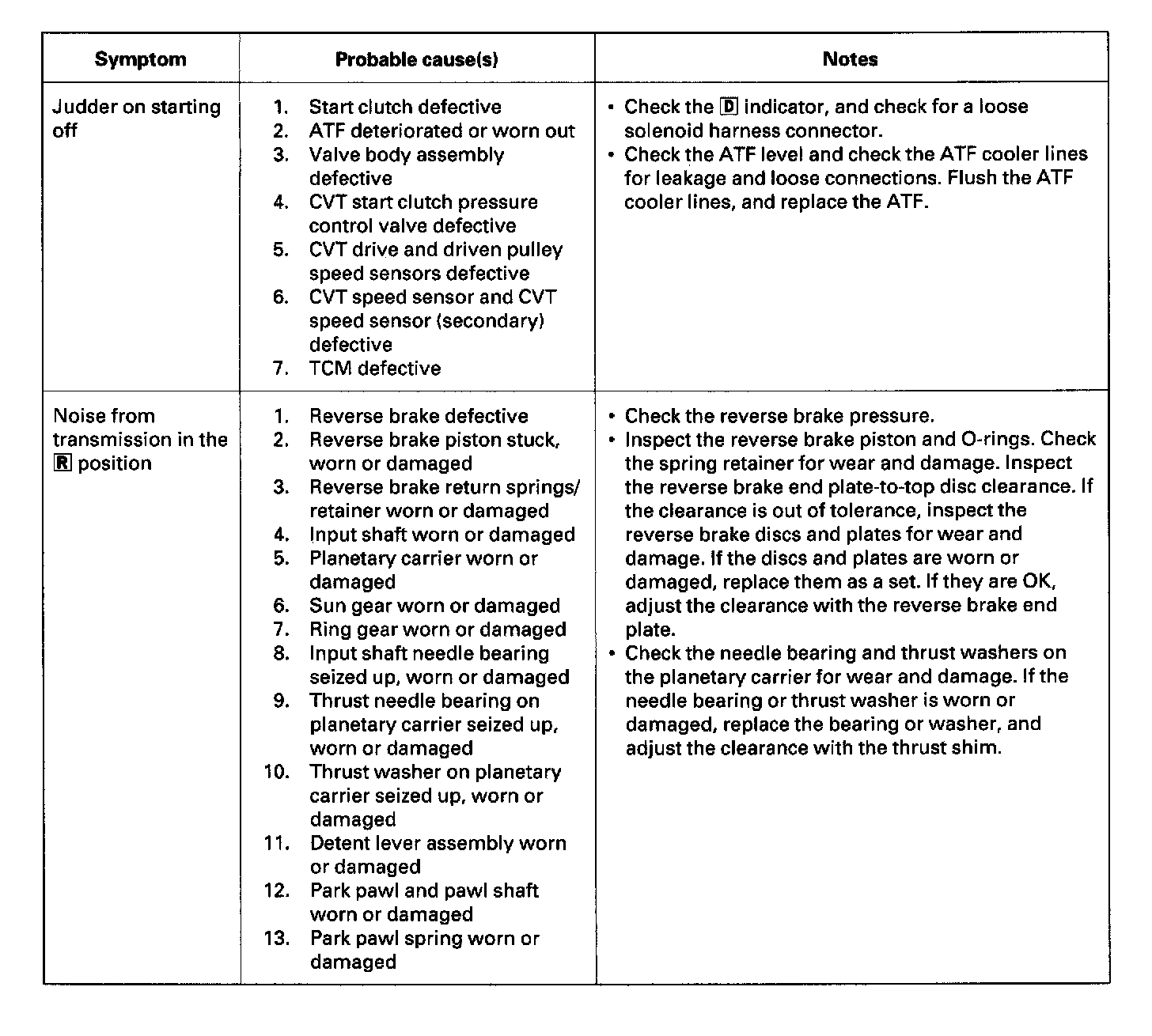

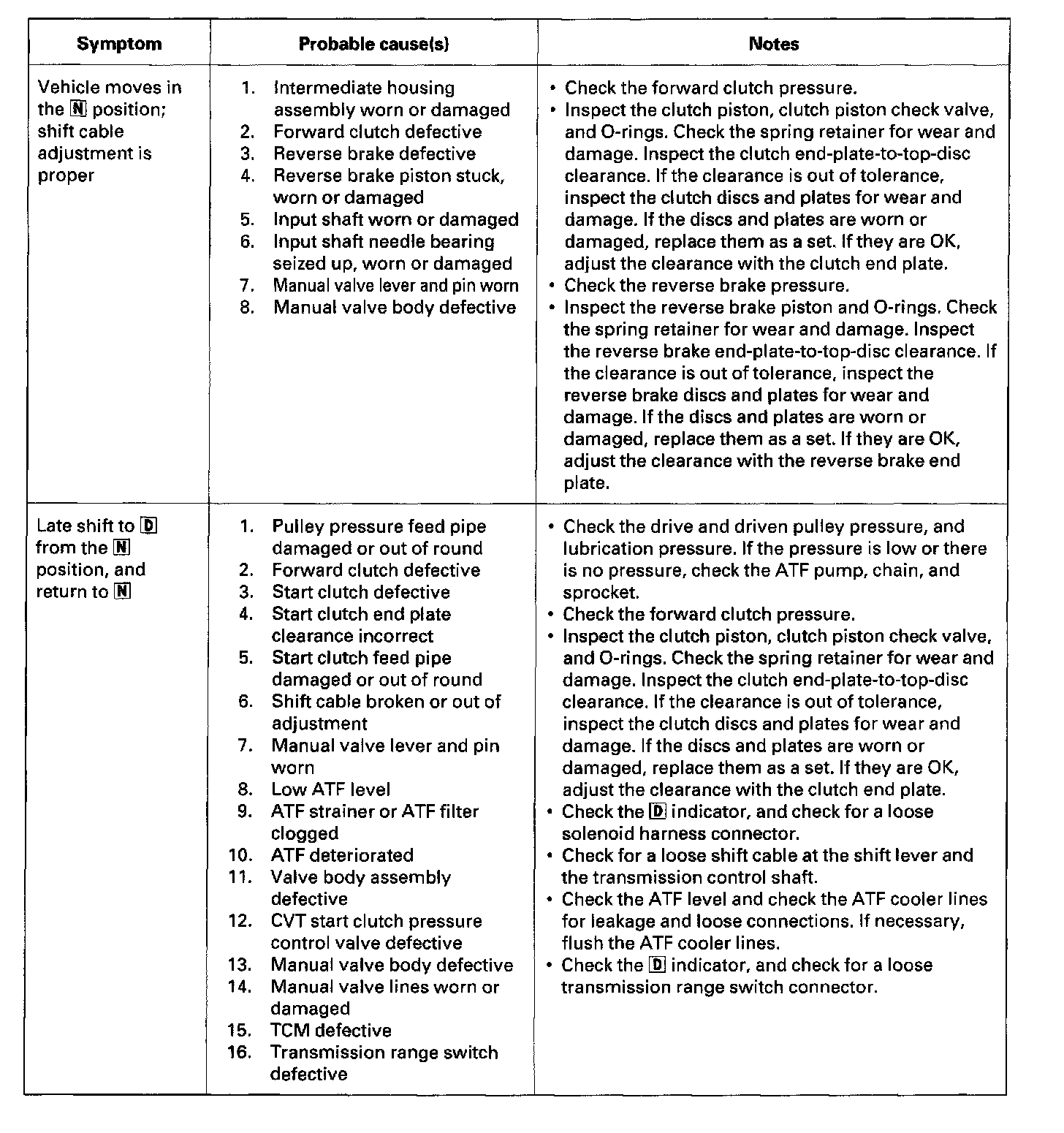

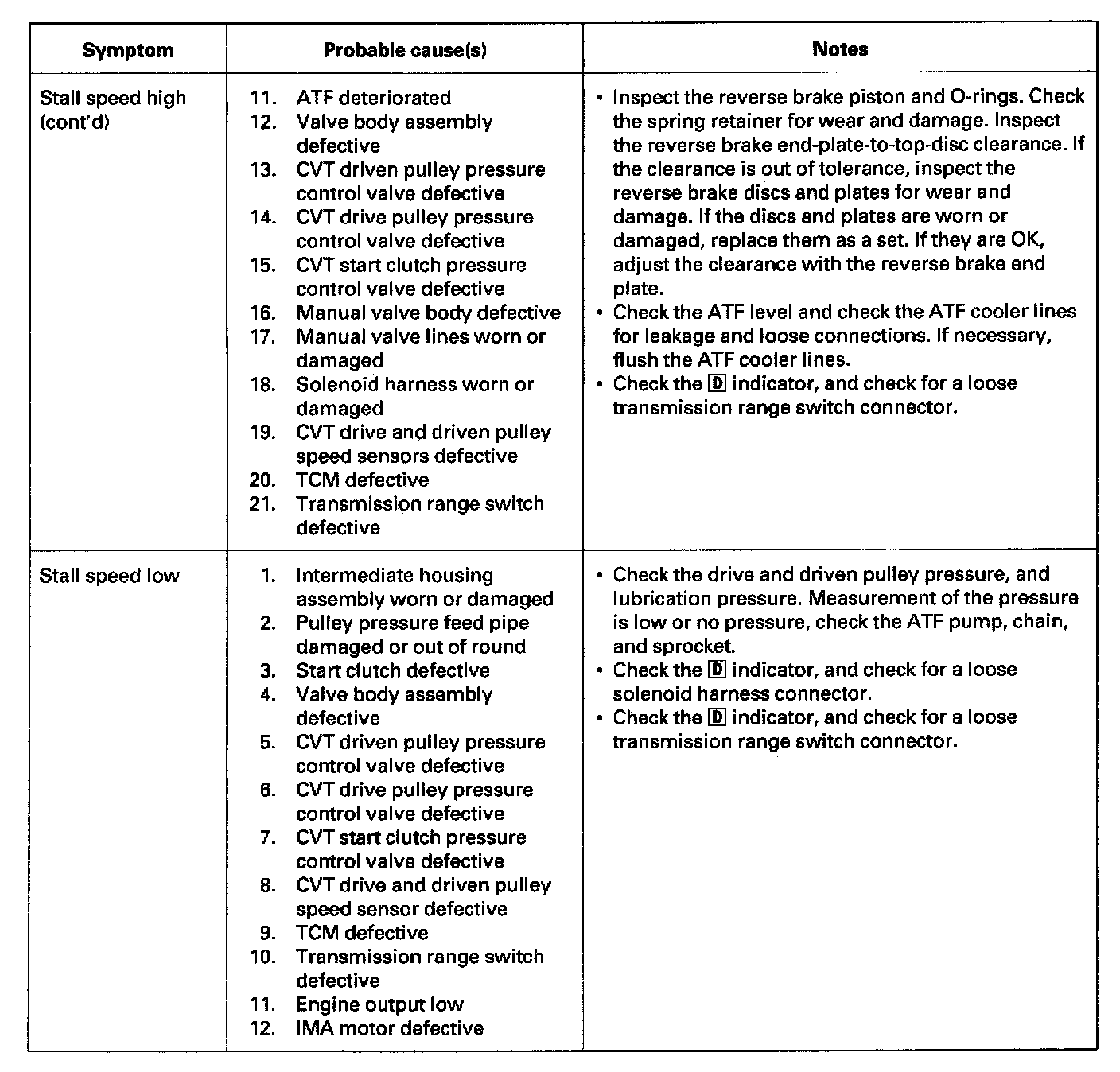

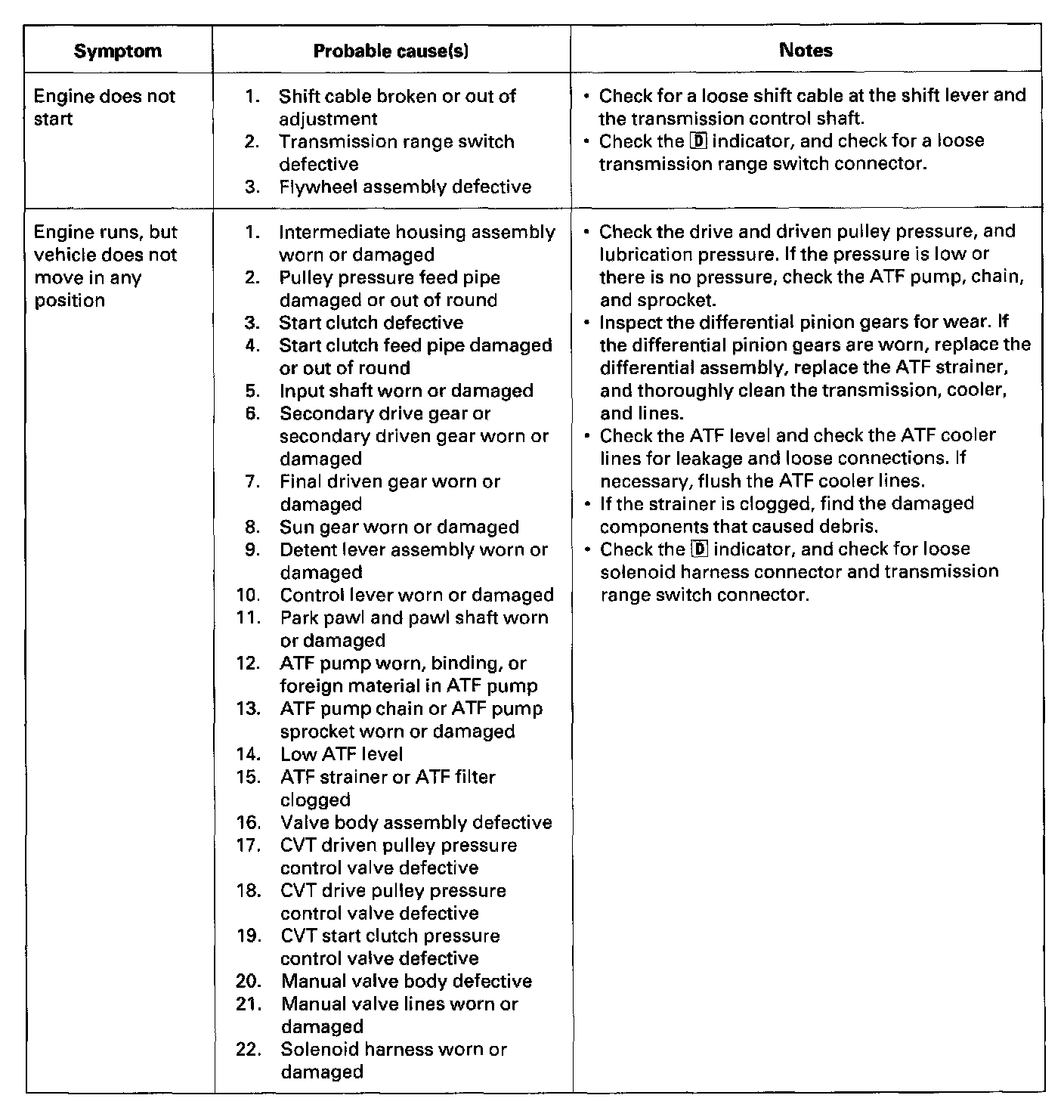

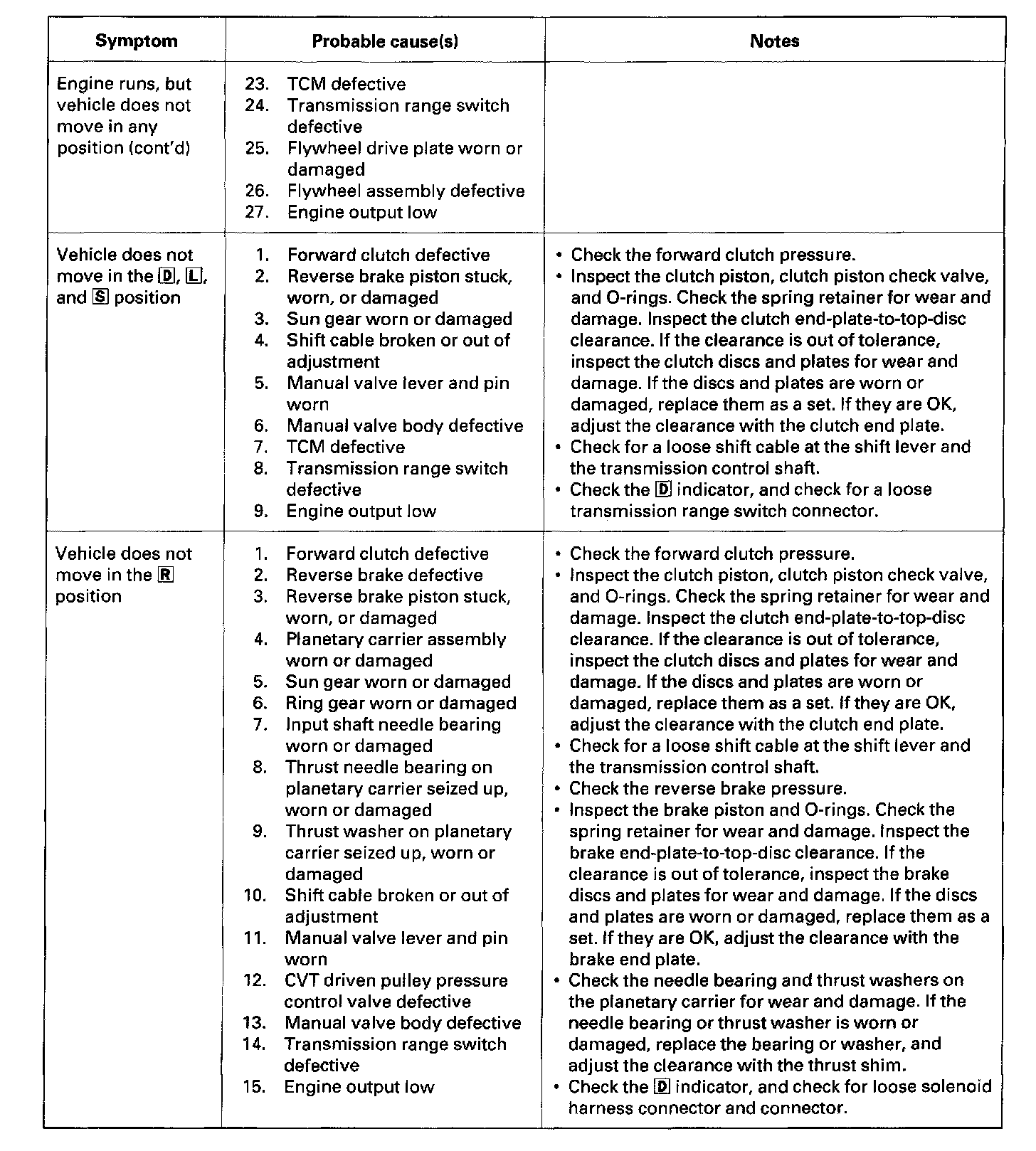

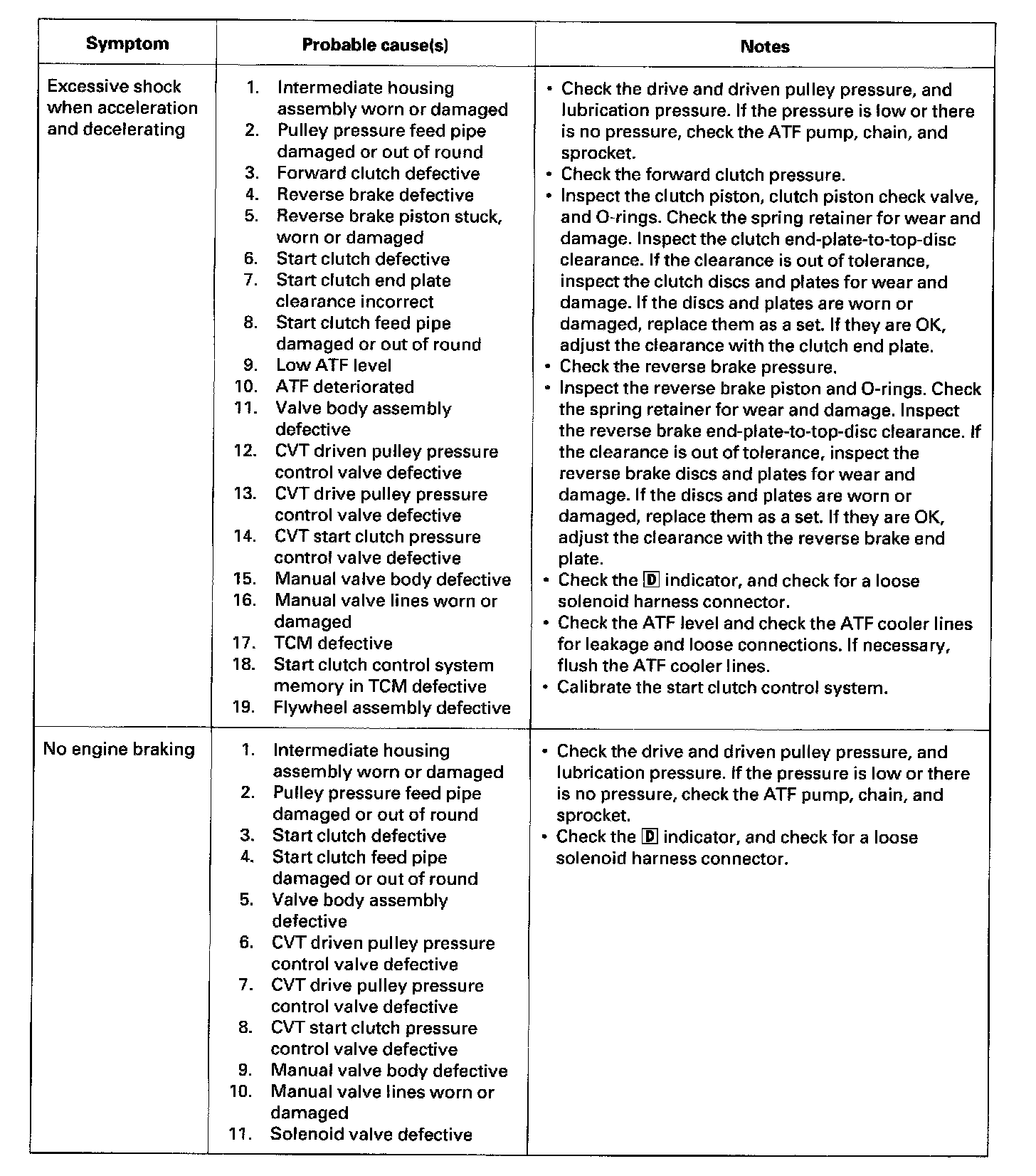

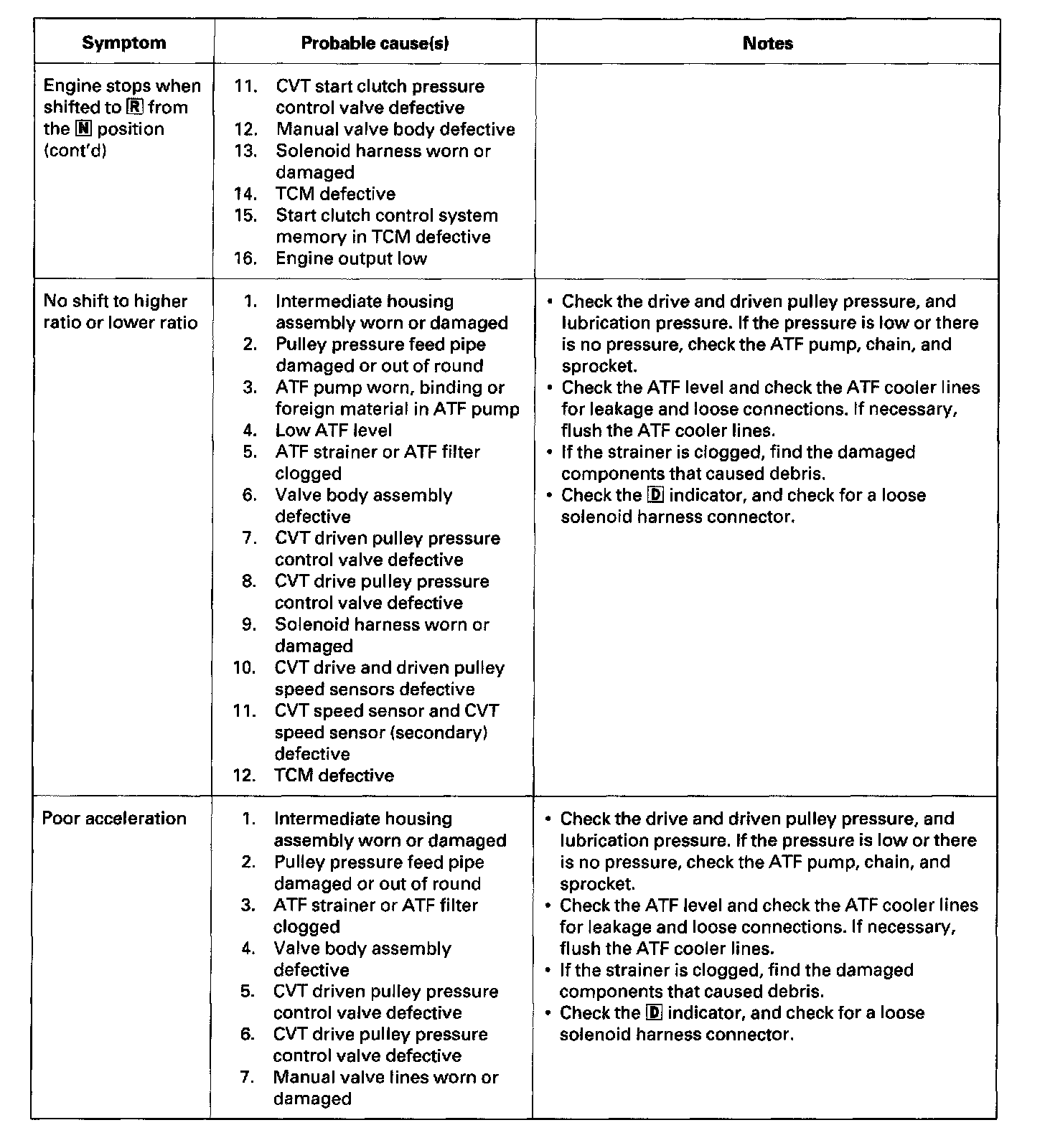

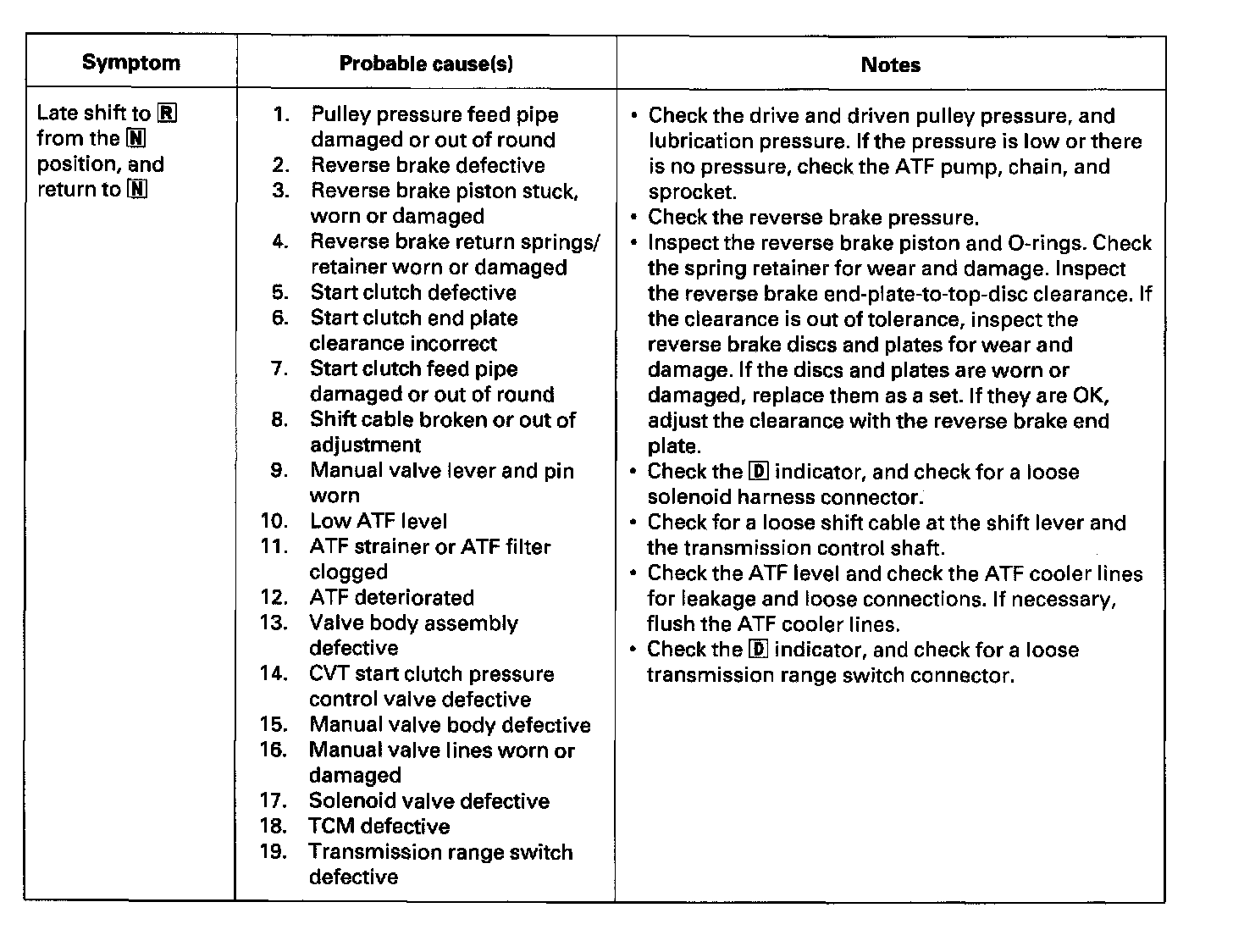

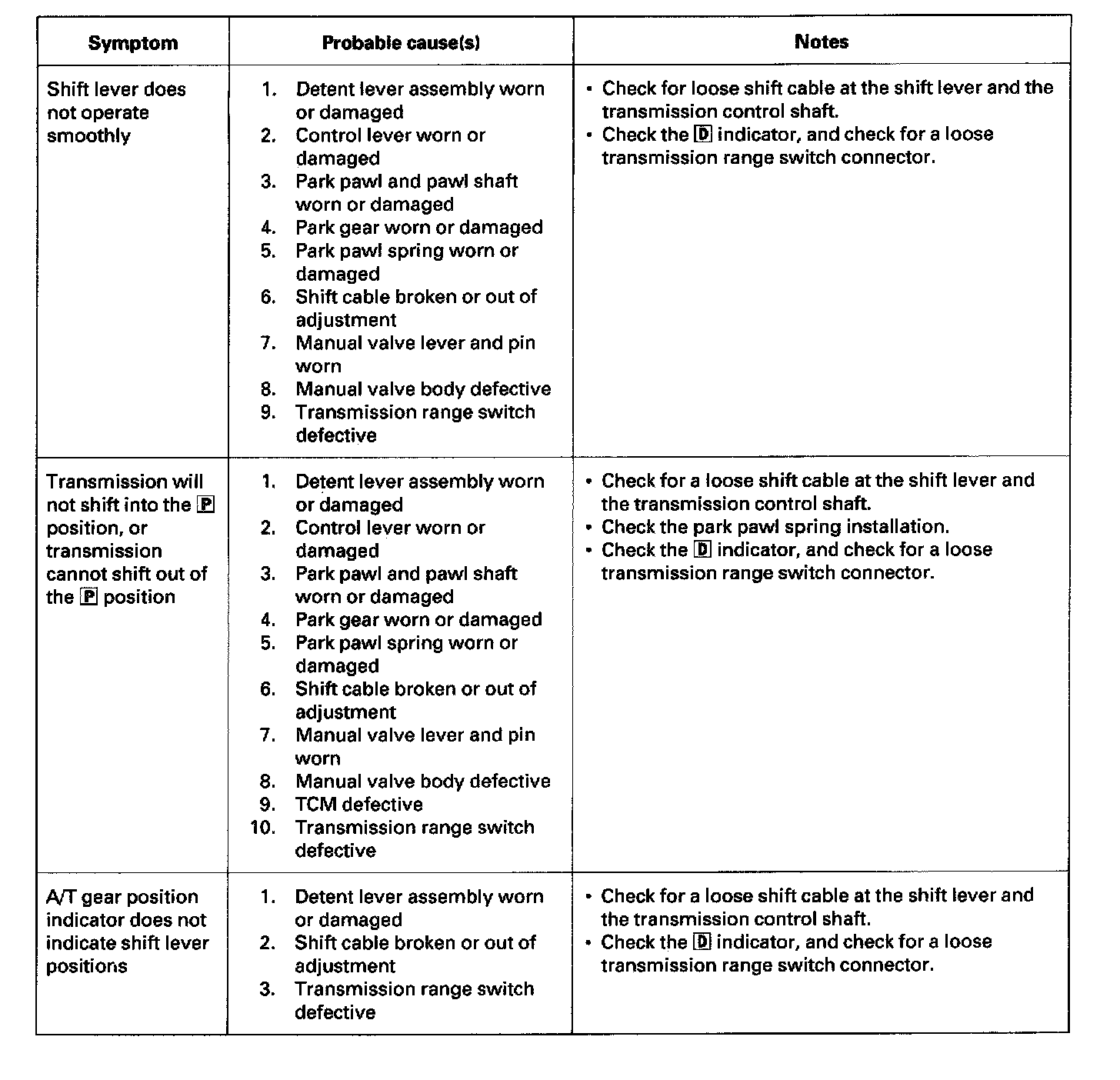

These symptoms DO NOT trigger Diagnostic Trouble Codes (DTCs) or cause the [D] indicator to blink. If the Malfunction Indicator Lamp (MIL) was reported ON or the [D] indicator has been blinking, check for DTCs. But if the vehicle has one of the symptoms in the following chart, check the probable cause(s) for it, in the sequence listed, until you find the problem.
