Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
2003
>>
Civic L4-1.7L CNG
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Heated Glass Element
>>
Heated Glass Element Switch
Heated Glass Element Switch

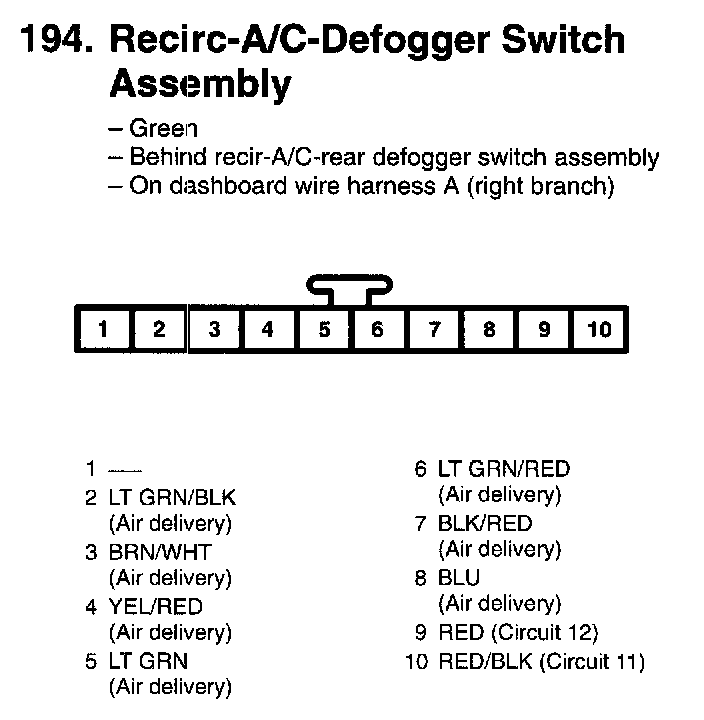

194. Recirc - A/C - Defogger Switch Assembly:
