Diagram Set 120 (Power Windows)

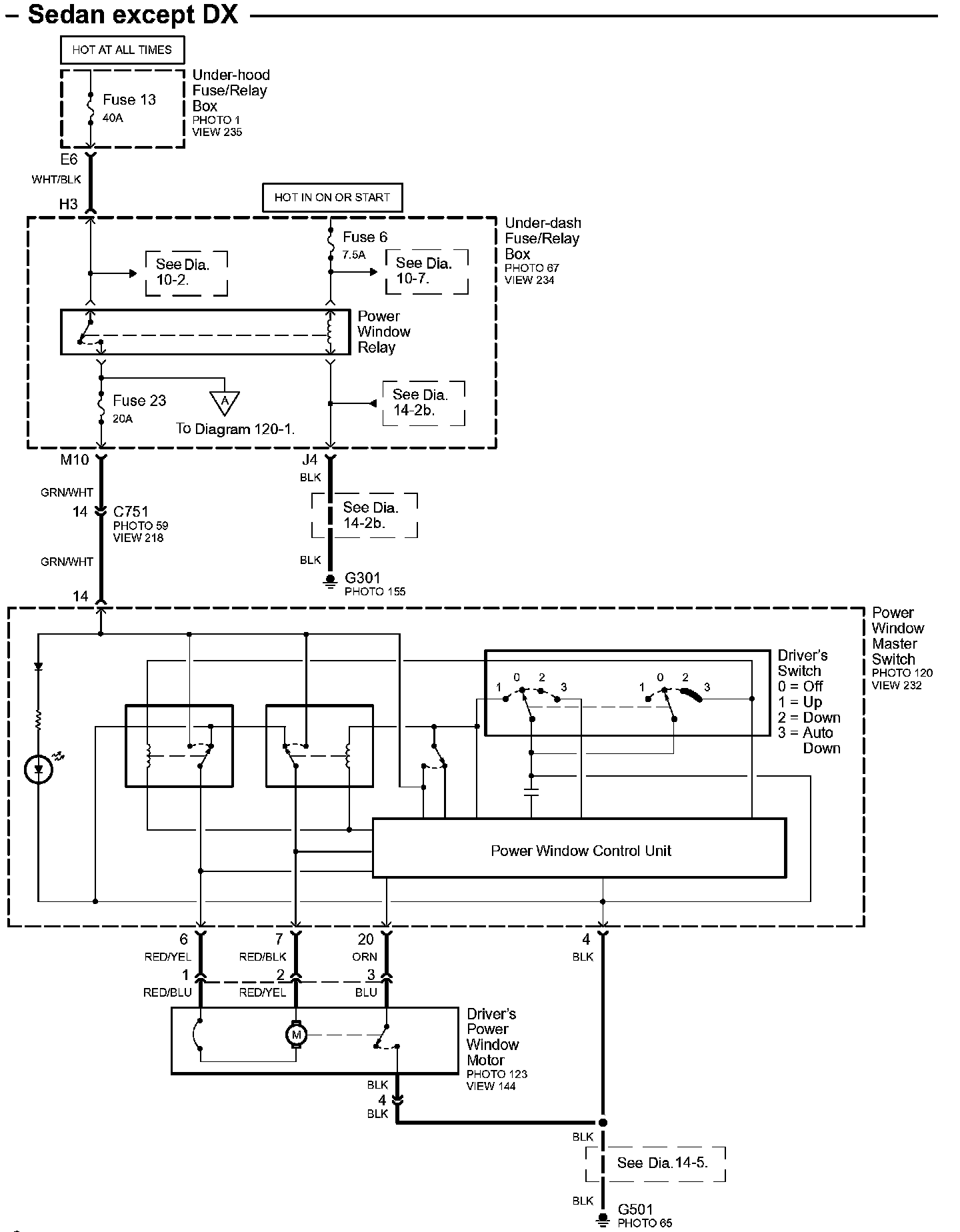

Diagram 120-0 (Sedan Except DX):



Diagram 120-1 (Sedan Except DX):

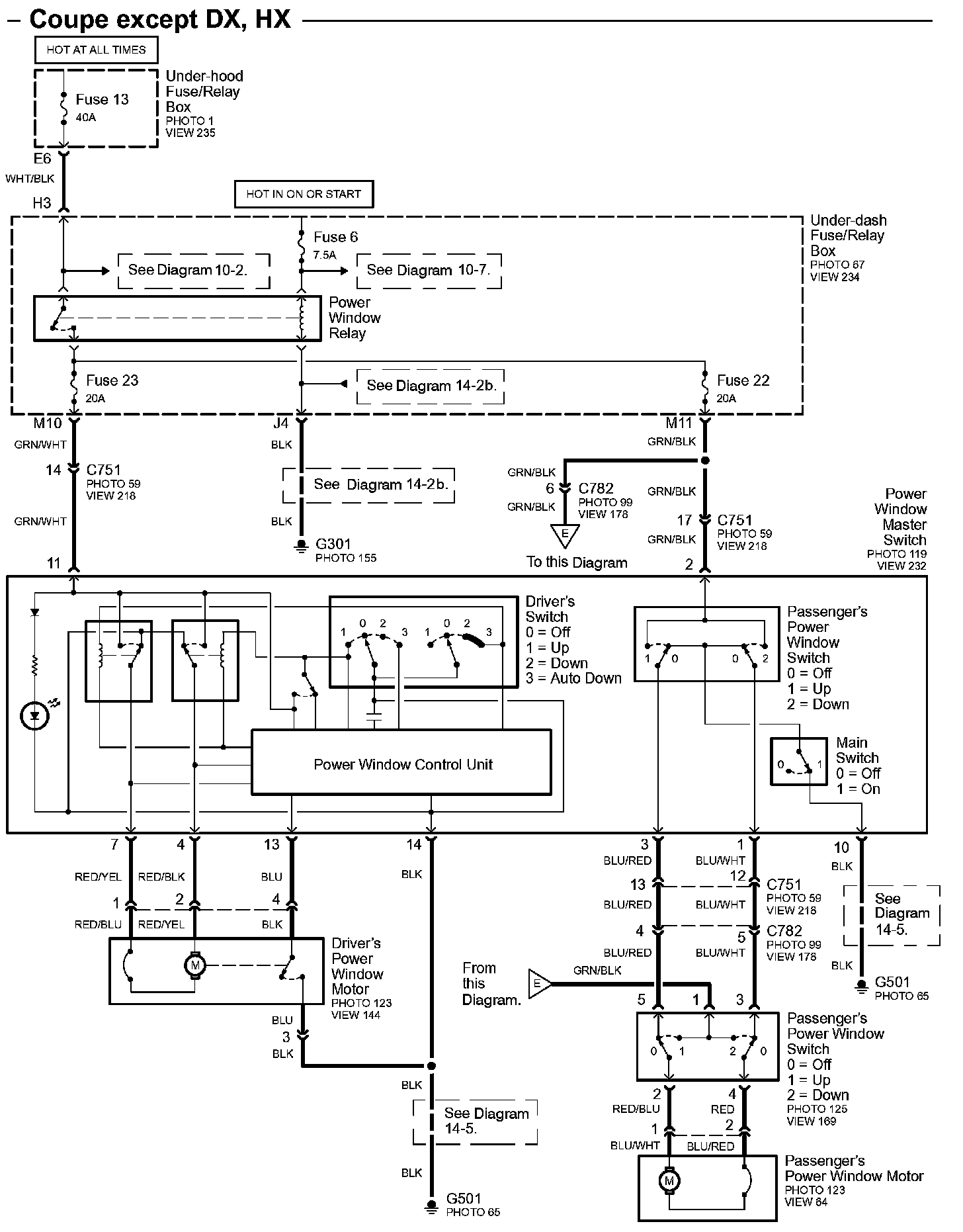

Diagram 120-2 (Coupe Except DX, HX):
