Diagram Set 80 (Gauges and Indicators)

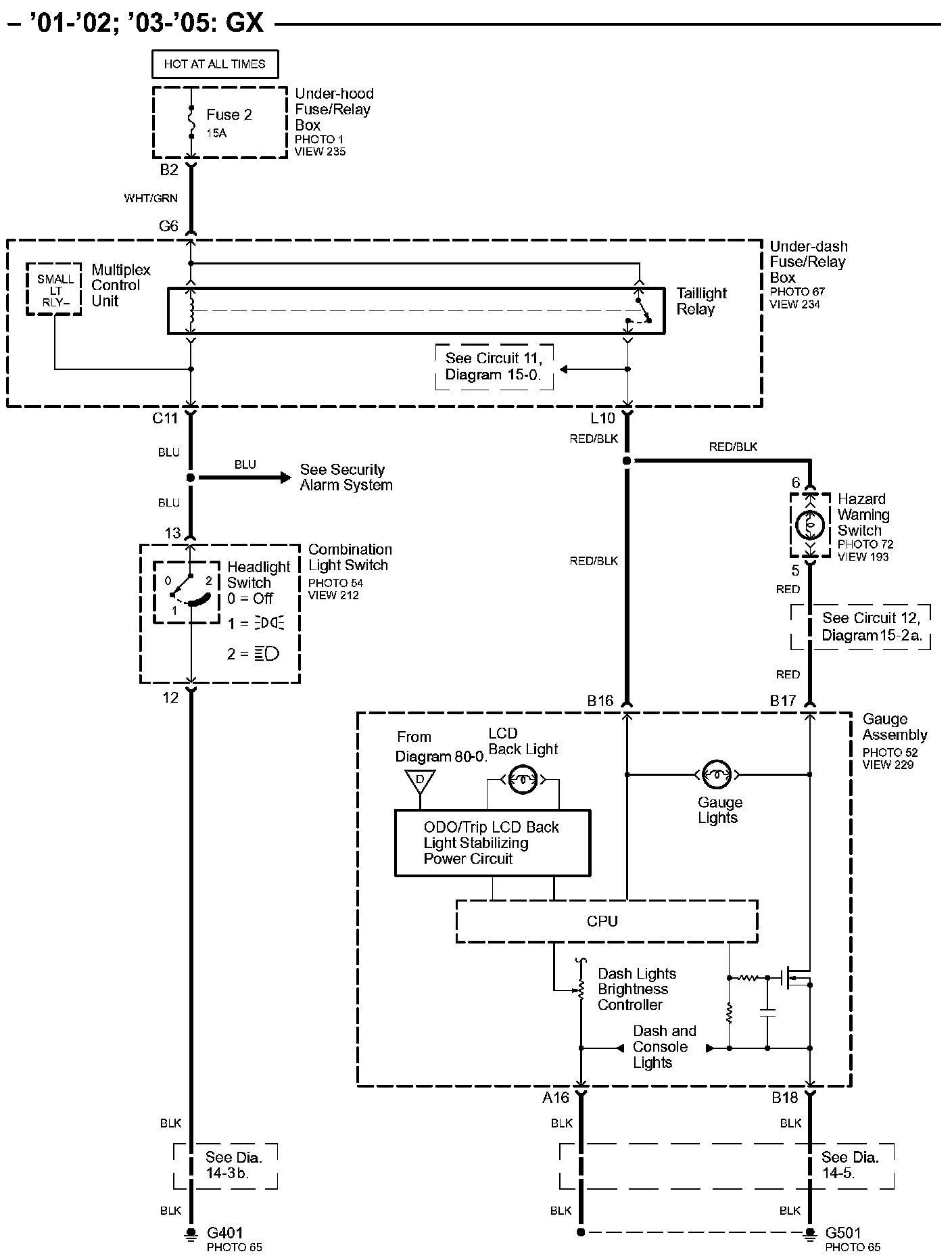

Diagram 80-0 ('01-'02; '03-'05: GX):

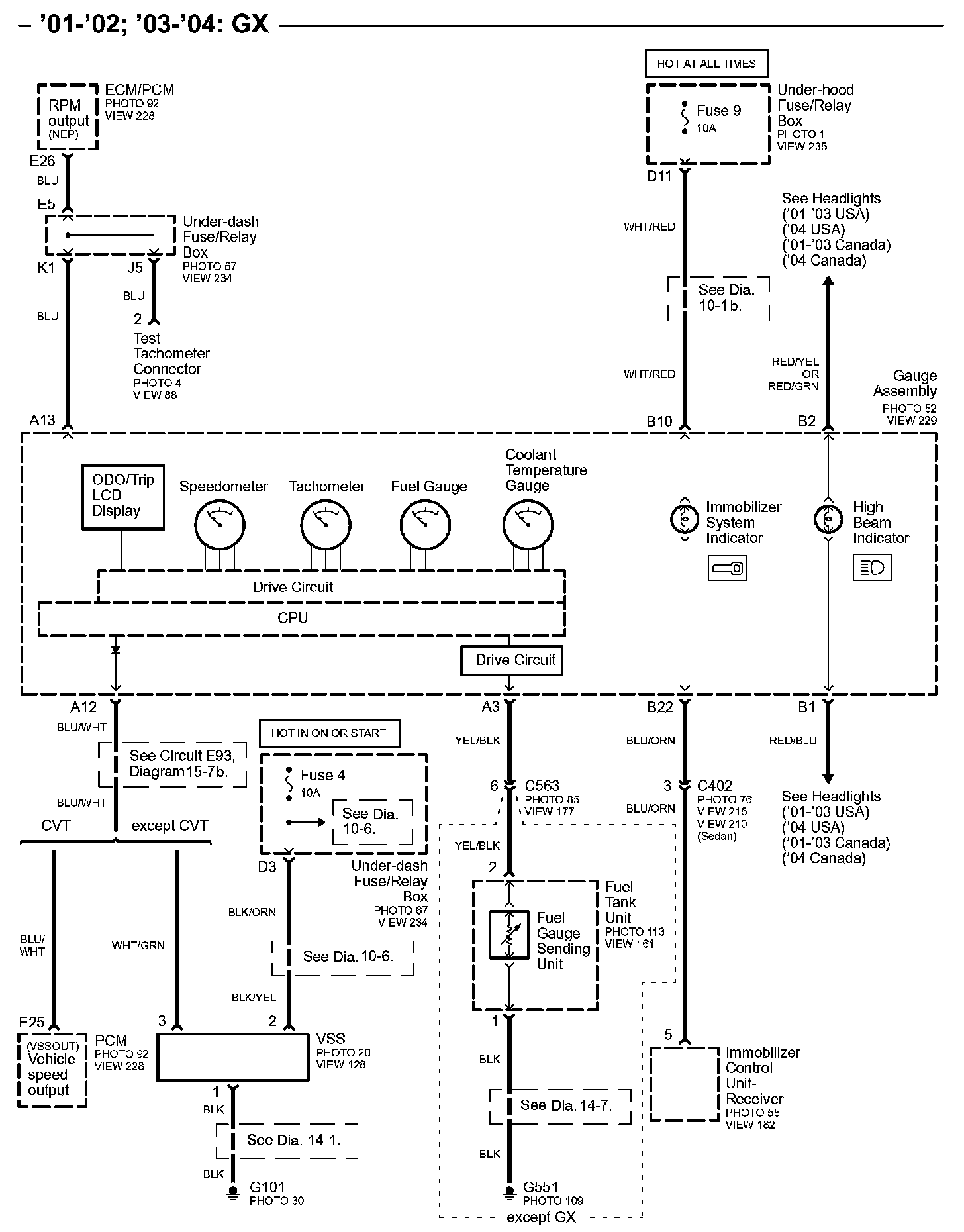

Diagram 80-1 ('01-'02; '03-'04: GX):

Diagram 80-2 ('01-'02; '03-'05: GX):

Diagram 80-3 ('01-'02; '03-'04: GX):

Diagram 80-4 ('01-'02; '03-'05: GX):

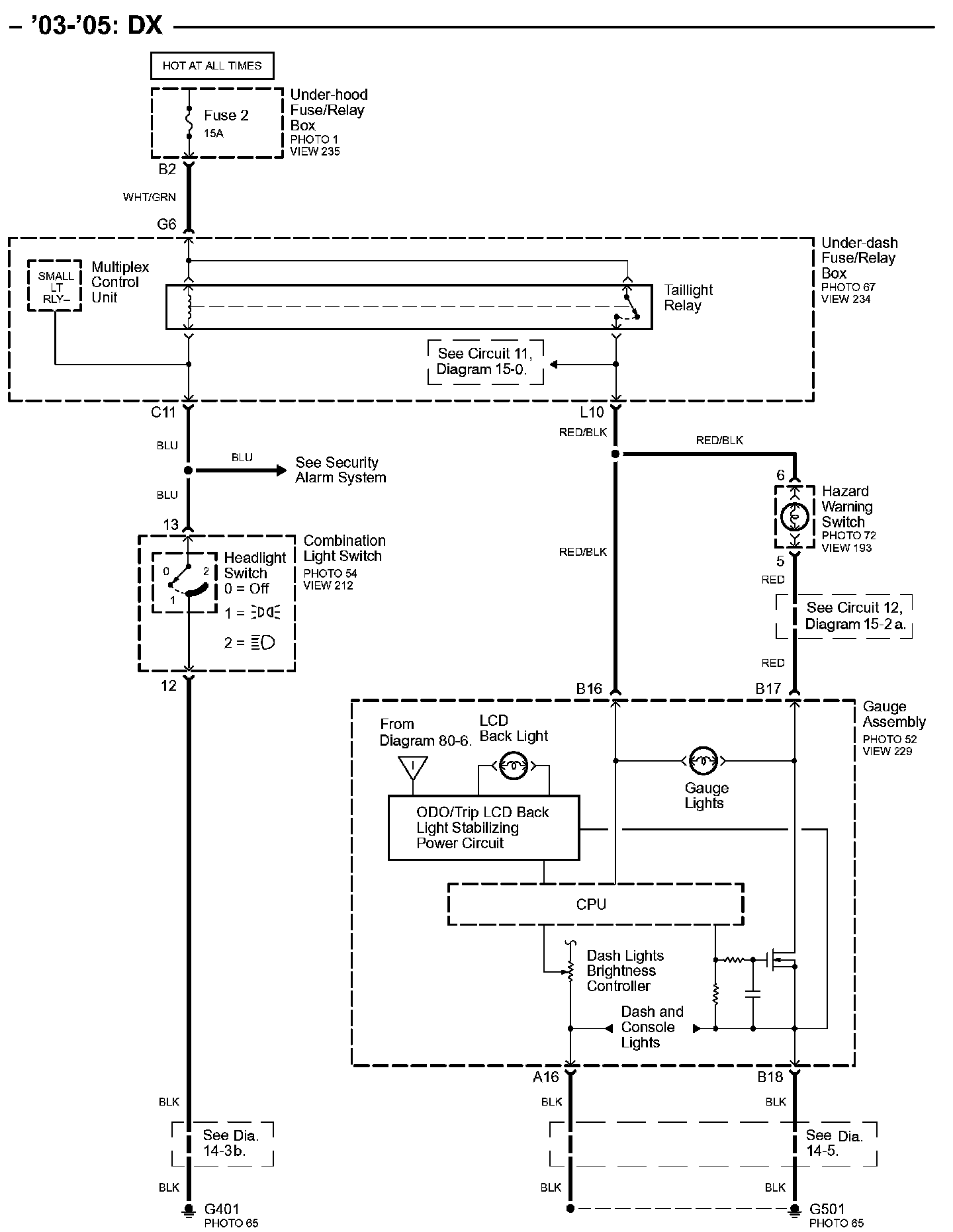

Diagram 80-6 ('03-'05: DX):

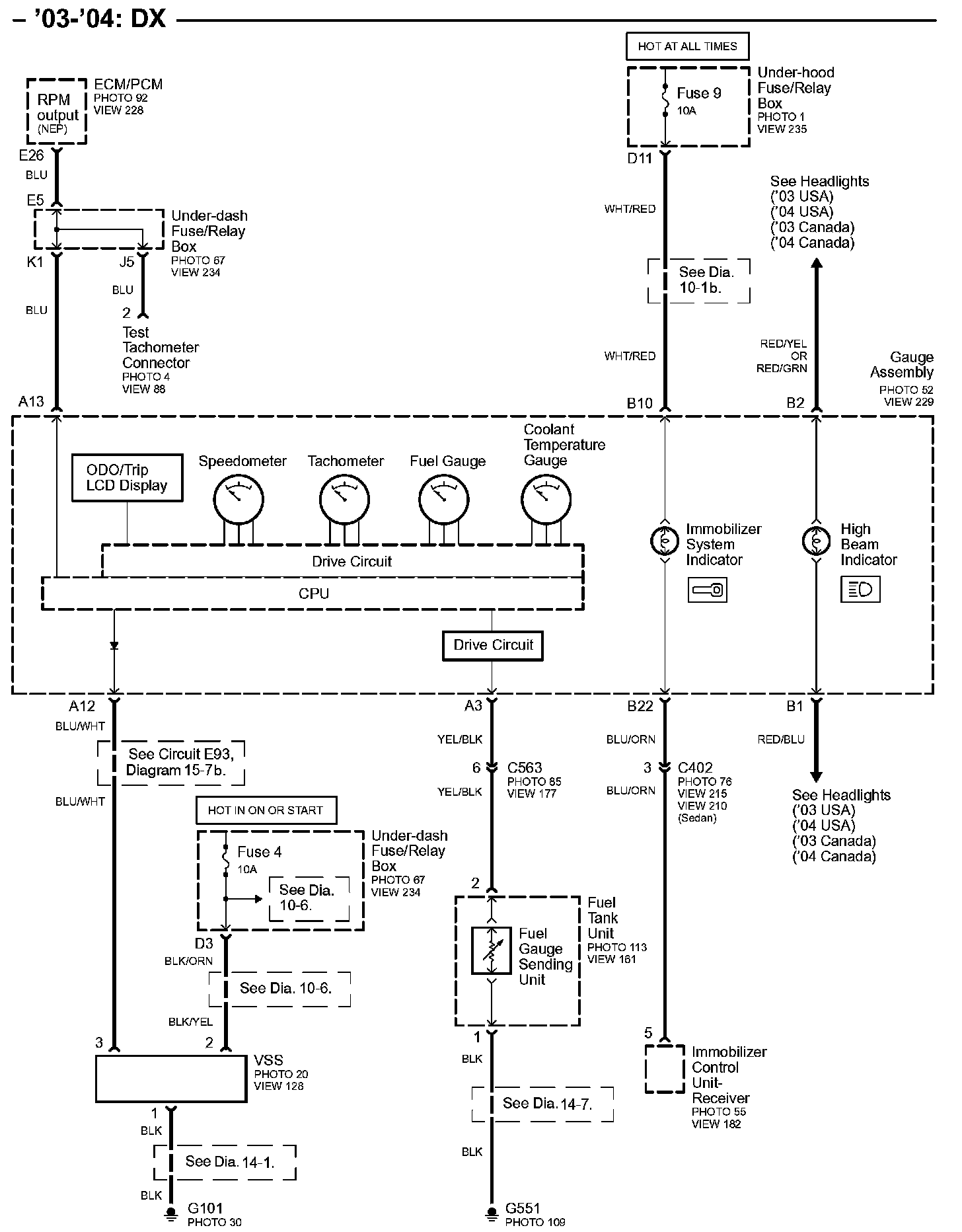

Diagram 80-7 ('03-'04: DX):

Diagram 80-8 ('03-'05: DX):

Diagram 80-9 ('03-'04: DX):

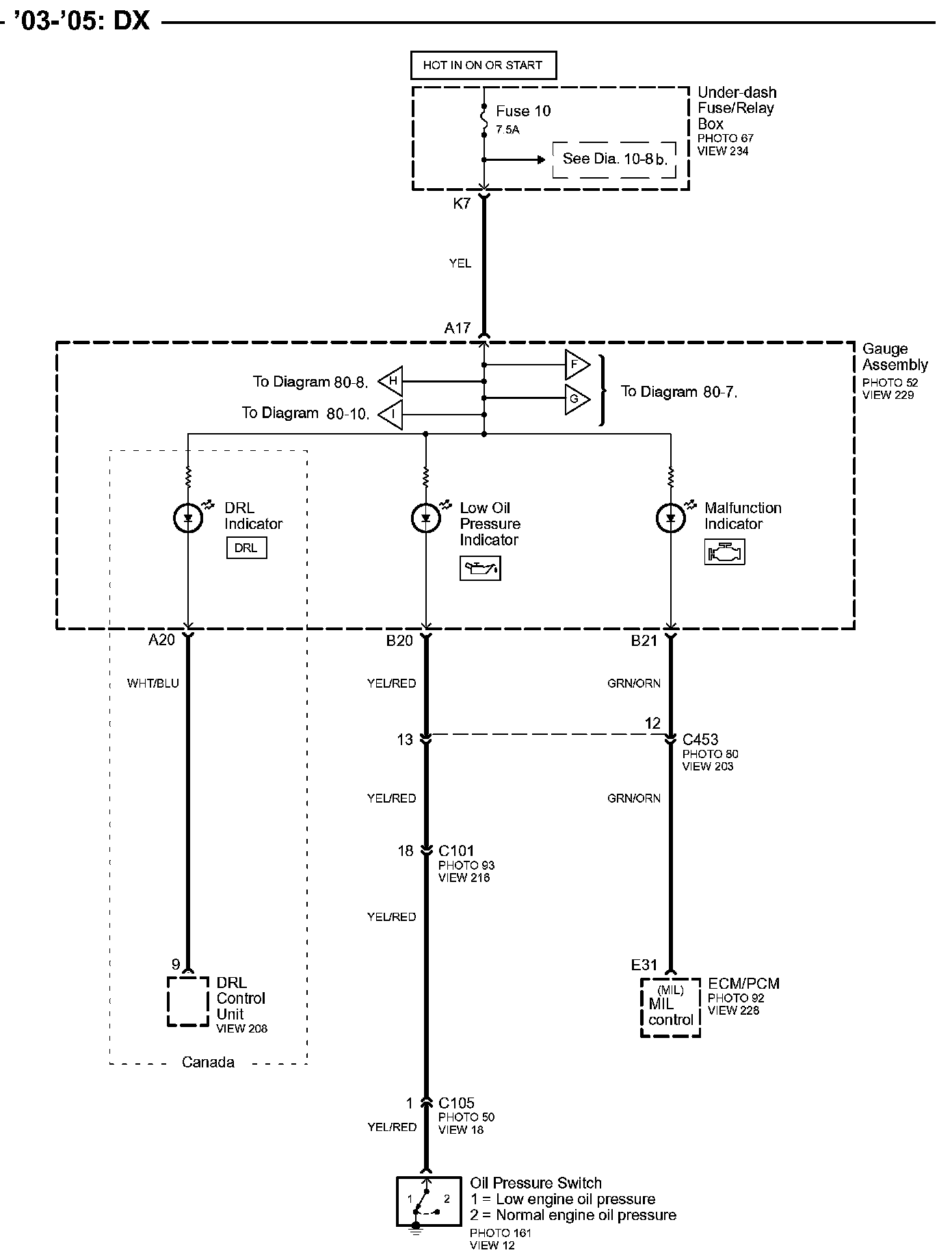

Diagram 80-10 ('03-'05: DX):

Diagram 80-12 ('03-'05: HX, LX, EX):

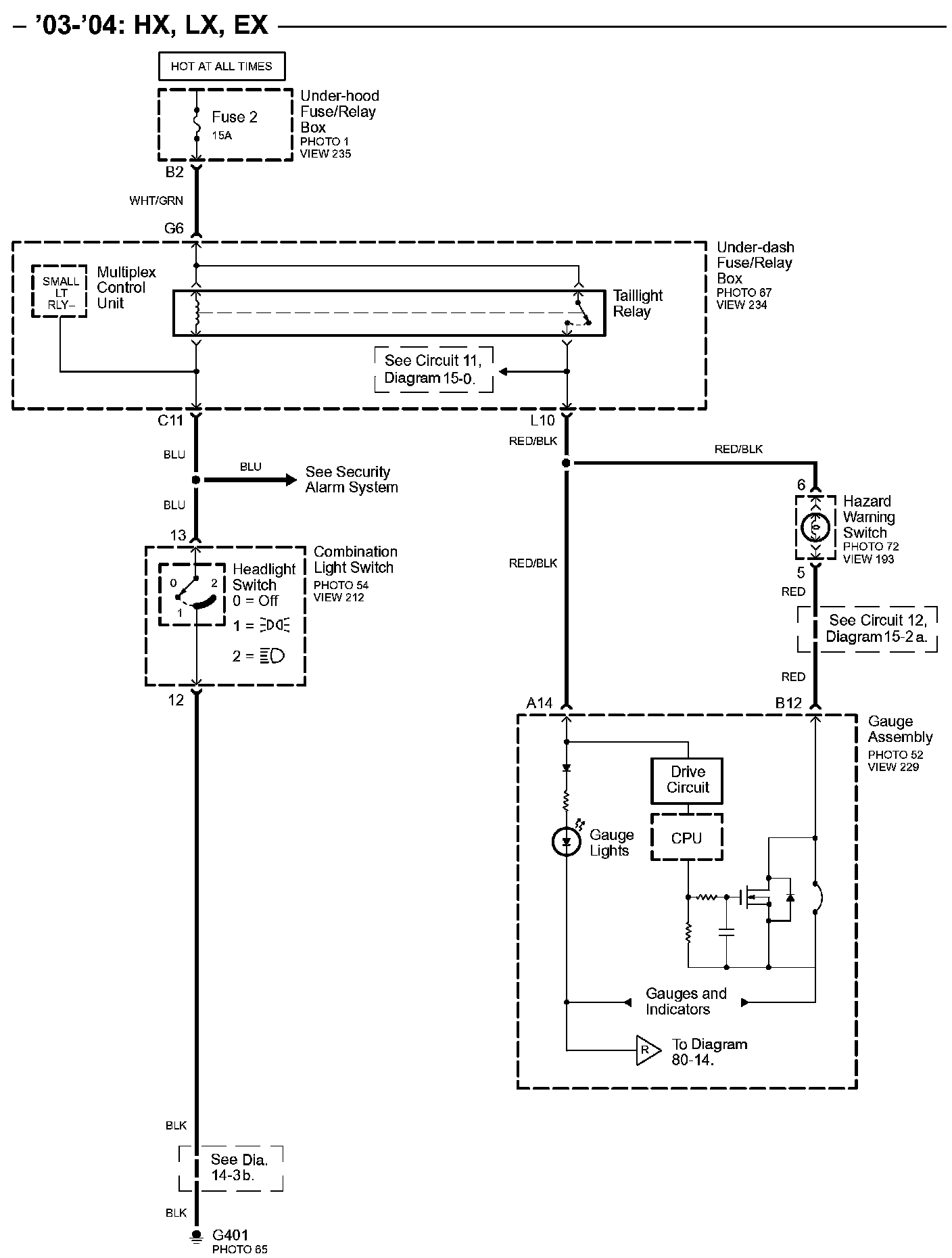

Diagram 80-13 ('03-'04: HX, LX, EX):

Diagram 80-14 ('03-'05: HX, LX, EX):

Diagram 80-15 ('03-'04: HX, LX, EX):

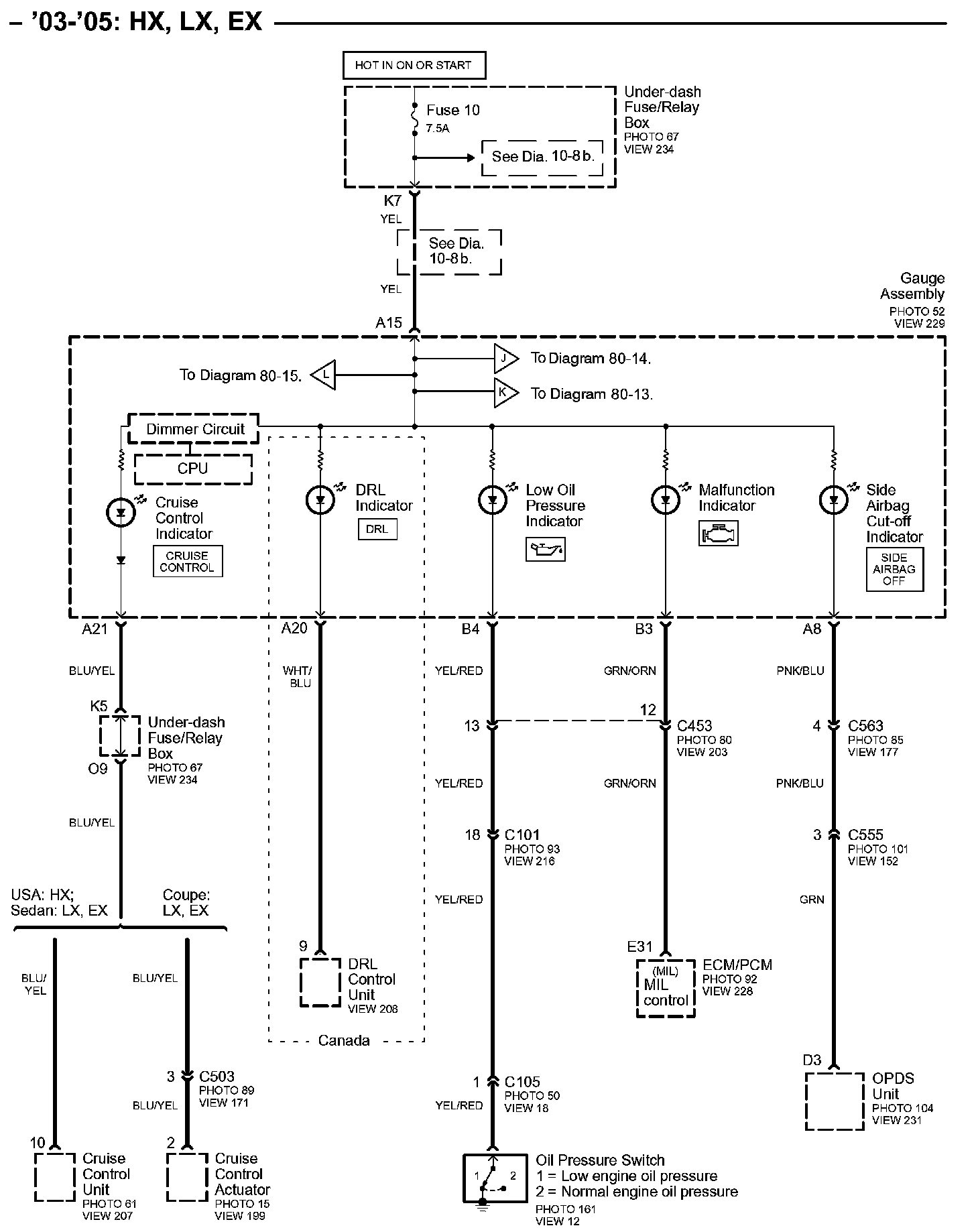

Diagram 80-16 ('03-'05: HX, LX, EX):

Diagram 80-17 ('03-'04: HX, LX, EX):
