Home >> Honda >> 2003 >> Civic L4-1.7L CNG >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Lighting and Horns >> Combination Switch >> Diagrams

Combination Switch: Diagrams

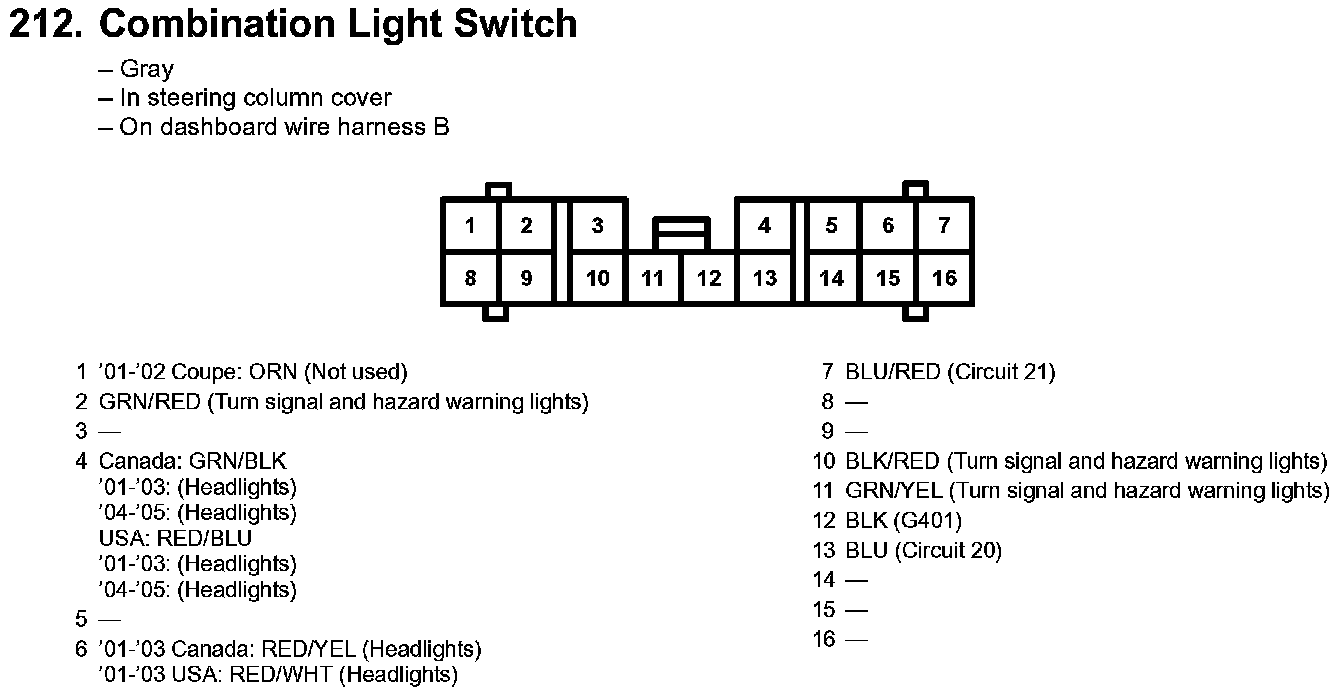

212. Combination Light Switch:
