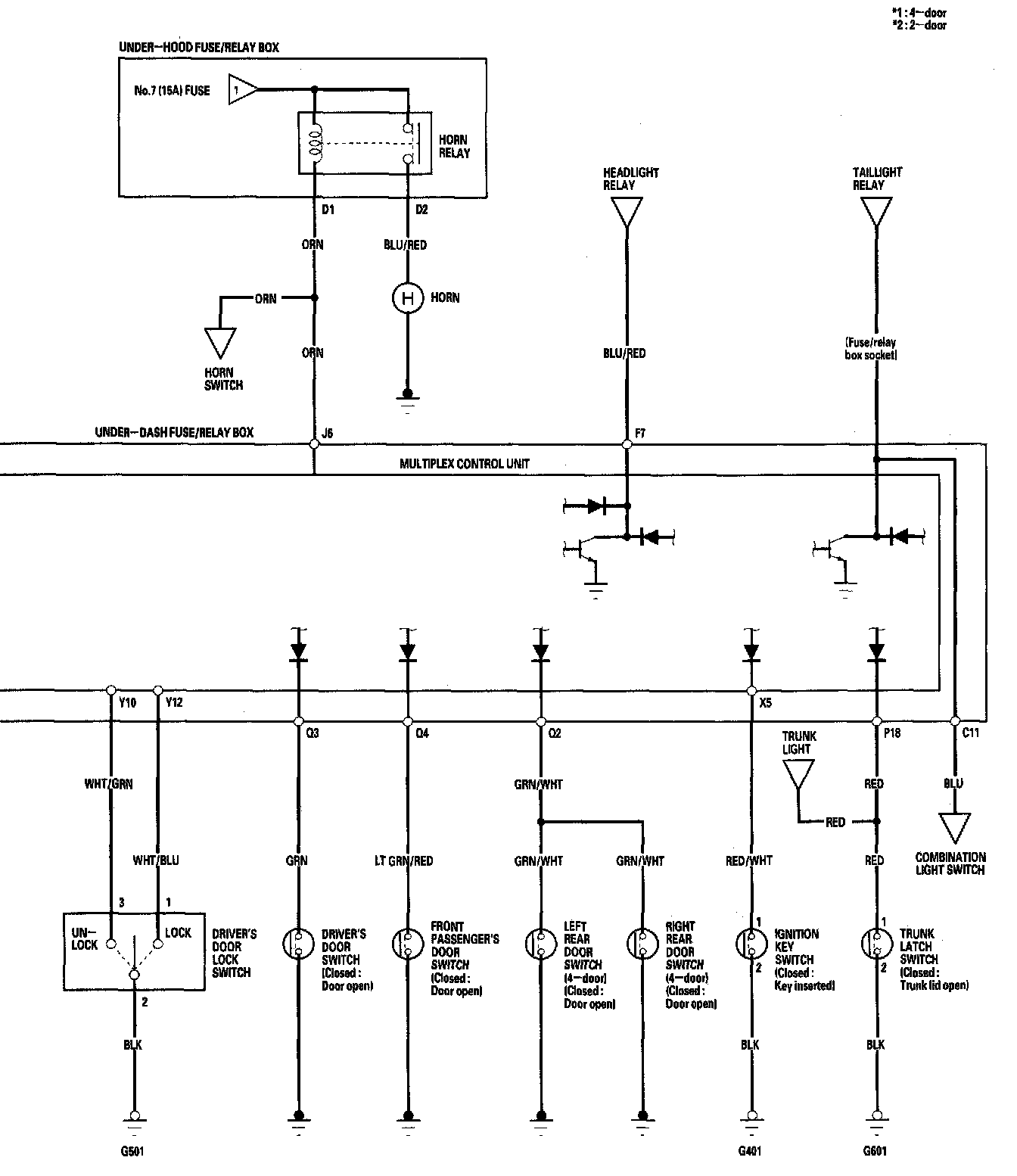

Circuit Diagram - Keyless/Power Door Lock System (Part 1 Of 2):
Circuit Diagram - Keyless/Power Door Lock System (Part 2 Of 2):
