Home >> Honda >> 2003 >> Civic L4-1668cc 1.7L SOHC (VTEC-E) MFI >> Repair and Diagnosis >> Power and Ground Distribution >> Grounding Point >> Application and ID

Grounding Point: Application and ID

Ground To Components Index (4-door):

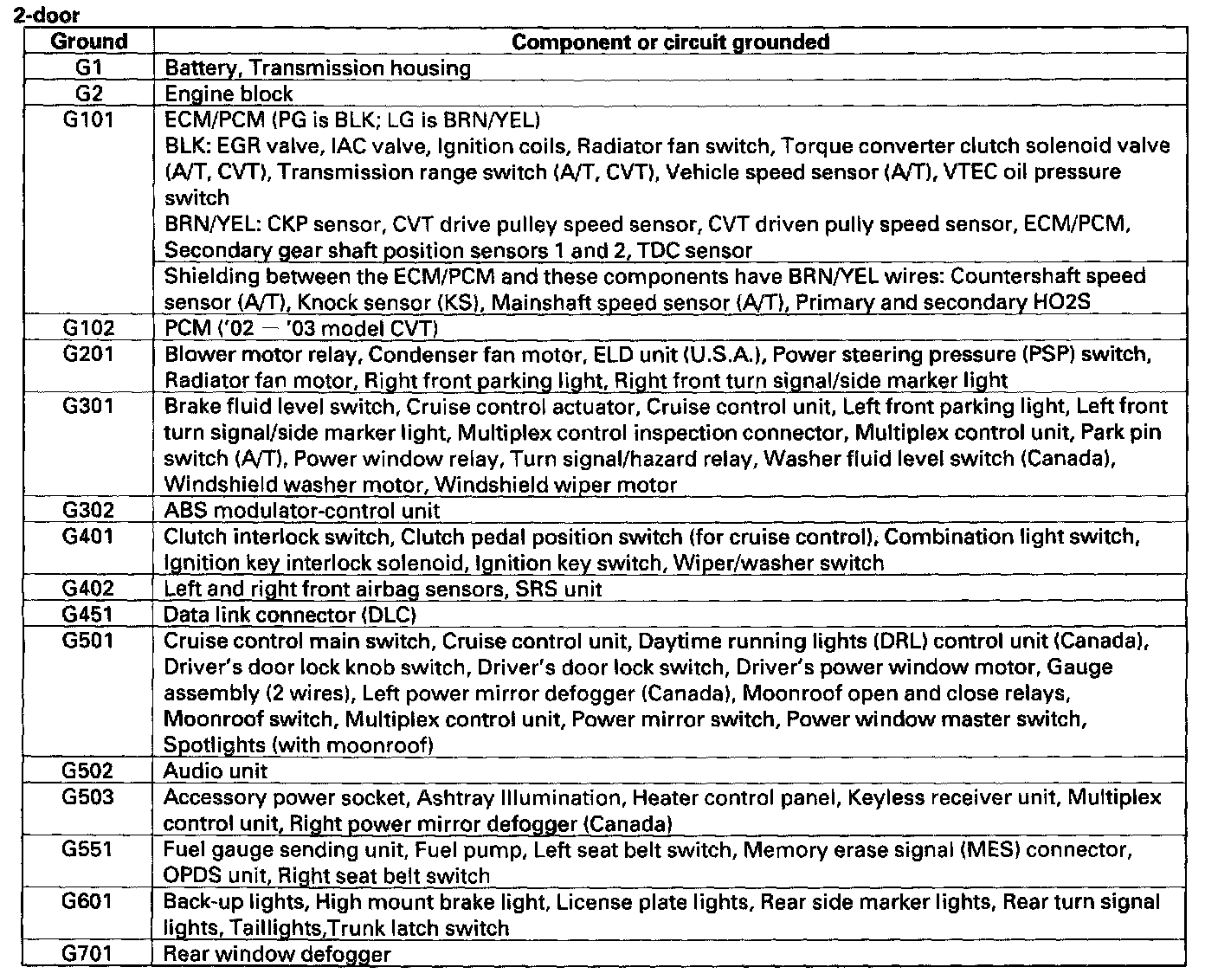

Ground To Components Index (2-door):
