Home
>>
Honda
>>
2003
>>
Civic Si L4-1998cc 2.0L DOHC EP3 (i-VTEC) PGMFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio, Stereo, and Compact Disc
>>
Speaker
Speaker

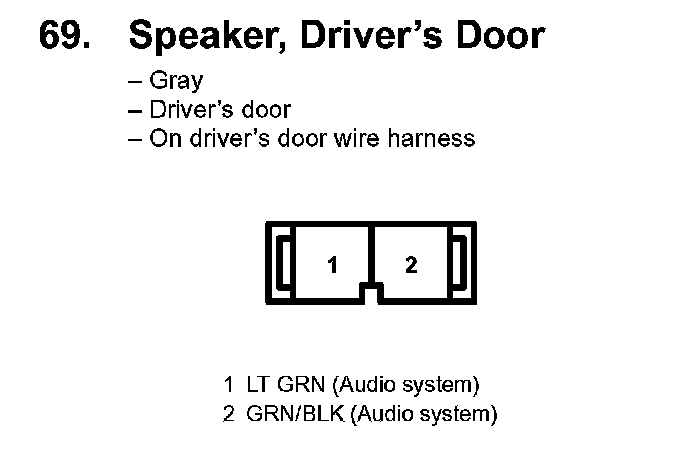

69. Speaker, Driver's Door:
70. Speaker, Left Rear:
71. Speaker, Passenger's Door:

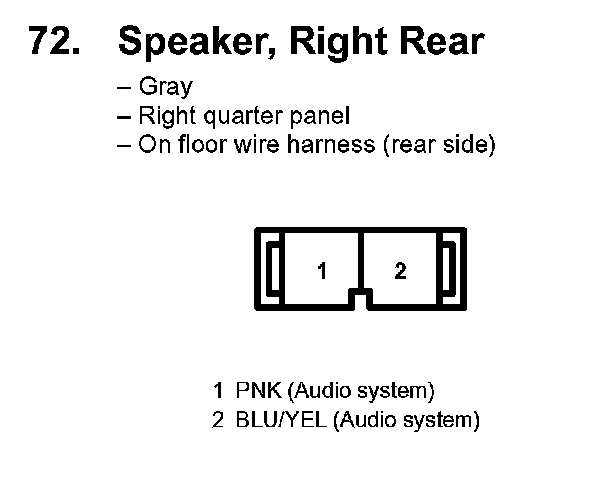

72. Speaker, Right Rear:
80. Tweeter, Left:
81. Tweeter, Right:
