Diagram Set 110 (Exterior Lights)

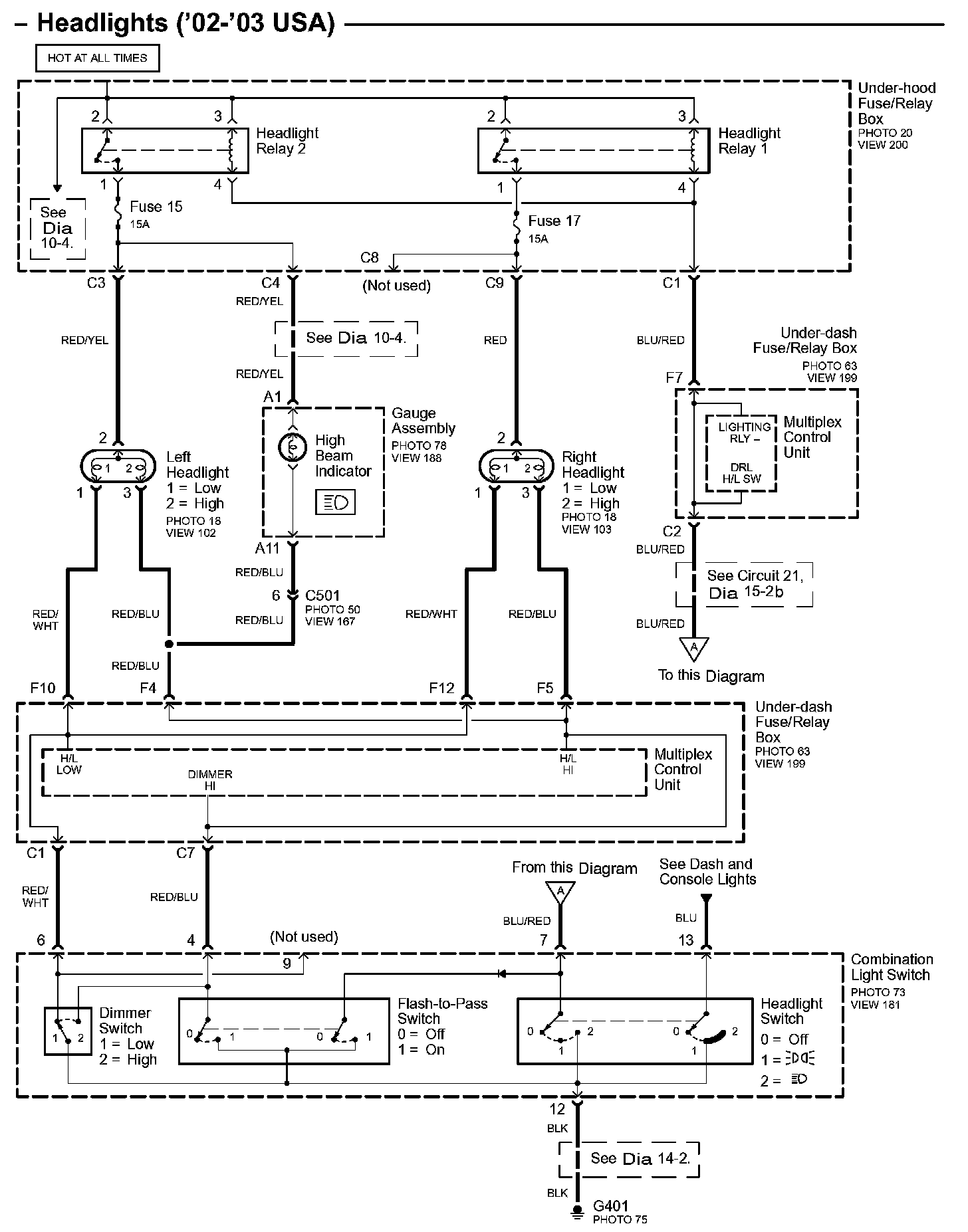

Diagram 110-0 ('02-'03 USA):

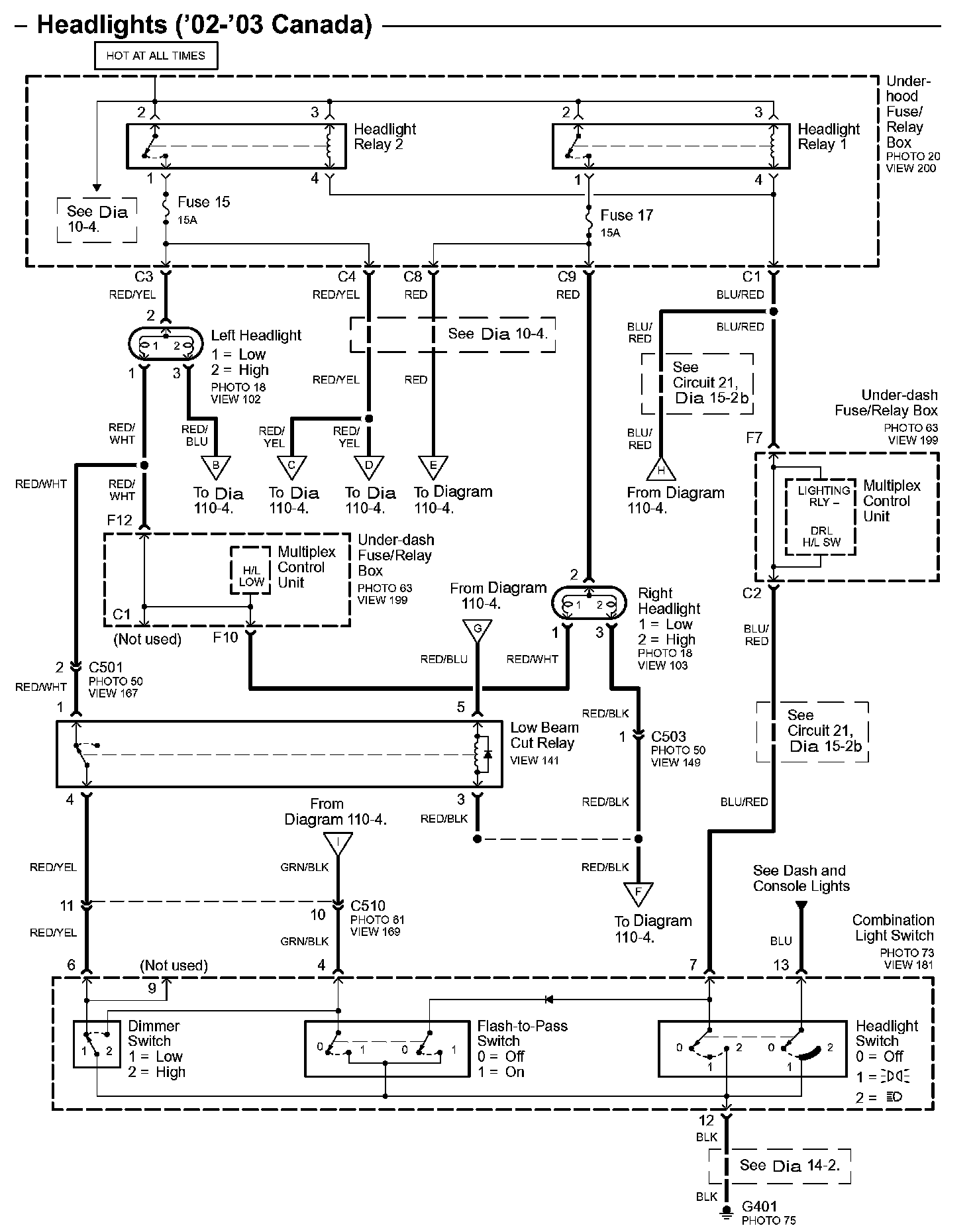

Diagram 110-4 ('02-'03 Canada):

Diagram 110-5 ('02-'03 Canada):

Diagram 110-10:

Diagram 110-11:

Diagram 110-12:

Diagram 110-13:

Diagram 110-14:

Diagram 110-15 (USA: Honda Accessory):

Diagram 110-16 (USA: Honda Accessory):
