Positive Crankcase Ventilation: Service and Repair

PCV Valve Replacement

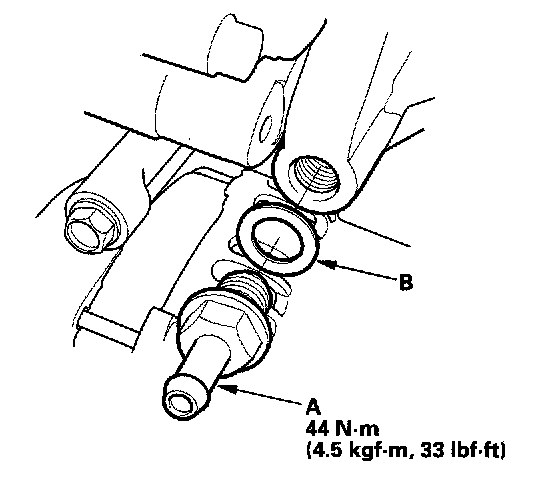

1. Disconnect the PCV hose.




2. Remove the PCV valve (A).
3. Install the parts in the reverse order of removal with a new gasket (B).
