Electrical Diagrams

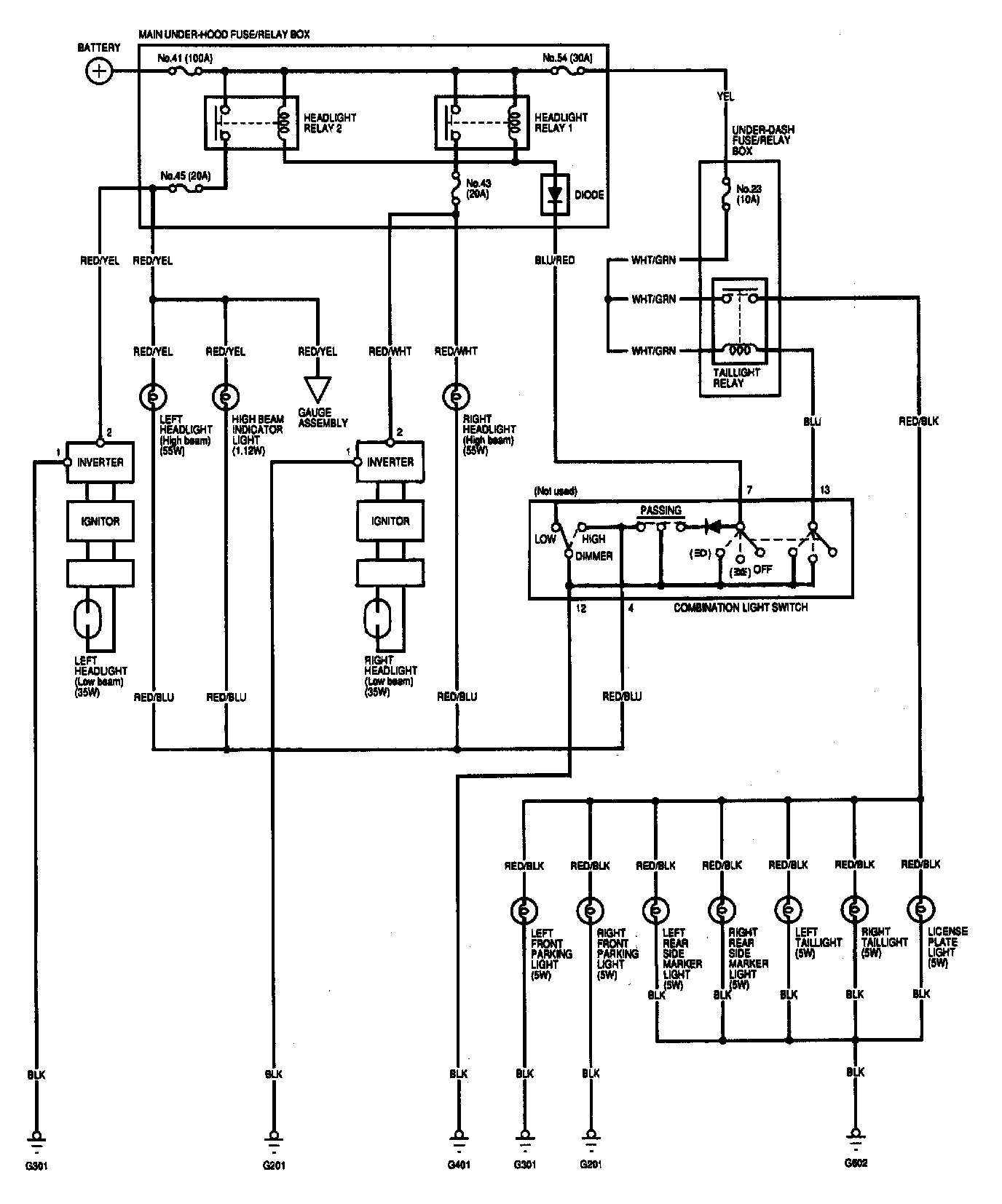

Exterior Lights - Circuit Diagram (USA):



Exterior Lights - Circuit Diagram (Canada):



Exterior Lights - Circuit Diagram (Canada):
