Wiper Relay: Locations

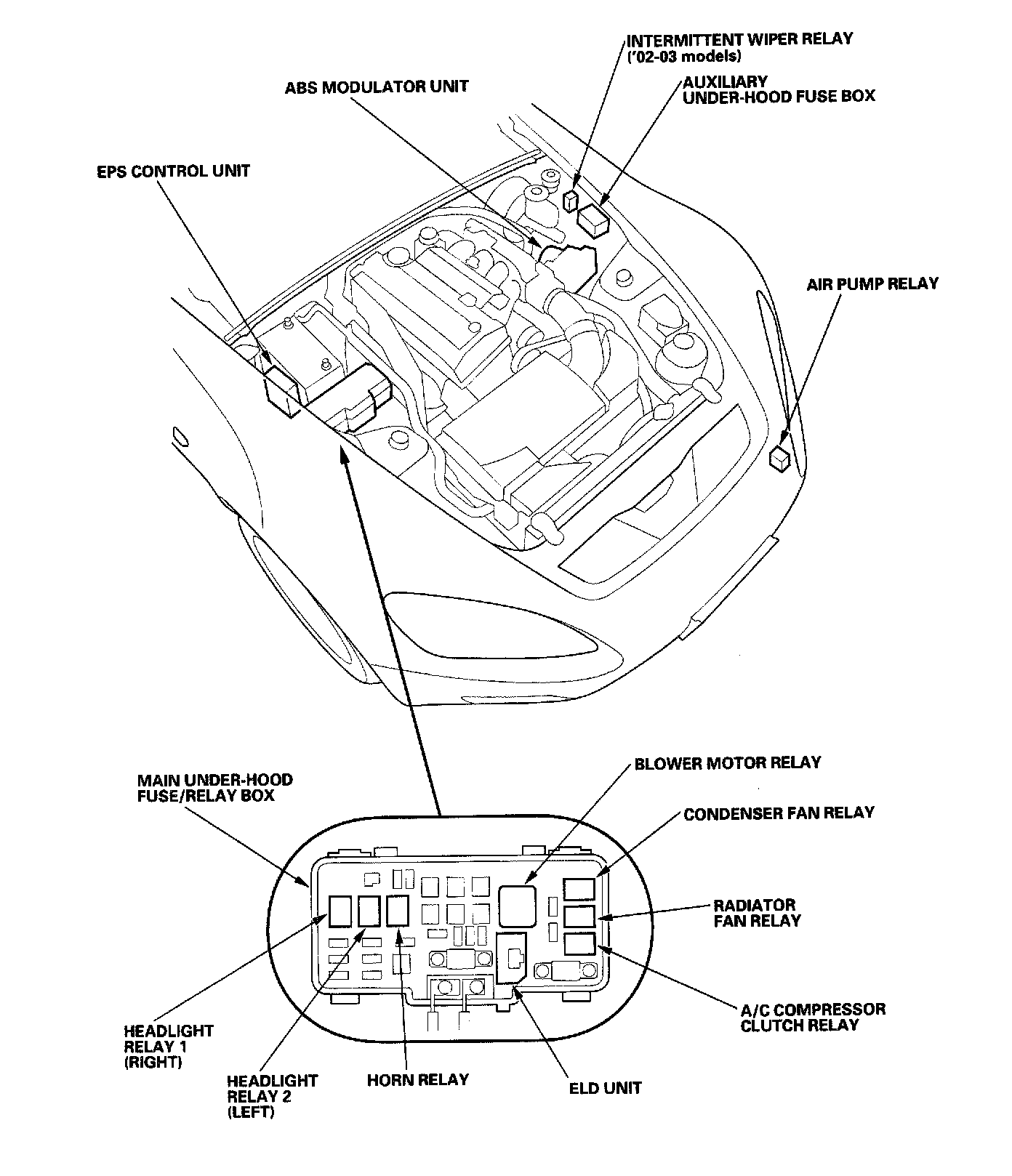

Relay And Control Unit Locations - Engine Compartment:



Relay And Control Unit Locations - Dashboard:



Wiper/Washer Component Location Index:



23. Left Rear of Engine Compartment:
