Cylinder Head Assembly
Cylinder Head Assembly

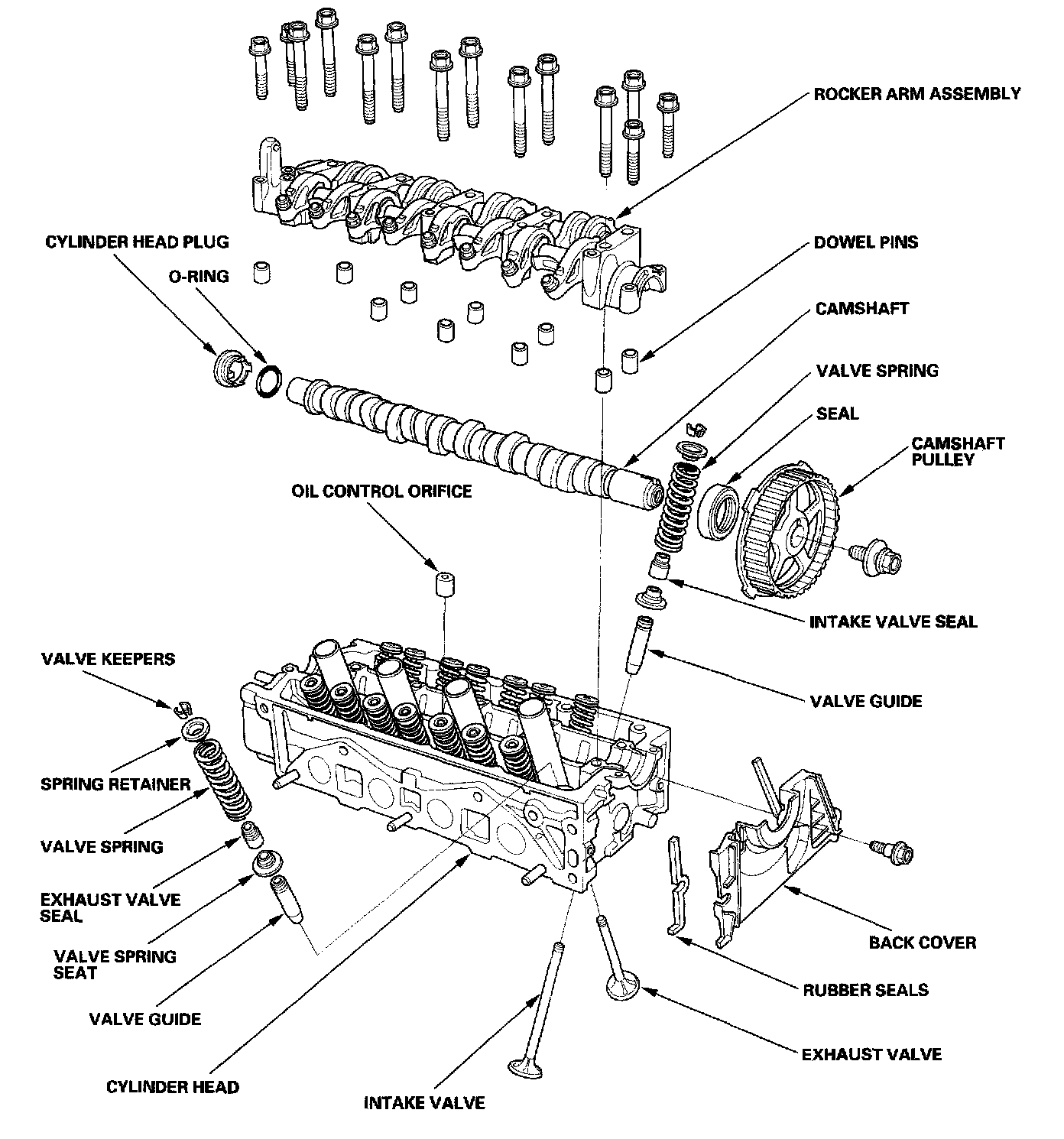

Component Location Index - Part 1:

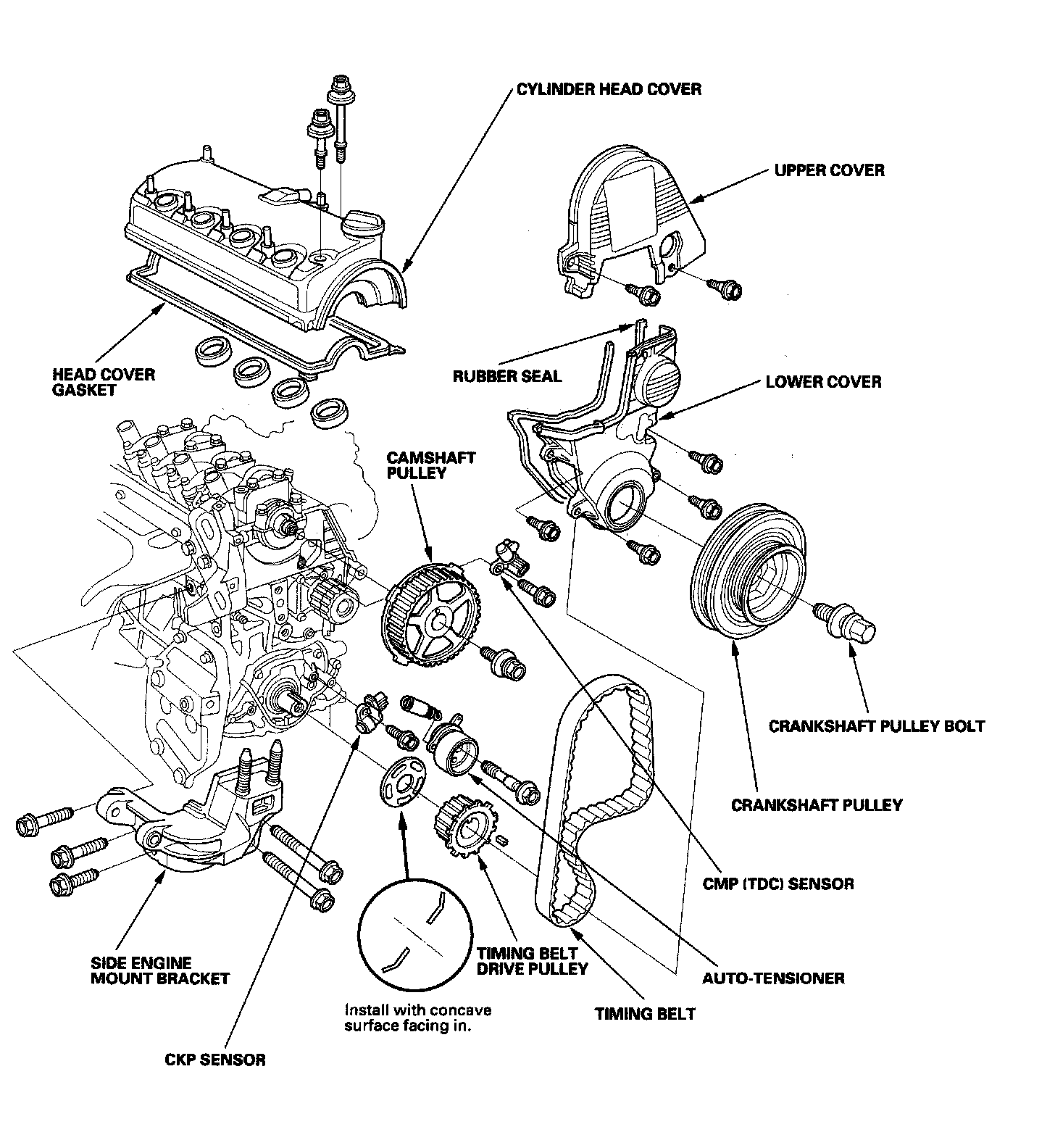

Component Location Index - Part 2:
Component Location Index - Part 3:
