Multiple Junction Connector: Diagrams
217. C102 (Junction Connector):

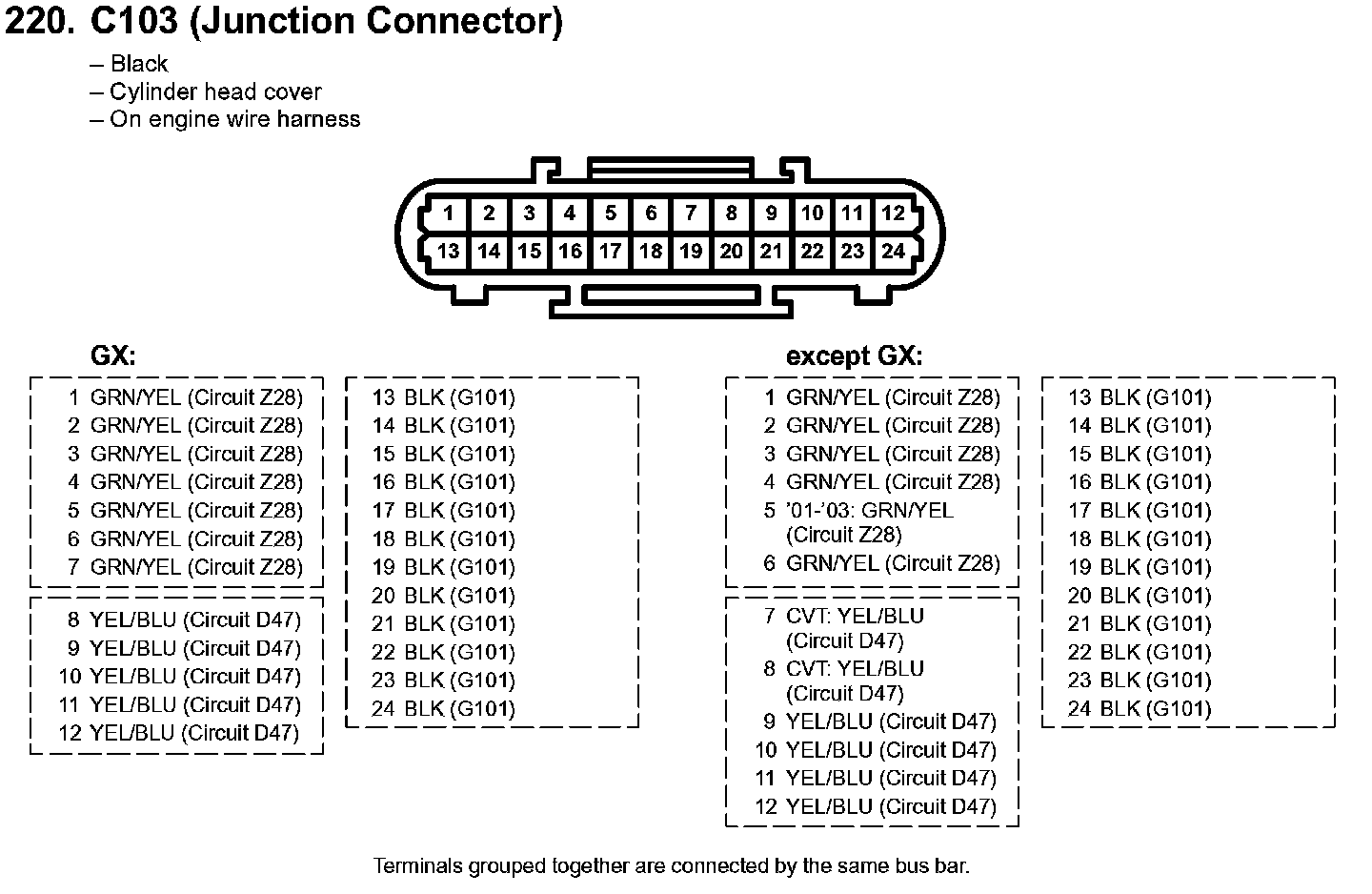

220. C103 (Junction Connector):
221. C104 (Junction Connector):
