A/T - Got DTC P0706? Check Switch Combinations

SOURCE:
Honda Service News November 2004

TITLE:
Got A/T DTC P0706? Check the Switch Combinations

APPLIES TO:
2004-05 Civic with A/T

SERVICE TIP:

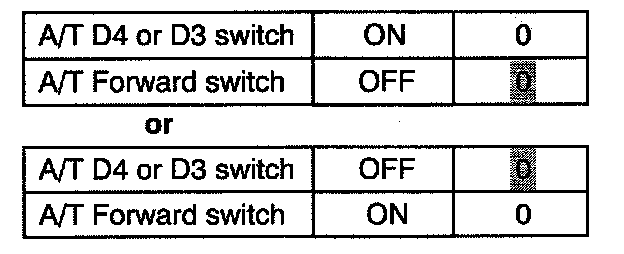

Got a A/T DTC P0706 (open in transmission range switch circuit)? Hook up the HDS, and check the A/T Freeze Data for these possible switch combinations:



Normally, you'll see either D4 or D3 and the Forward switches on. But if you get an oddball combination like shown here, then refer to section 14 of the S/M, and check the shift cable and the transmission range switch adjustments. If you still wind up with this DTC after doing these adjustments, then replace the transmission range switch.
