Home >> Honda >> 2004 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Trunk / Liftgate Switch

Trunk / Liftgate Switch

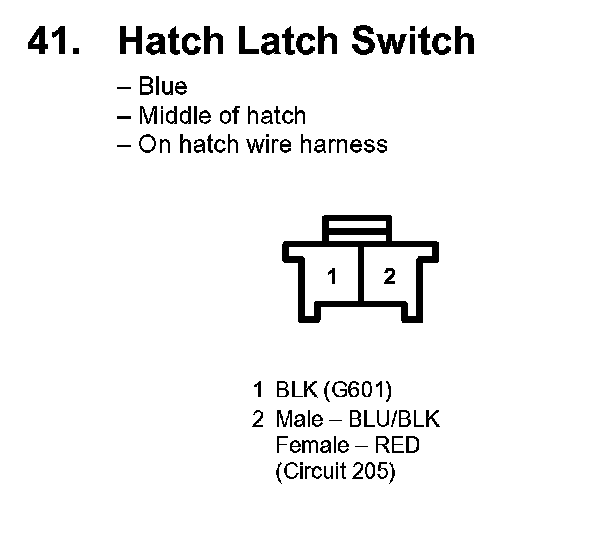

41. Hatch Latch Switch:
