Engine Compartment Wire Harness (Dashboard)

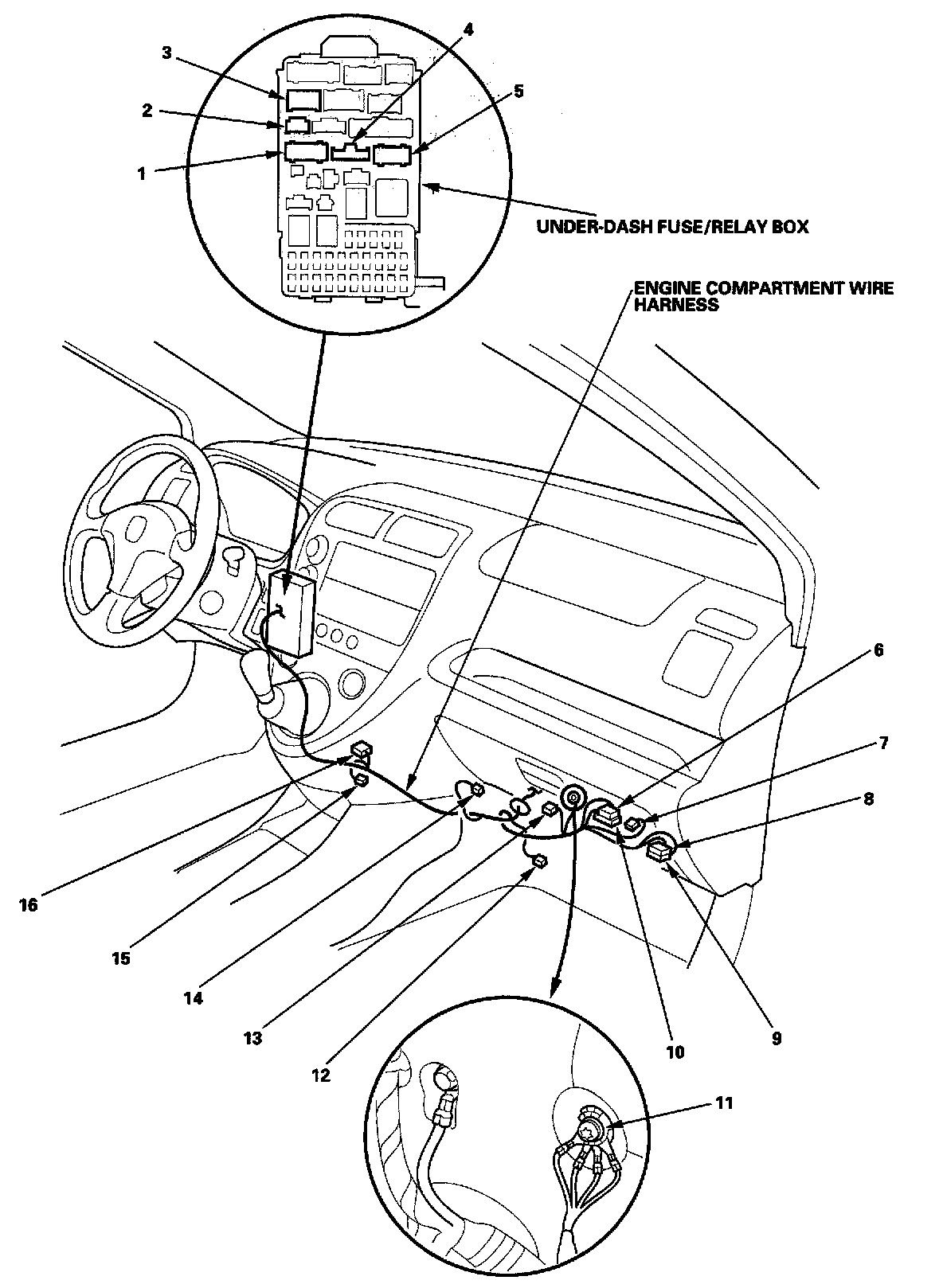

Harness Location View:



Engine Compartment Wire Harness (Dash Branch):



Harness Location View:



Engine Compartment Wire Harness(dashboard):
