P0451

DTC P0451: FTP Sensor Range/Performance Problem

Special Tools Required
Vacuum pump/gauge, 0 - 30 in.Hg A973X-041-XXXXX

1. Remove the fuel fill cap.
2. Turn the ignition switch ON(II).

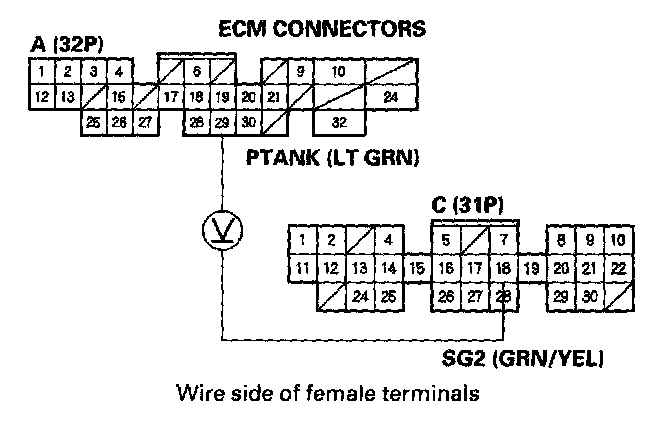

3. Monitor FTP sensor voltage with the HDS, or measure voltage between ECM connector terminals A29 and C18.

Is there about 2.5 V?

YES - Go to step 4.

NO - Replace the FTP sensor.

4. Turn the ignition switch OFF.




5. Disconnect the hose between the EVAP two way valve and the FTP sensor at the EVAP two way valve end.
6. Connect a vacuum pump to the open end of the hose.
7. Turn the ignition switch ON (II).
8. Monitor FTP sensor voltage with the HDS, or measure voltage between ECM connector terminals A29 and C18, and very slowly to squeeze the vacuum pump.
9. The voltage should smoothly drop from about 2.5 V down to about 1.5 V. Stop applying vacuum when the voltage drops to about 1.5 V or damage to the FTP sensor may occur.

Does the voltage drop to about 1.5 V and hold?

YES - Intermittent failure, system is OK at this time. Check for poor connections at the FTP sensor and the ECM.

NO - Replace the FTP sensor.
