Home >> Honda >> 2004 >> S2000 L4-2.2L >> Repair and Diagnosis >> Cruise Control >> Cruise Control Module >> Locations

Cruise Control Module: Locations

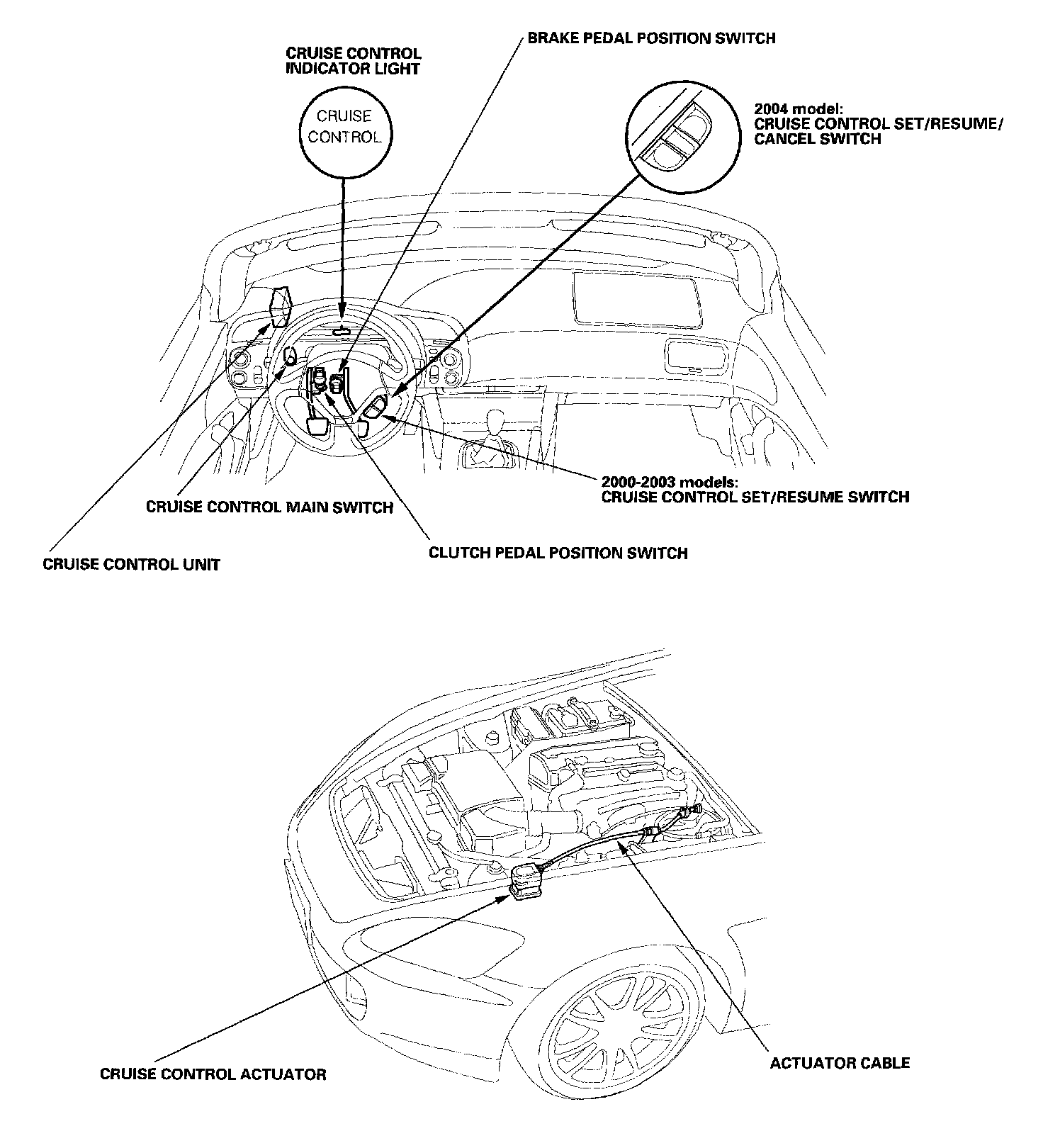

Cruise Control - Component Location Index:

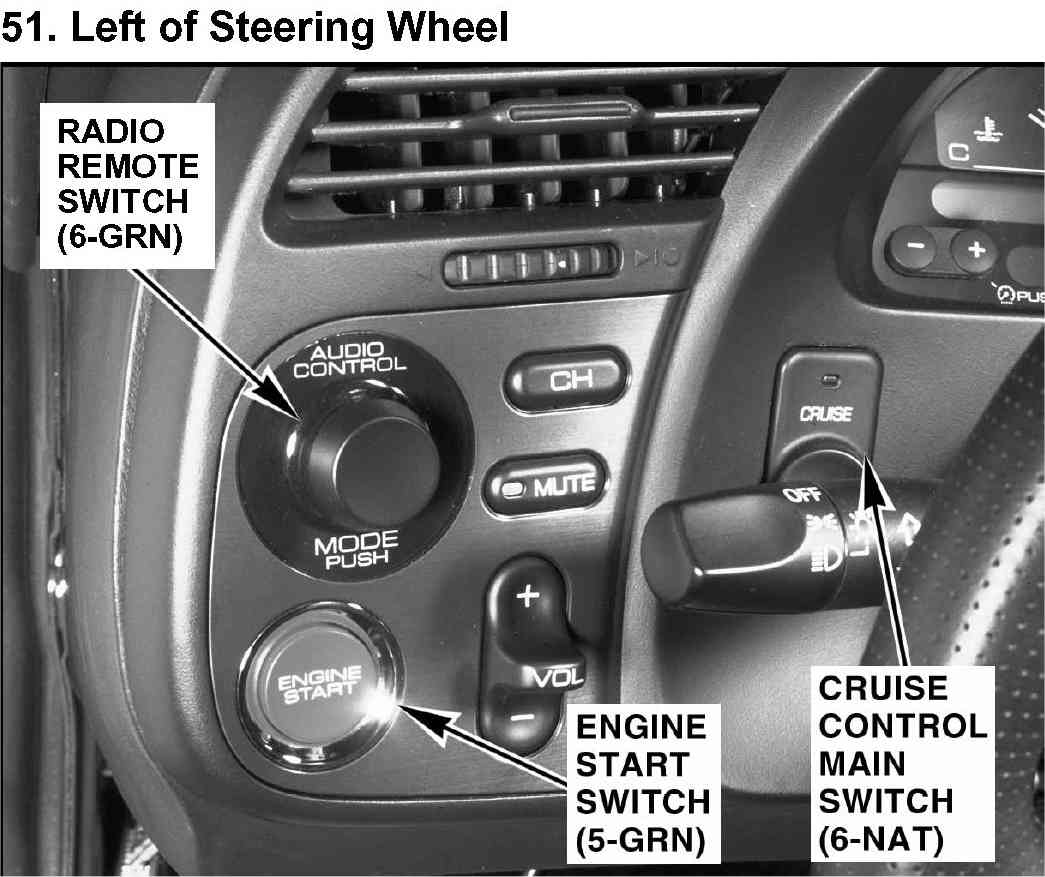

51. Left of Steering Wheel:

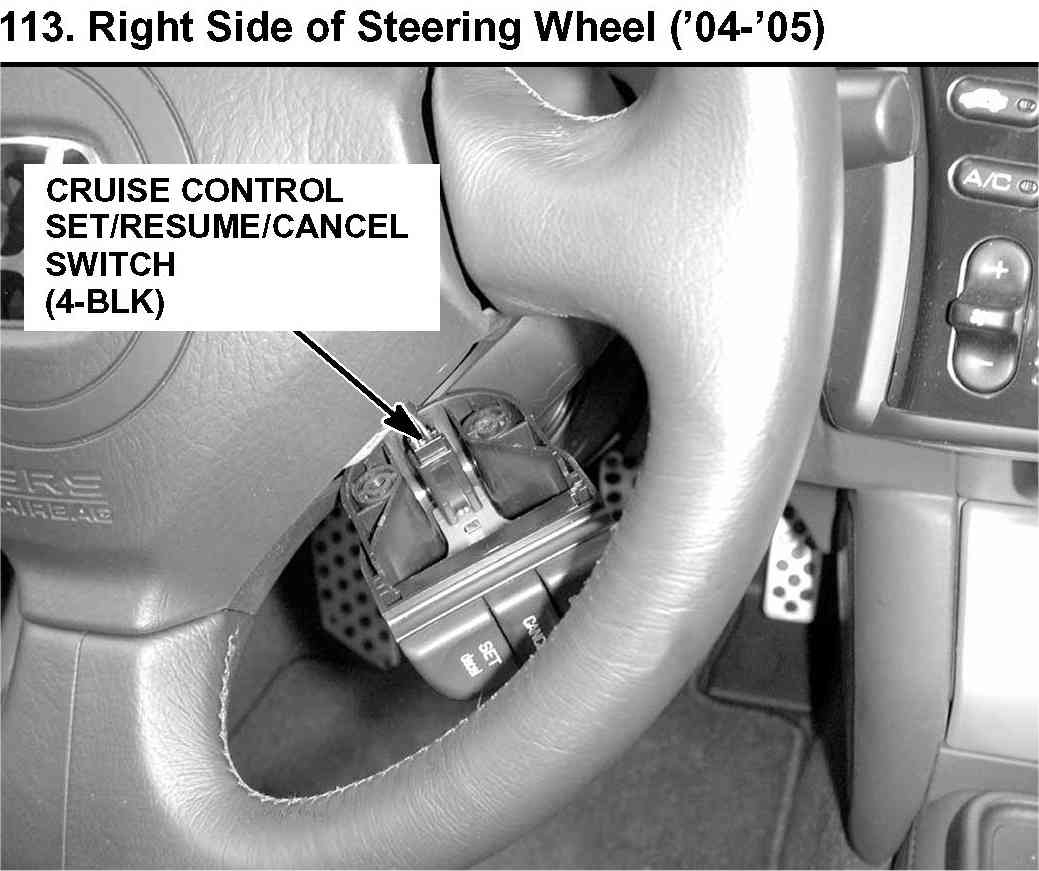

113. Right Side of Steering Wheel ('04-'05):
