Cruise Control Servo Cable: Service and Repair

Cruise Control Actuator Cable Replacement

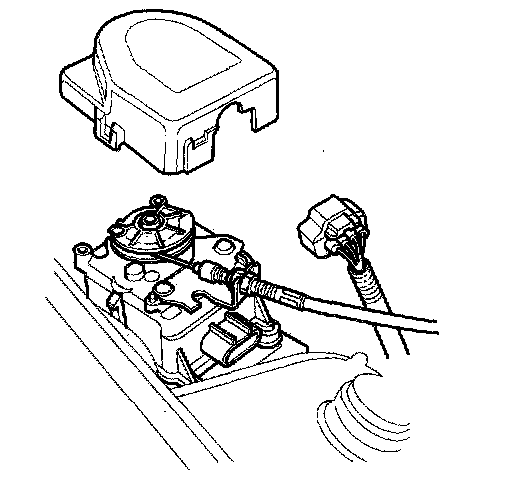

1. Remove the actuator cover, and disconnect the 4P connector from the cruise control actuator.




2. Disconnect the actuator cable end (A), and remove the cable (B) from the cruise control actuator.




3. Remove the accelerator pedal assembly.




4. Disconnect the actuator cable end (A) from the arm (B) on the accelerator pedal assembly (C).
5. Replace the actuator cable, and install the new cable in the reverse order of removal.
6. Adjust the actuator cable on the cruise control actuator side.
