Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
2004
>>
S2000 L4-2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Instrument Cluster / Carrier
Instrument Cluster / Carrier

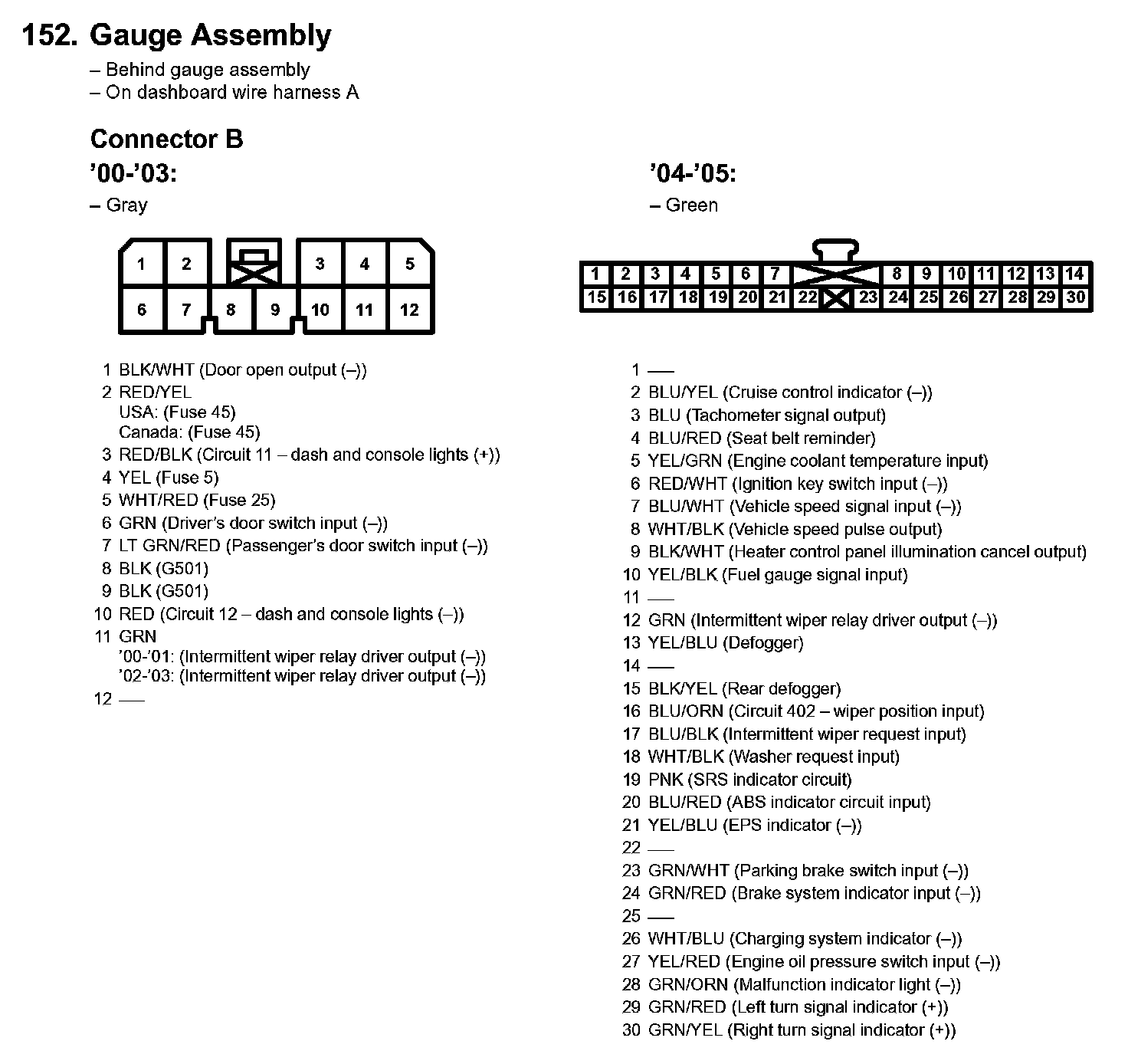

152. Gauge Assembly:
152. Gauge Assembly:
