Home >> Honda >> 2004 >> S2000 L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Tail Lamp

Tail Lamp

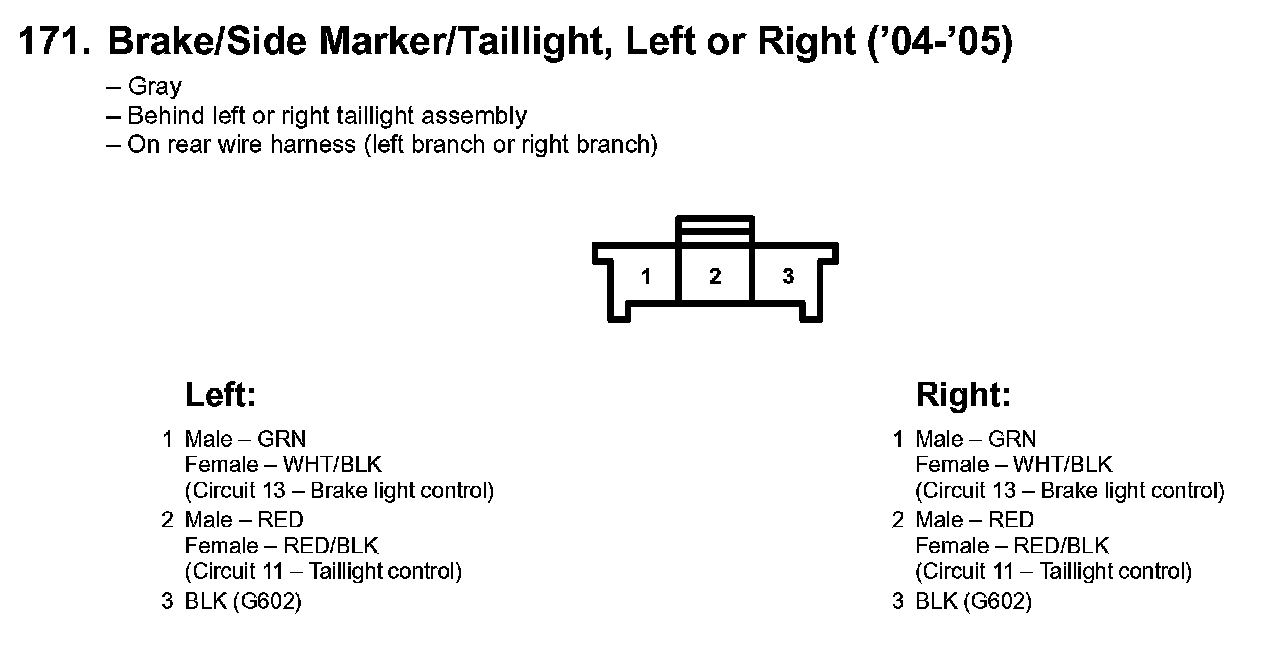

171. Brake/Side Marker/Taillight, Left Or Right:
