Turn Signal Lamp
Turn Signal Lamp

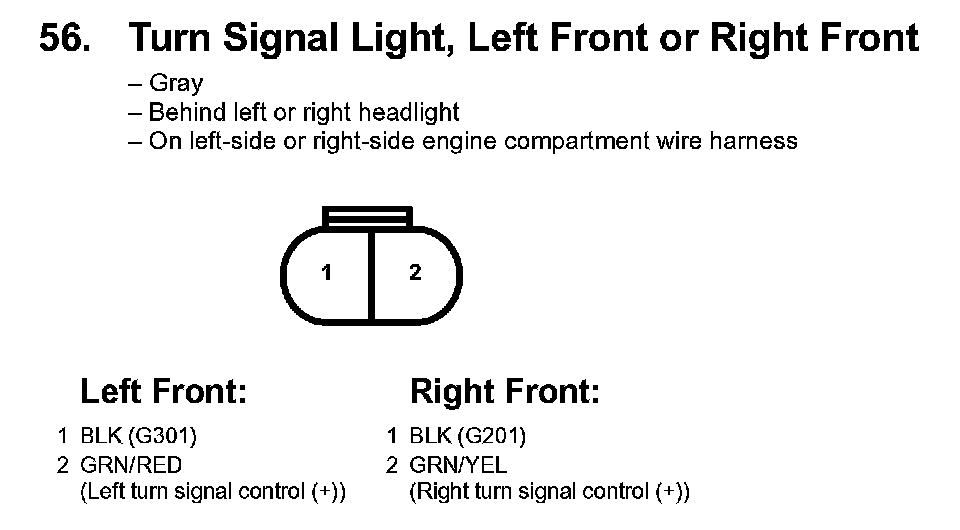

56. Turn Signal Light, Left Front Or Right Front:

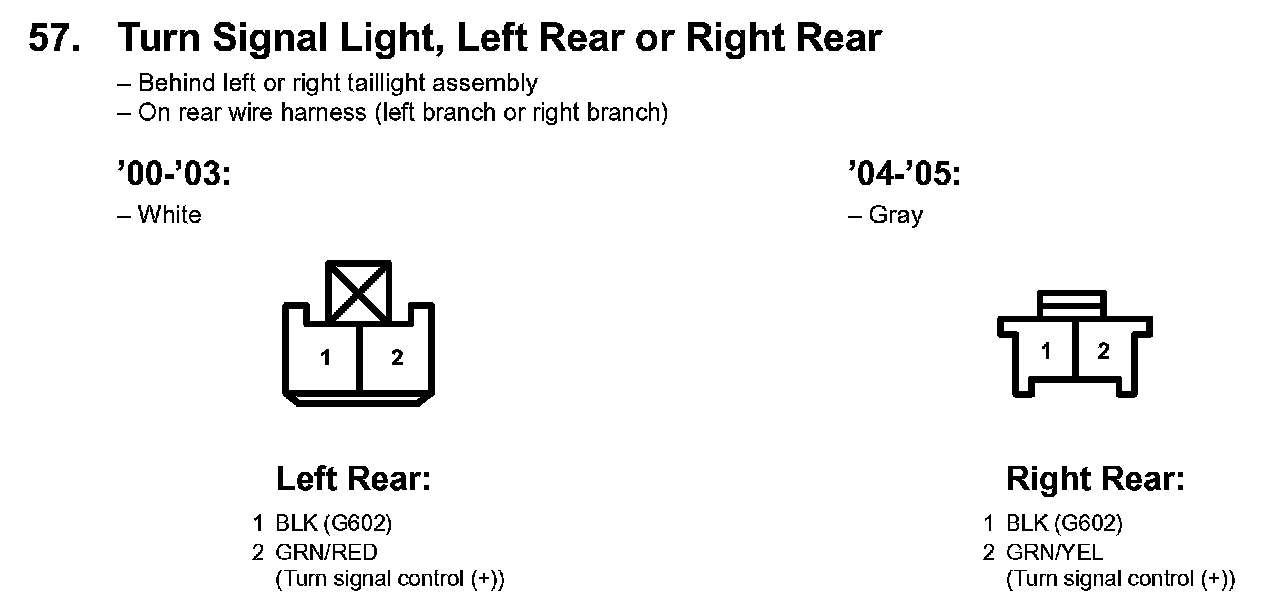

57. Turn Siqnal Liqht, Left Rear Or Riqht Rear:
58. Turn Signal Light, Left Side Or Right Side:
