Wheel Speed Sensor
Wheel Speed Sensor

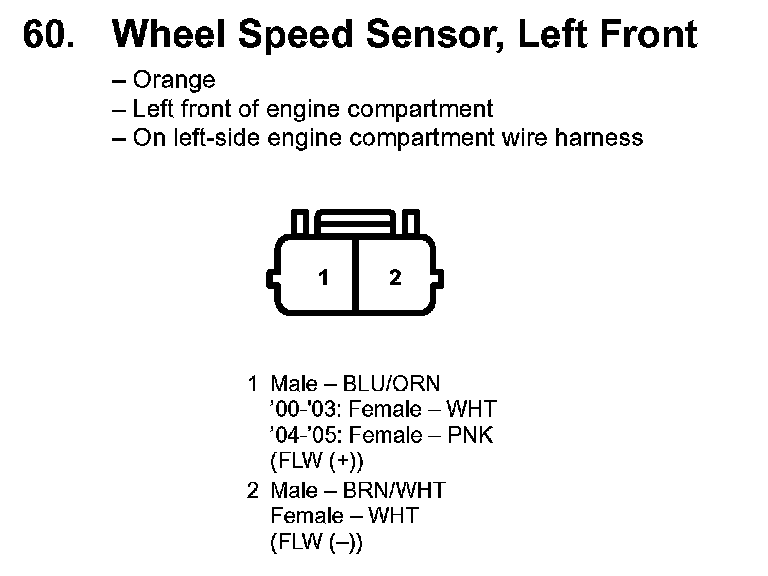

60. Wheel Speed Sensor, Left Front:

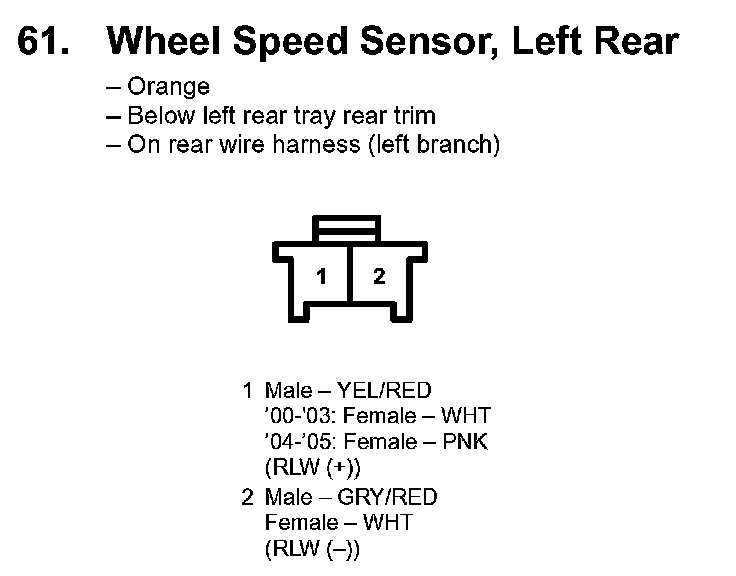

61. Wheel Speed Sensor, Left Rear:
62. Wheel Speed Sensor, Right Front:
63. Wheel Speed Sensor, Right Rear:
