Antenna Amplifier Sub-Harness
Antenna Amplifier Sub-Harness

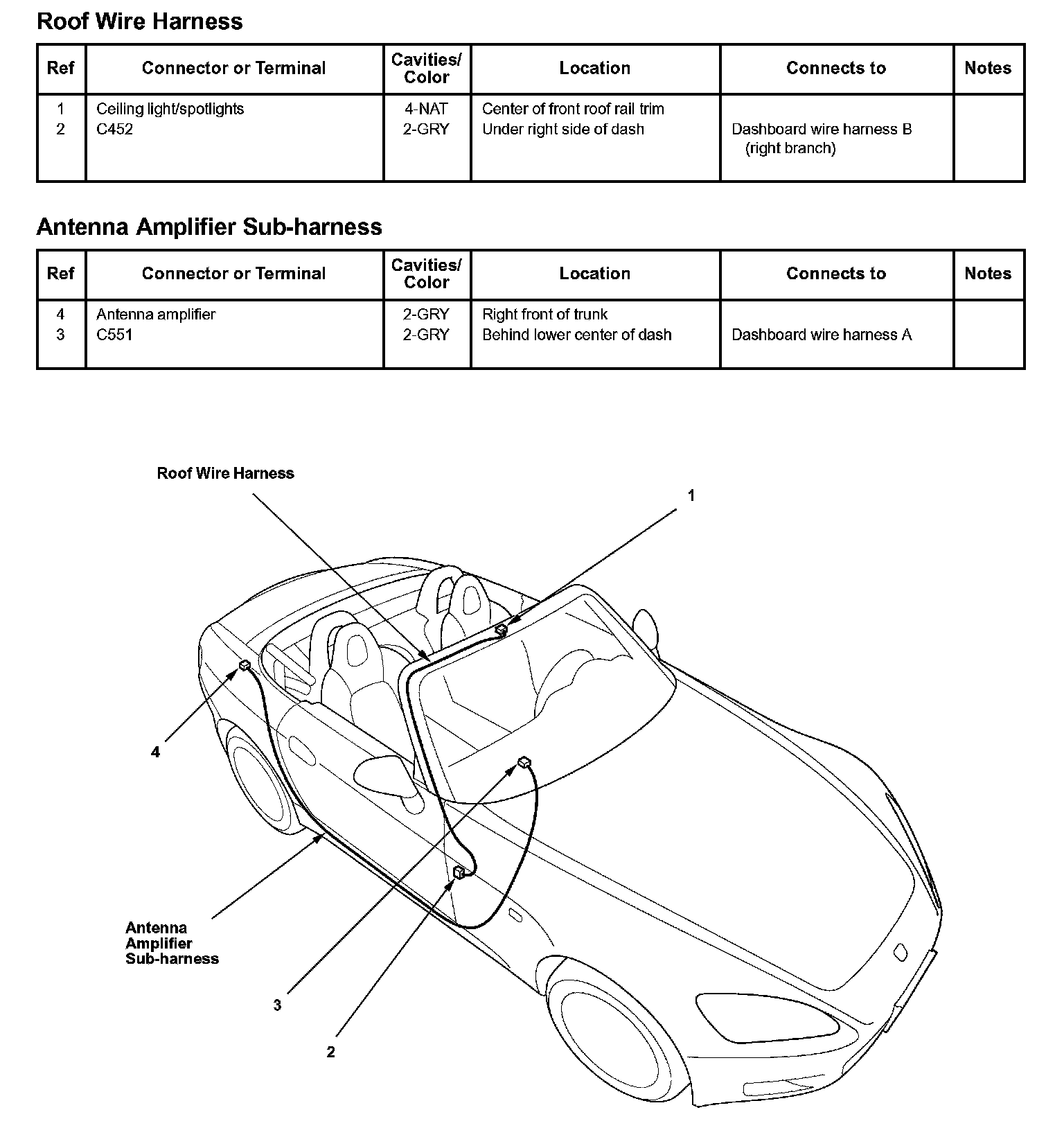

Roof Wire Harness/Antenna Amplifier Sub-harness:
Rear Wire Harness (Right Branch)/Roof Wire Harness:
