Dashboard Wire Harness B (left branch)
Dashboard Wire Harness B (left branch)

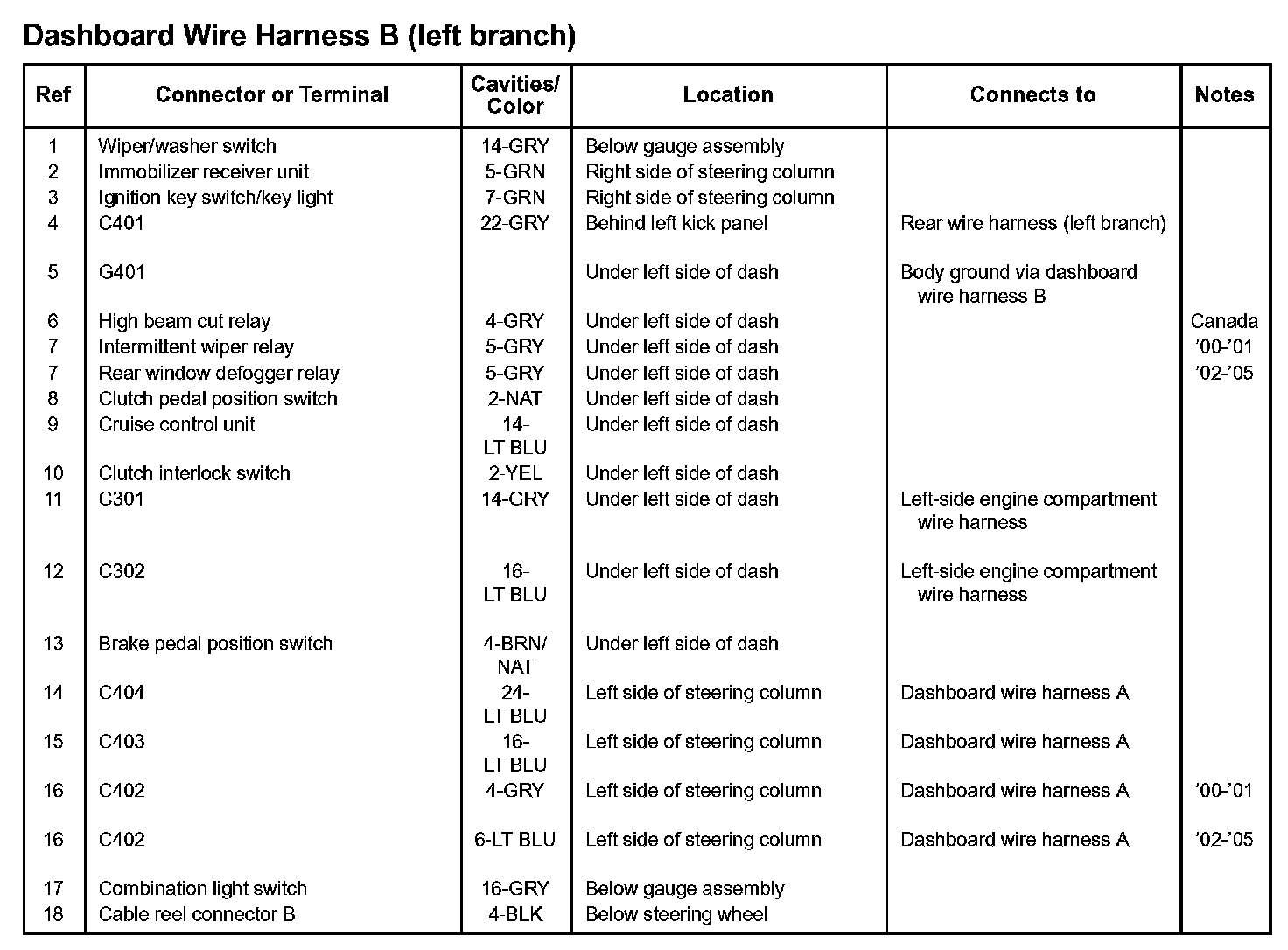

Dashboard Wire Harness B (Left Branch):
Harness Location View:

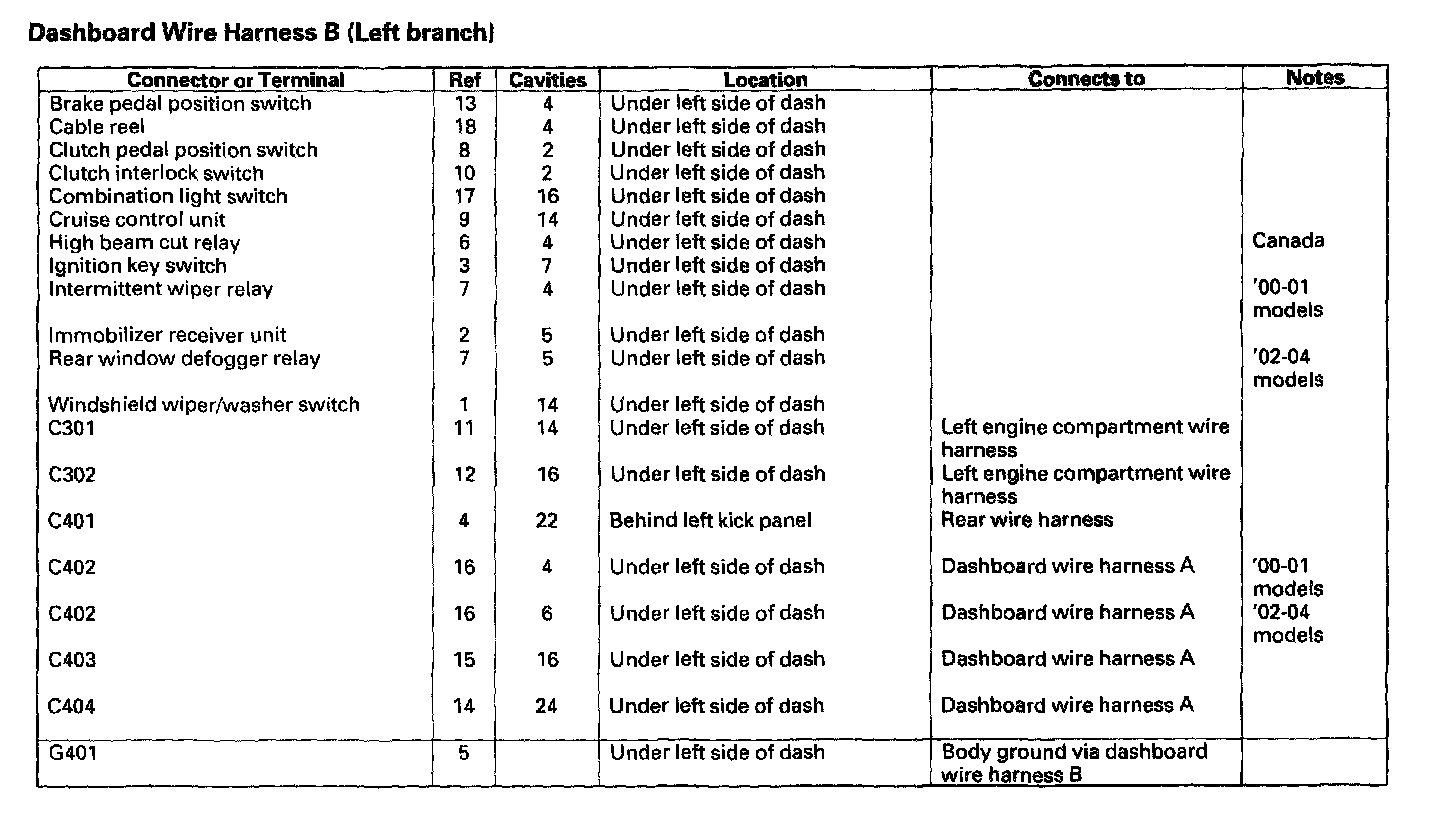

Dashboard Wire Harness B (Left Branch):
Harness Location View:
