Rear Wire Harness (Left branch)

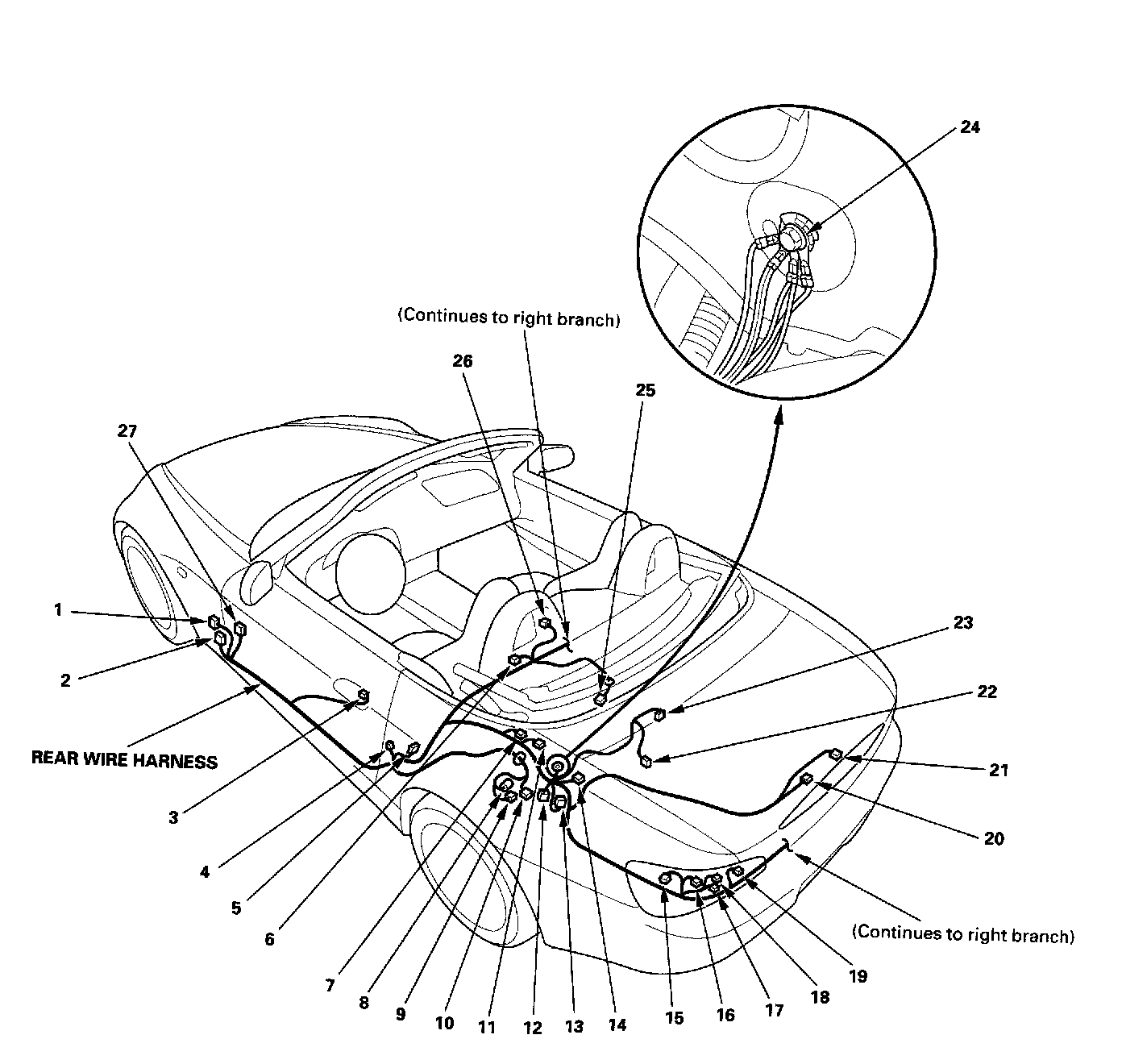

Harness Location View:

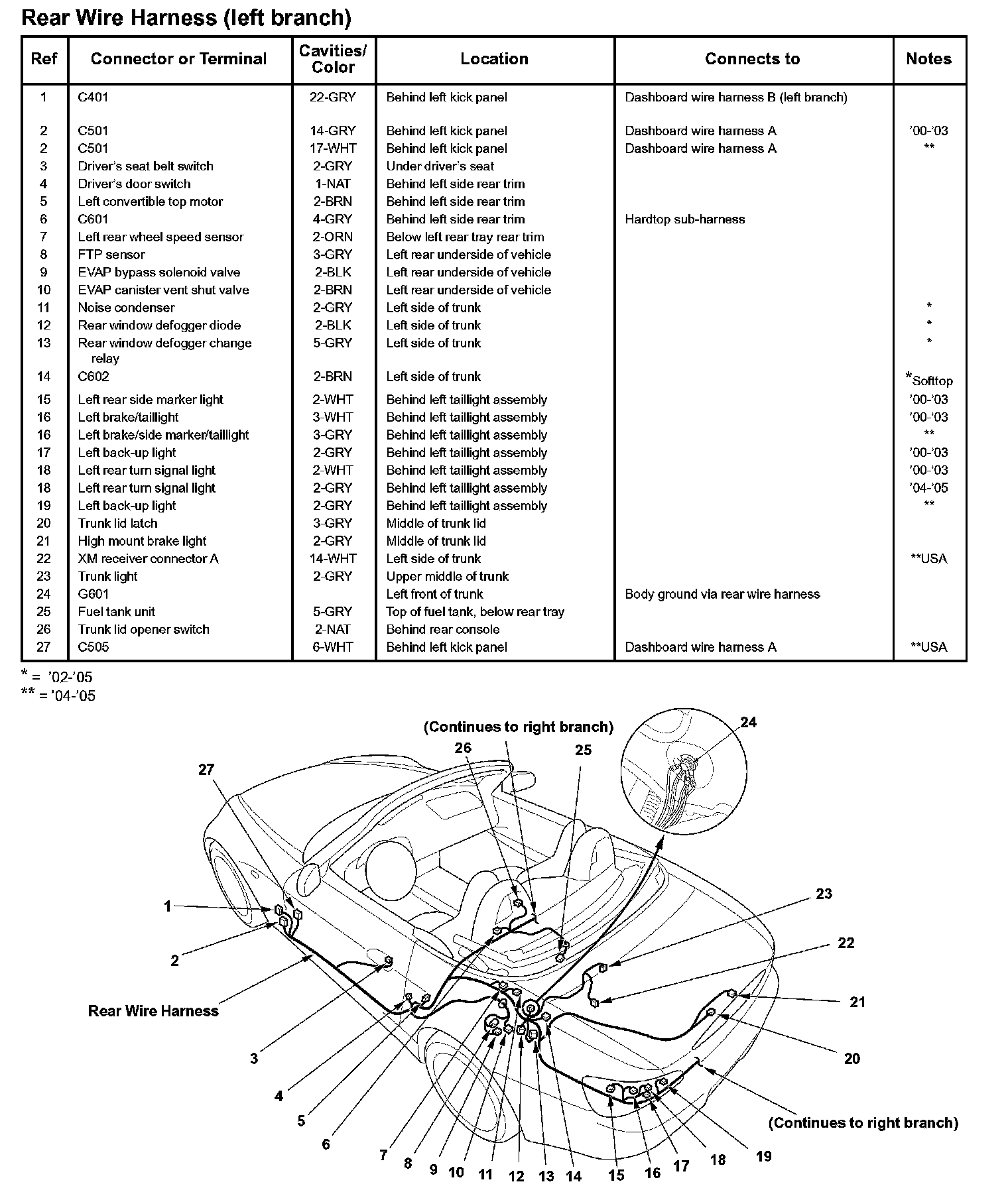

Rear Wire Harness (Left Branch):

Rear Wire Harness (Left Branch):
