Electrical Diagrams

Exterior Lights - Circuit Diagram (USA '04 Model):

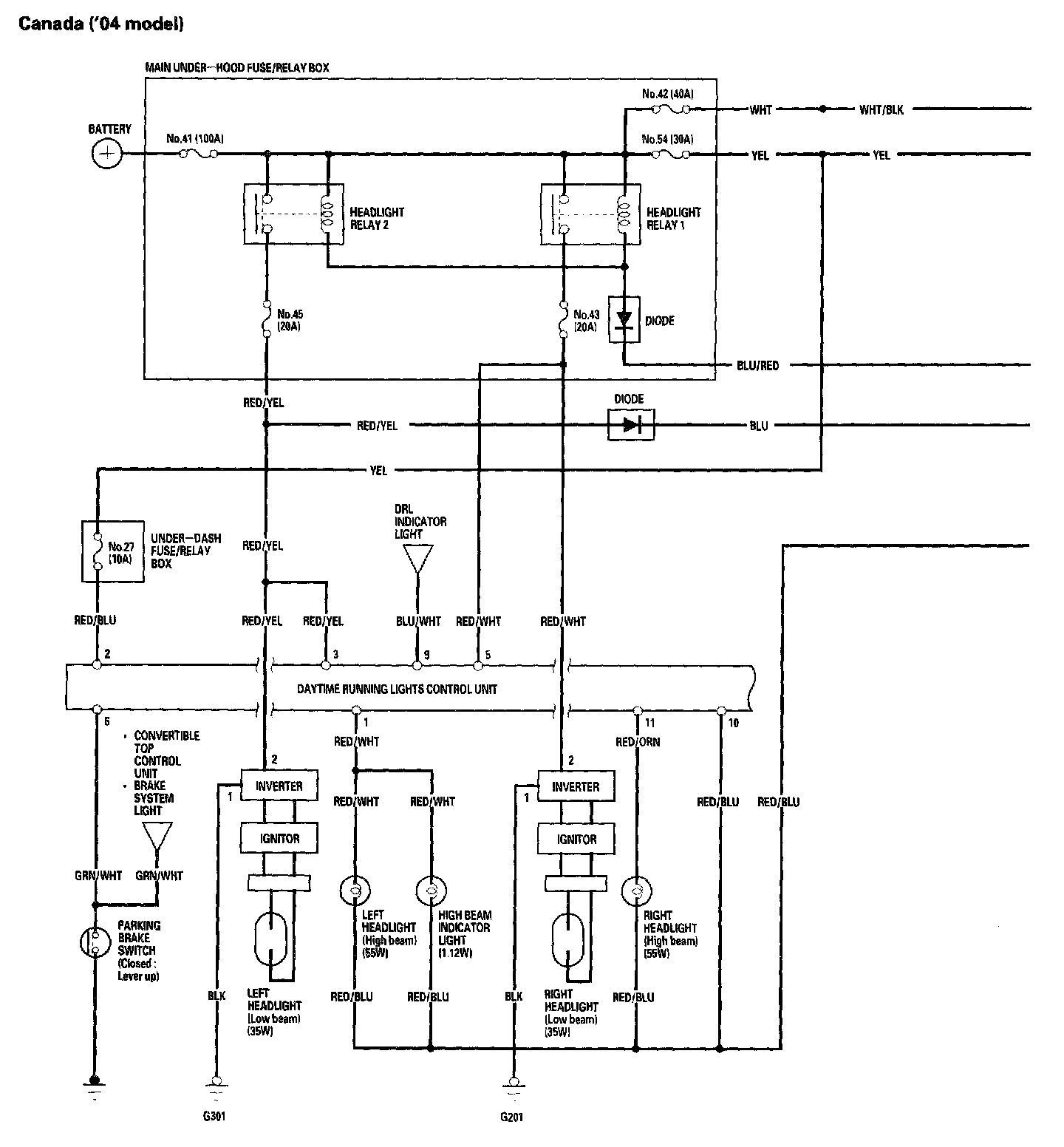

Exterior Lights - Circuit Diagram (Canada '04 Model) Part 1:



Exterior Lights - Circuit Diagram (Canada '04 Model) Part 2:
