Left-Side Engine Compartment Wire Harness
Left-Side Engine Compartment Wire Harness

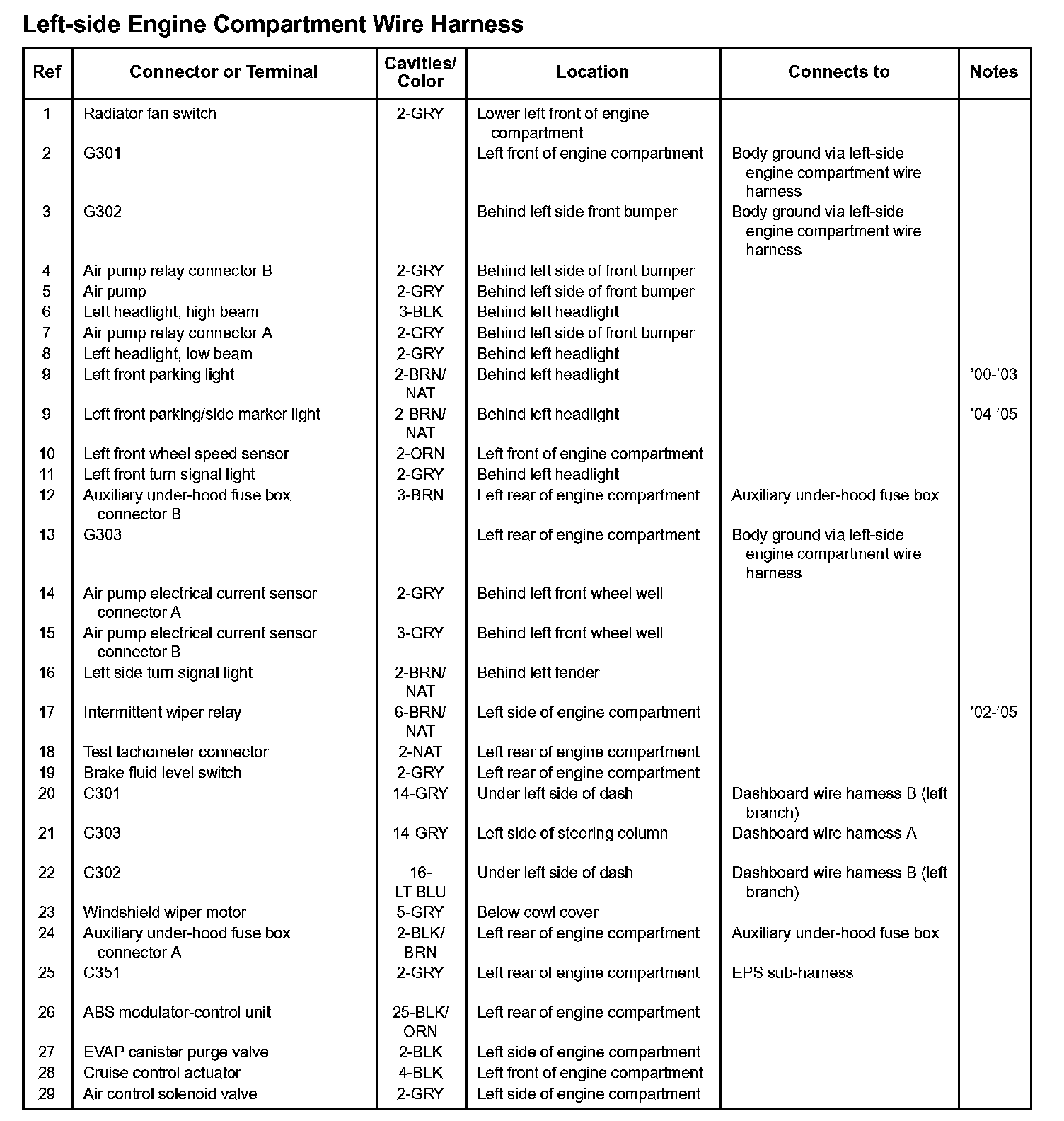

Left-side Engine Compartment Harness:

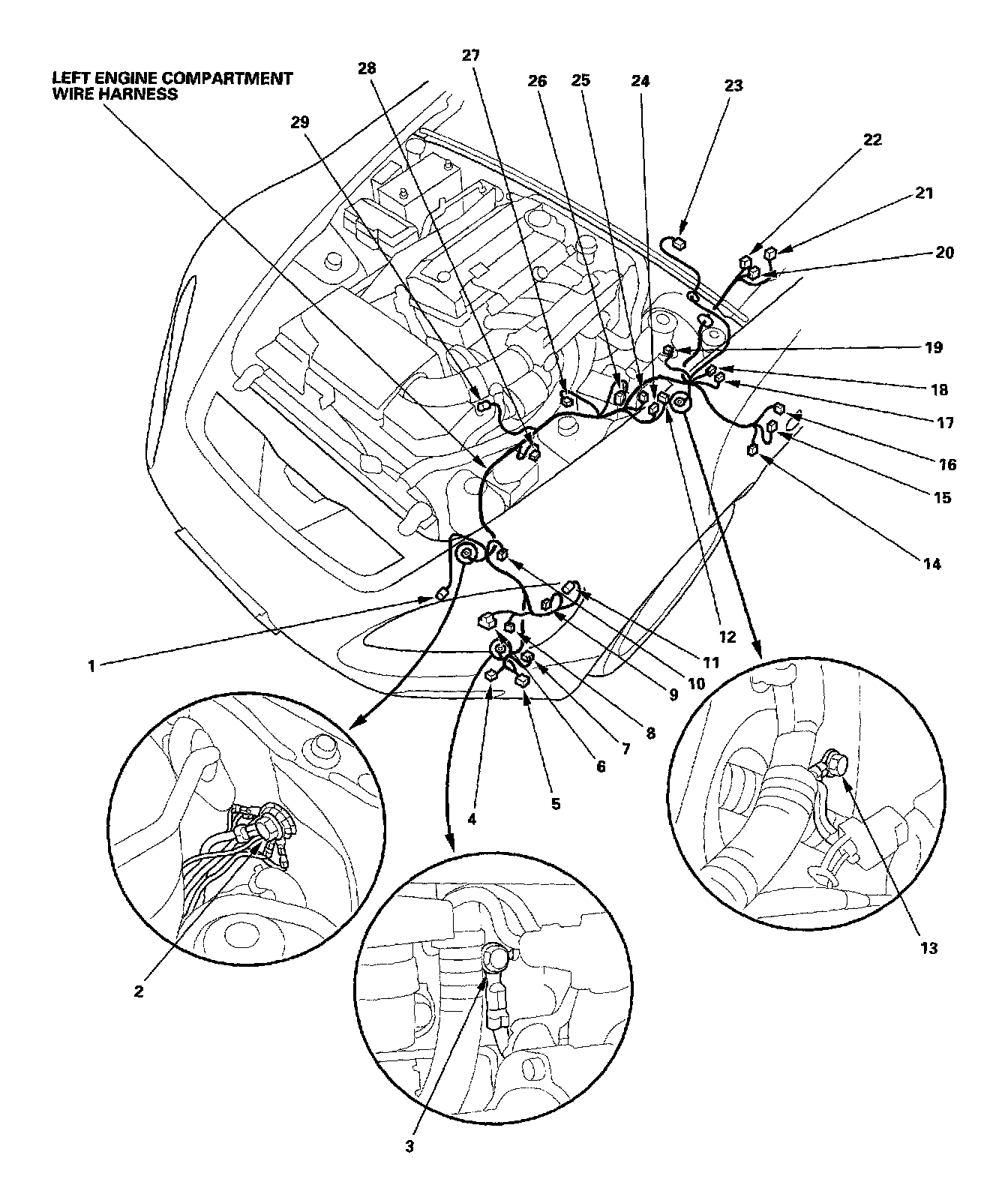

Harness Location View:
Left Engine Compartment Wire Harness:

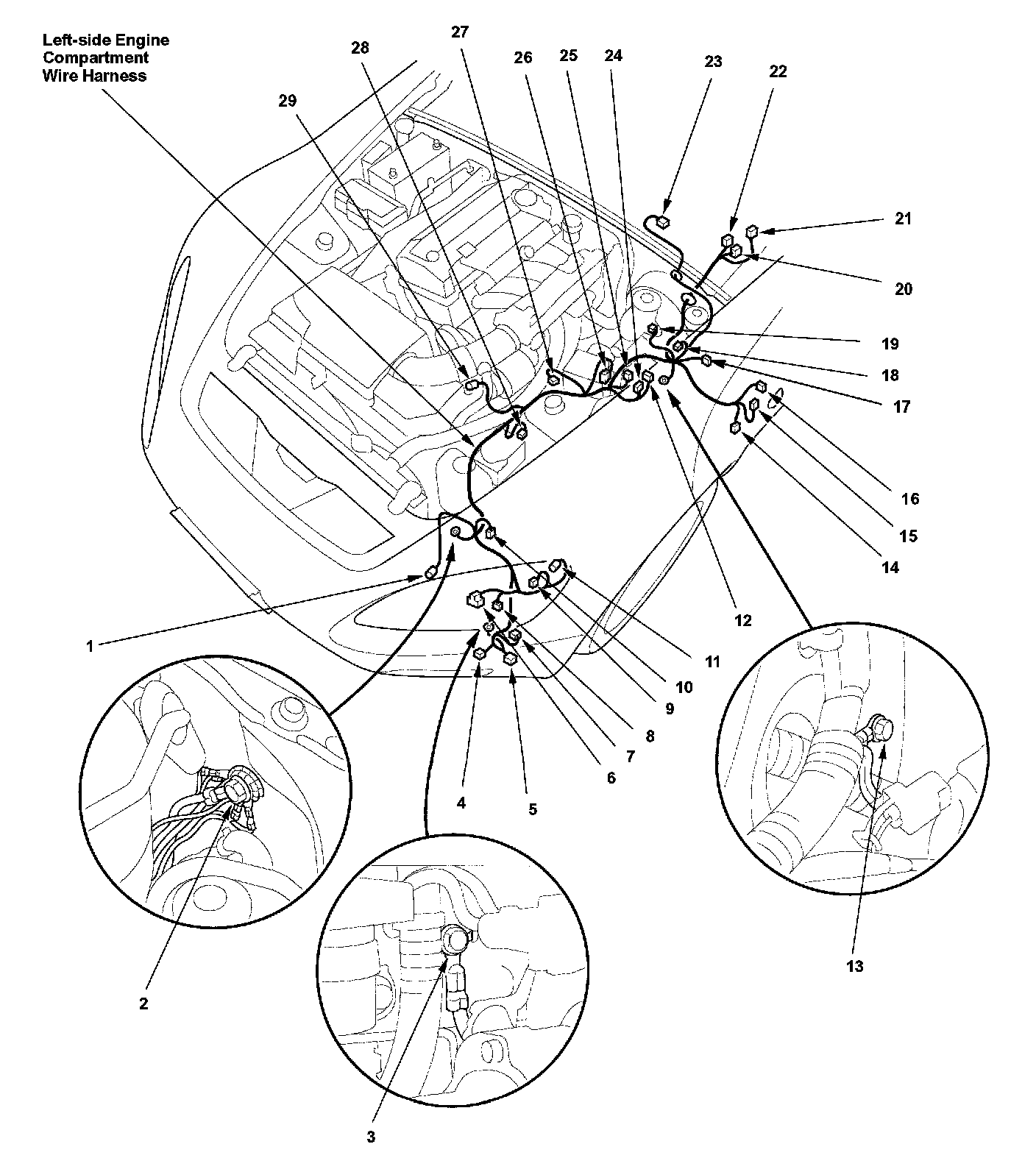

Harness Location View:
